Handheld Transmission X-Ray Imager
PXT Handheld X Ray Imaging System

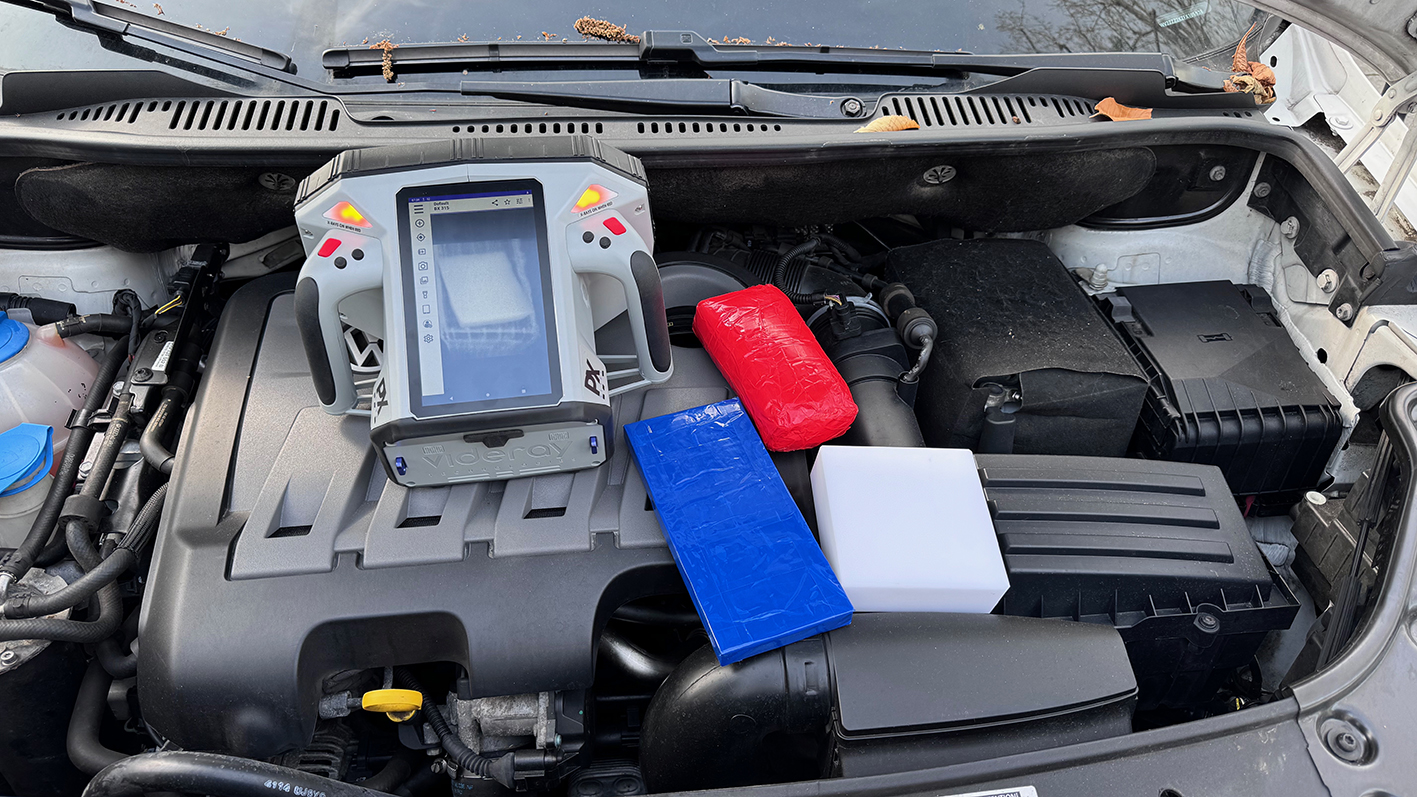

The PXT (by Videray, distributed by unival group)) is marketed as the 'most powerful handheld transmission X-ray imager' available. Unlike backscatter devices (like the PX Ultra) that read reflected X-rays, this is a transmission system, meaning it works in conjunction with a detector panel (MTP+) placed behind the object to create an image similar to a medical X-ray or airport baggage scanner. It combines the power of traditional large box scanners into an ultra-portable, 'point-and-shoot' handheld format with an embedded touchscreen
Technical & Functional
Key Features
High Penetration
Inspection Depth Capability

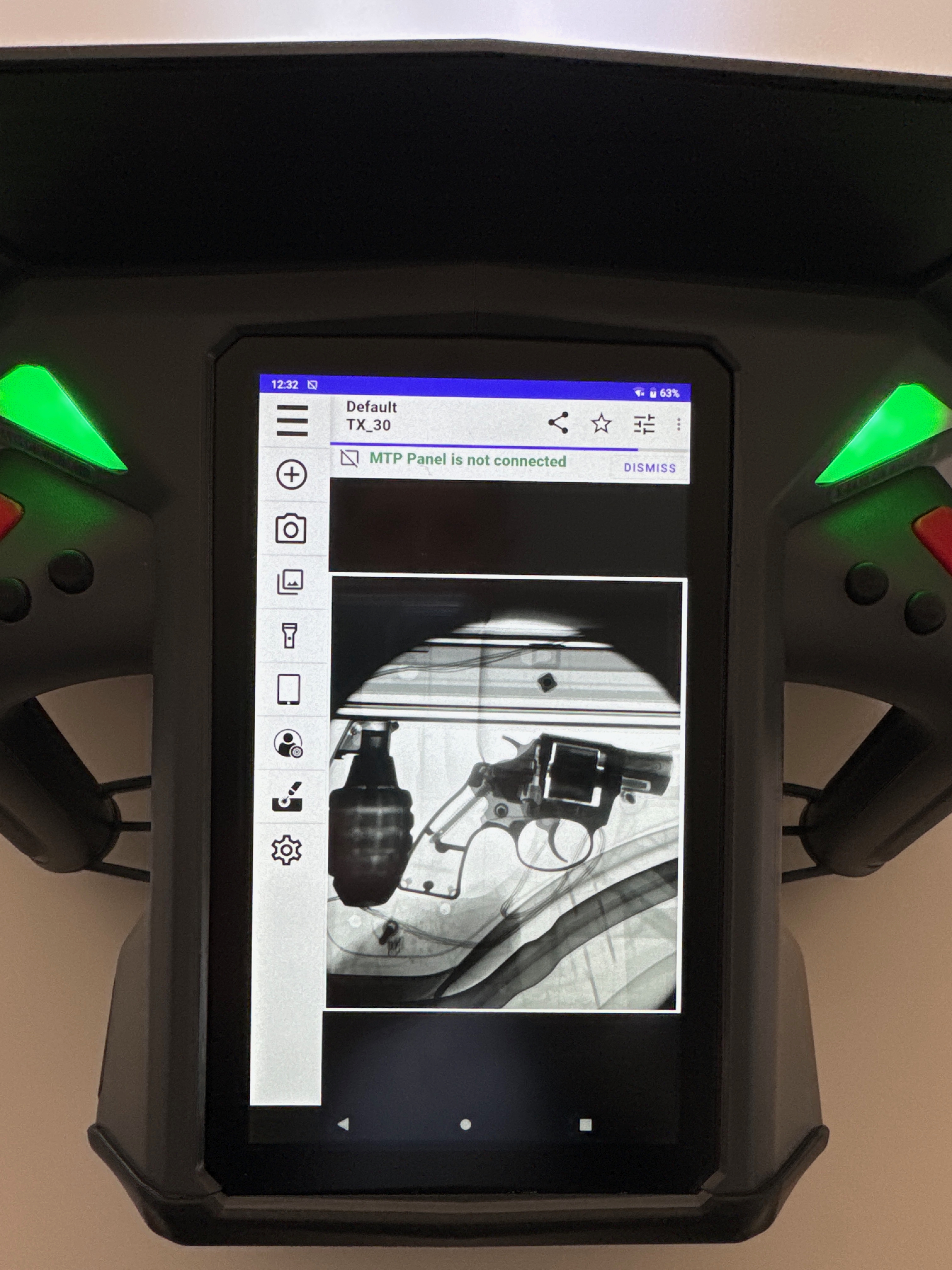

Embedded Touchscreen
Integrated Display
Benefits & Applications
Client Benefits
- Maximum Performance: Offers the power of a stationary box scanner in a lightweight (3.63 kg) handheld package.
- Rapid Deployment: Allows for inspection anywhere in seconds without needing to move objects to a fixed scanner or set up heavy, unshielded portable generators.
- Operator Safety: The built-in shielding allows the operator to hold the device safely during operation, unlike traditional portable X-ray sources that often require the operator to stand back.
- Ease of Use: 'Point and shoot' simplicity with quick-action buttons on the handles and a familiar smartphone-like interface.
- Connectivity: 4G/5G compatible (with hotspot) for instant data sharing and remote support.
Use Cases
- EOD / Bomb Squads: Inspecting suspicious packages or IEDs with high-resolution transmission imaging to see internal circuitry and components.
- Customs & Border Control: Deep inspection of vehicle tires, panels, and cargo where backscatter might not penetrate deep enoug
- Forensics: Examining items at crime scenes without disturbing them.
- Industrial Inspection: Checking welds, pipes, or mechanical assemblies for internal flaws.
- Security Checkpoints: Screening unattended bags or items in high-traffic areas.
Integration & Compatibility
- Panel Options: Compatible with MTP+ wireless transmission panels in two sizes (14x17 in and 10x13 in).
- Data Export: Flexible image export options via USB, WiFi, or Bluetooth.
- Software: Supports Over-The-Air (OTA) software updates to keep the system current.
Deployment Options
- Ultra-Portable: The scanner weighs only 3.63 kg (10.1 lbs) and fits in a carry-on sized transport case.
- Power: Powered by rechargeable batteries with 4-6 hours of life per battery.
- Environment: Rated IP54 (dust and splash protection) and operates in temperatures from -20°C to 60°C.
Technical Specifications
- System: Handheld Transmission X-Ray
- Steel Penetration: Up to 30 mm
- Tube Voltage: 90-140 kV
- Tube Power: 10 W
- Focal Spot: 0.75 mm
- Display: 7" Color Touchscreen (700 Nit)
- Weight: 3.63 kg (10.1 lbs)
- Dimensions: 19.6 x 28.2 x 18.6 cm
- Battery Life: 4-6 hours per battery
- Operating Temp: -20°C to 60°C
- Ingress Protection: IP54
- Connectivity: WiFi, Bluetooth, USB, 4G/5G capable
- Safety: Built-in shielding, Interlocks, Password protection
- Duty Cycle: Max 180 scans per hour
