Wireless Human Presence Detection System

MICROSEARCH G4.0 WIRELESS HUMAN DETECTION SYSTEM

The G4.0 Wireless system is a specialized security inspection tool designed to detect individuals hiding in vehicles or containers by sensing the minute vibrations caused by a human heartbeat. The wireless version offers maximum flexibility and ease of deployment without the constraints of physical cabling between the sensors and the control unit.

Download

Download PDF

Download

Success
Download link sent to your email!
Technical & Functional

Key Features

MicroSearch® G5.0 Wireless

Wireless Sensor Communication

The G4.0 Wireless system eliminates the need for physical cables between sensors and the control unit by using secure wireless receivers and antenna modules for reliable data transmission during inspections.

Heartbeat Detection Technology

Highly sensitive sensors detect the minute vibration patterns generated by a human heartbeat, enabling the system to identify individuals concealed inside vehicles, cargo compartments, or containers.

High-Speed Data Processing

Sensor data is transmitted to the host computer through a high-speed USB interface, allowing the software to analyze signals quickly and deliver rapid inspection results at checkpoints.

Compact High-Grip Sensors

Lightweight and compact sensor units provide strong magnetic holding power on vehicle surfaces, ensuring stable placement during inspections even in challenging operational conditions.

Touchscreen Control Interface

The system includes an intuitive touchscreen display that allows operators to initiate tests, monitor signal activity, and review inspection results in real time.

Flexible System Configuration

Wireless sensors are fully interchangeable with wired sensors used in previous MicroSearch systems, allowing users to adapt the inspection setup to different operational environments

Reliable Performance in Harsh Environments

The system is designed to operate accurately in demanding conditions including dust, moisture, extreme temperatures, and high traffic inspection areas.

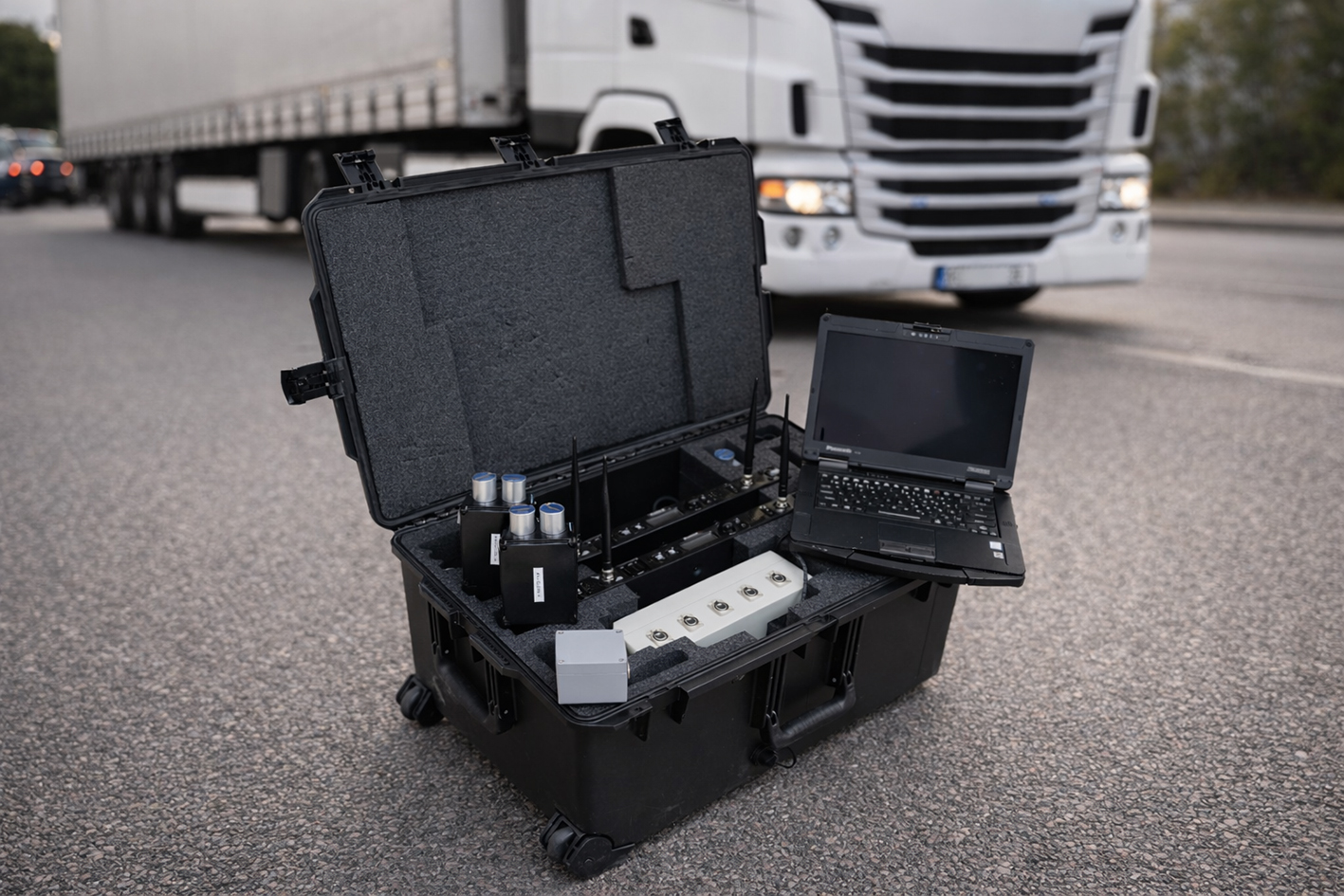

PORTABLE VEHICLE INSPECTION SYSTEM

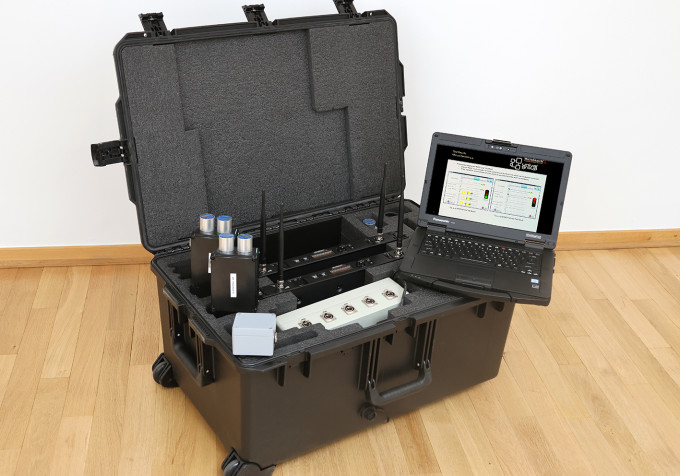

The MicroSearch G4.0 wireless system is delivered as a portable inspection kit including sensors, receivers, control unit, and analysis software for rapid deployment at checkpoints.

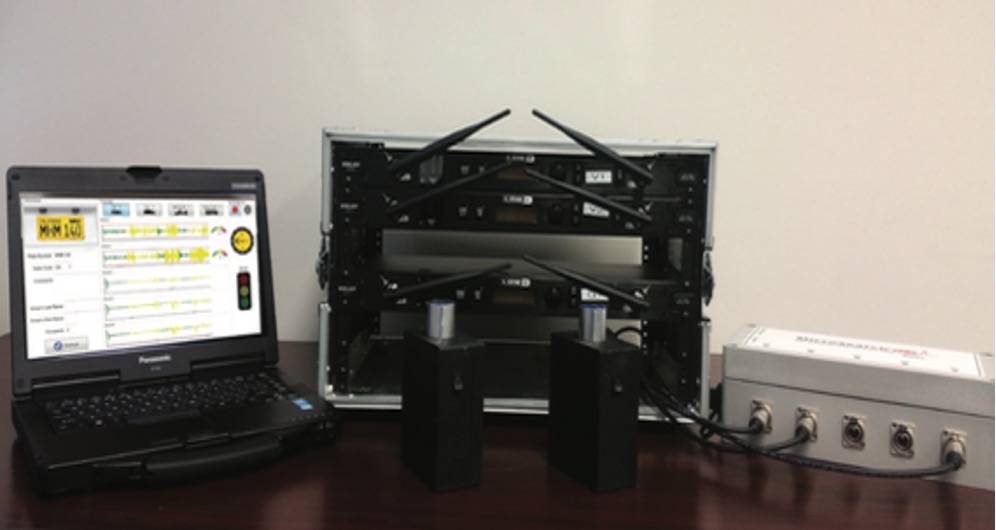

WIRELESS SENSOR RECEIVERS

Wireless receivers collect vibration signals transmitted from the vehicle and ground sensors and forward the data to the control unit for analysis.

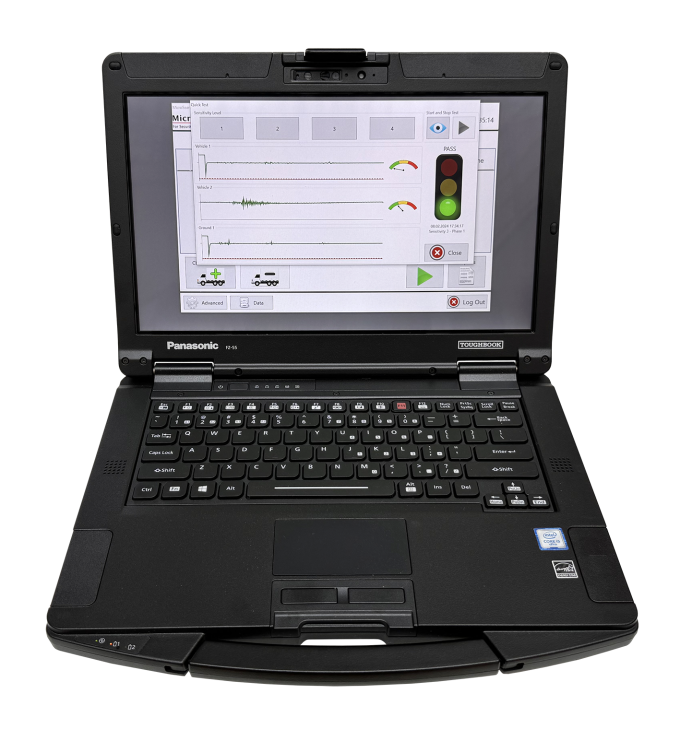

HUMAN PRESENCE DETECTION SOFTWARE

The inspection software processes vibration signals from the sensors and displays real time analysis results, allowing operators to quickly determine if human presence is detected.

CHECKPOINT VEHICLE SCREENING

Security personnel deploy the MicroSearch system to inspect trucks and vehicles at border crossings, detecting hidden persons without using X-ray radiation.

REAL TIME SENSOR SIGNAL ANALYSIS

The system visualizes vibration patterns captured by the sensors, enabling operators to distinguish normal vehicle noise from signals associated with human heartbeat activity.

Benefits & Applications

Client Benefits

  • Operational Flexibility: Wireless sensors allow for rapid setup and inspection in various locations without cable trip hazards or length limitations.
  • High Accuracy: Features lower false alarm rates than competing products, ensuring that security personnel can trust the "Red/Green" traffic light indicators.
  • Cost-Effective: Significantly less capital-intensive than high-energy X-ray or Cargo scanning machines while providing a high level of security against human smuggling.

Use Cases

  • Border Control: Detecting illegal migrants or human trafficking victims in commercial trucks and trailers.
  • Correctional Facilities: Screening outgoing delivery vehicles to prevent inmate escapes.
  • uniXGATE Checkpoints: Integration into permanent vehicle screening lanes for comprehensive security.

Integration & Compatibility

  • Hybrid Capability: The system is designed to be completely interchangeable with wired sensors at any time, allowing for a hybrid setup if required by the environment.
  • Software: Includes a dedicated GUI with wave pattern analysis and automated "Pass/Fail" logic.

Deployment Options

  • Wireless Standard Mode: Includes 3 wireless vehicle sensors and 2 wireless ground sensors.
  • Wireless Enhanced Mode: Includes 3 wireless vehicle sensors and 4 wireless ground sensors for larger vehicles or high-vibration environments.

Technical Specifications

  • Detection Technology: Seismic vibration sensing of human heartbeat.
  • Sensor Type: Wireless vehicle sensors and wireless ground sensors.
  • Wireless Communication: 2.4 GHz license free ISM band.
  • Sensor Range: Approximately 50 m between sensor and receiver.
  • Battery Life: Up to 16 hours continuous operation.
  • Data Interface: High speed USB connection between control box and host computer.
  • Operating Temp.: −20°C to +55°C.
  • Environmental Protection: IP54 rated sensor enclosure.
  • Power Supply: AC 100–240V, 50/60 Hz.
  • System Configuration: Wireless Standard Mode or Wireless Enhanced Mode.
