Standoff Human Presence Detection System

MicroSearch® G5.0 Standoff human detection system

The MicroSearch® G5.0 Standoff Human Presence Detection System is the next-generation, touch-free vehicle sensor designed to detect individuals hiding in vehicles of any size. Unlike previous generations that required physical attachment of sensors to the vehicle, this system uses RF sensor technology to sense the subtle vibrations of a human heartbeat without any physical contact. This 'Standoff' capability enhances inspector safety and portability while maintaining the high accuracy and reliability the MicroSearch brand is known for. It is the only product on the market providing this advanced touch-free capability.

Download

Download PDF

Download

Success
Download link sent to your email!
Technical & Functional

Key Features

MicroSearch® G5.0 Standoff

Touch-Free Detection

Uses a low-power motion detector working in the 24GHz ISM Band to detect vibrations without touching the vehicle.

RF Sensor Technology

Incorporates an RF sensor with custom-designed electronics enclosed in a ruggedized, waterproof housing.

Speed Reduction Enclosure

The sensor is typically deployed in a speed bump-like enclosure (speed reduction device) or can be embedded below the surface.

Backward Compatibility

Fully reverse-compatible with all current system components (Laptop, Software, Control Box), allowing existing customers to upgrade without replacing the entire system.

Rugged Design

Waterproof and protected by high-temperature epoxy and potting compound, making it suitable for outdoor use in all climates (-20°C to 60°C).

Flexible Orientation

The sensor's location and orientation can be changed to view from different angles (below, on top, from the side) to suit specific operational scenarios.

STANDOFF VEHICLE INSPECTION SYSTEM

The MicroSearch® G5.0 enables touch free inspection of trucks and vehicles by detecting the micro vibrations produced by a human heartbeat, allowing operators to screen vehicles safely without attaching sensors.

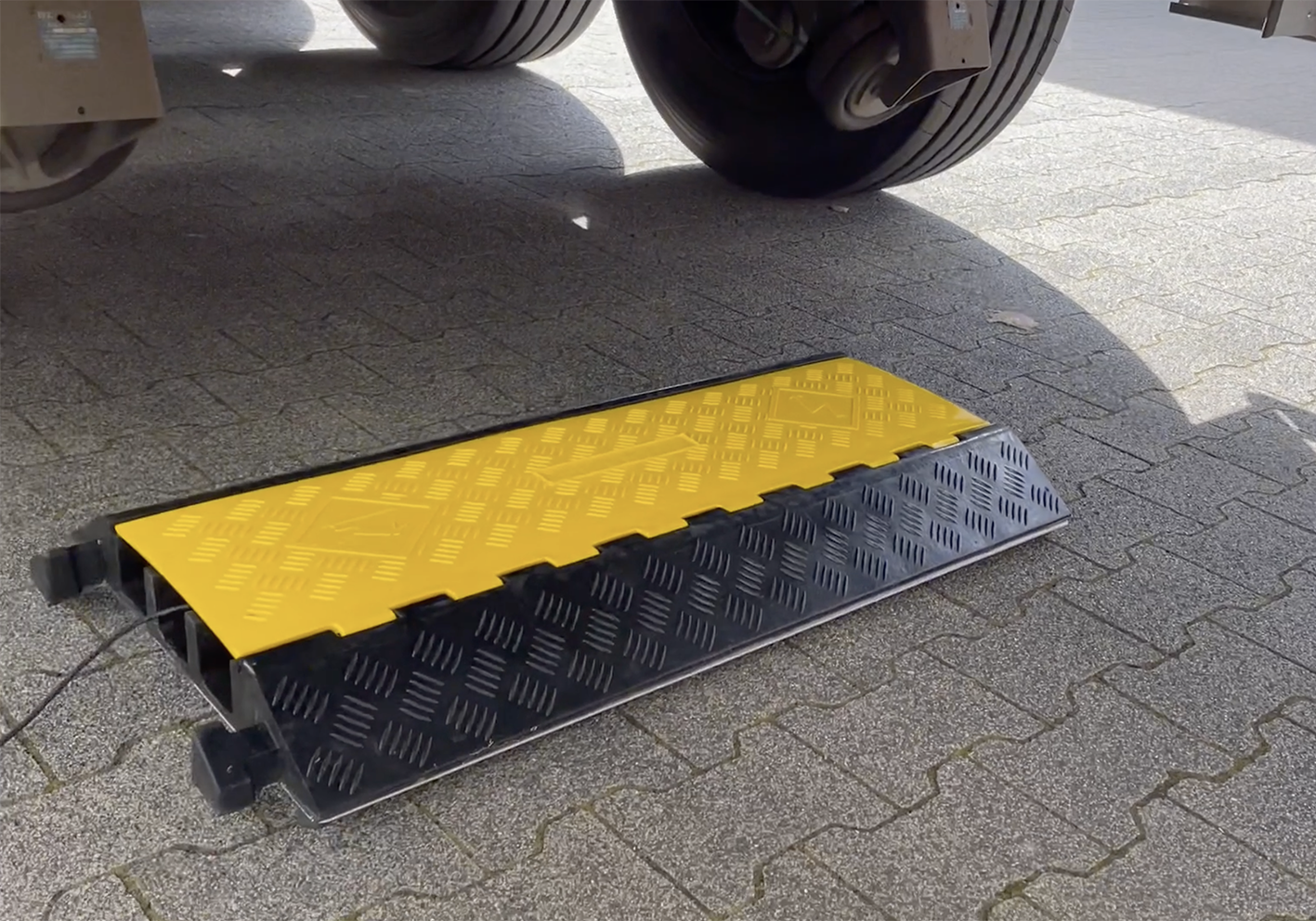

TOUCH FREE VEHICLE SENSOR

The G5.0 RF sensor is deployed inside a speed reduction device that vehicles drive over, enabling hidden person detection without physical contact with the vehicle.

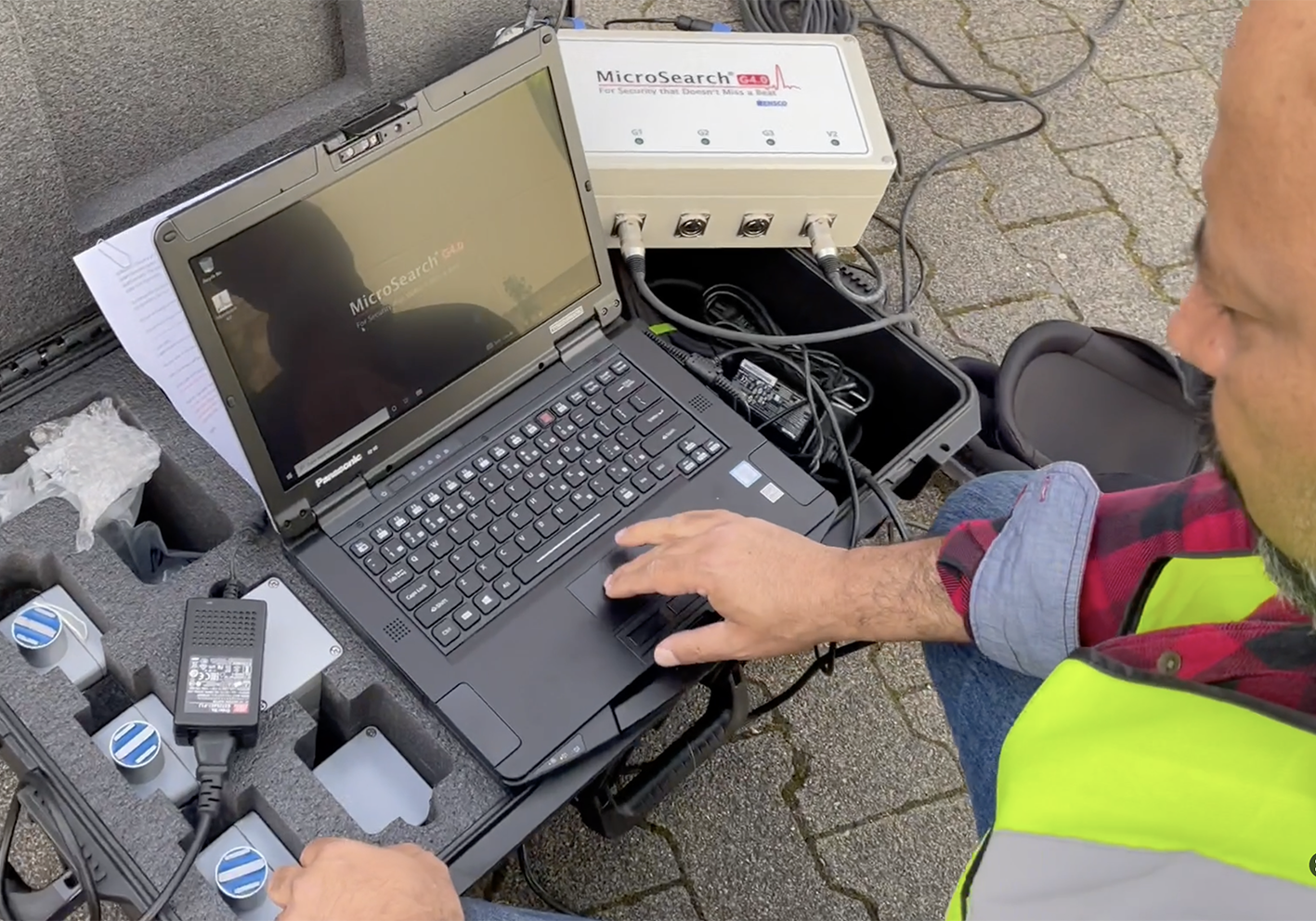

REAL TIME DETECTION ANALYSIS

Inspection data from the standoff sensors is processed through the MicroSearch control unit and software interface, providing operators with clear real time detection results during vehicle screening.

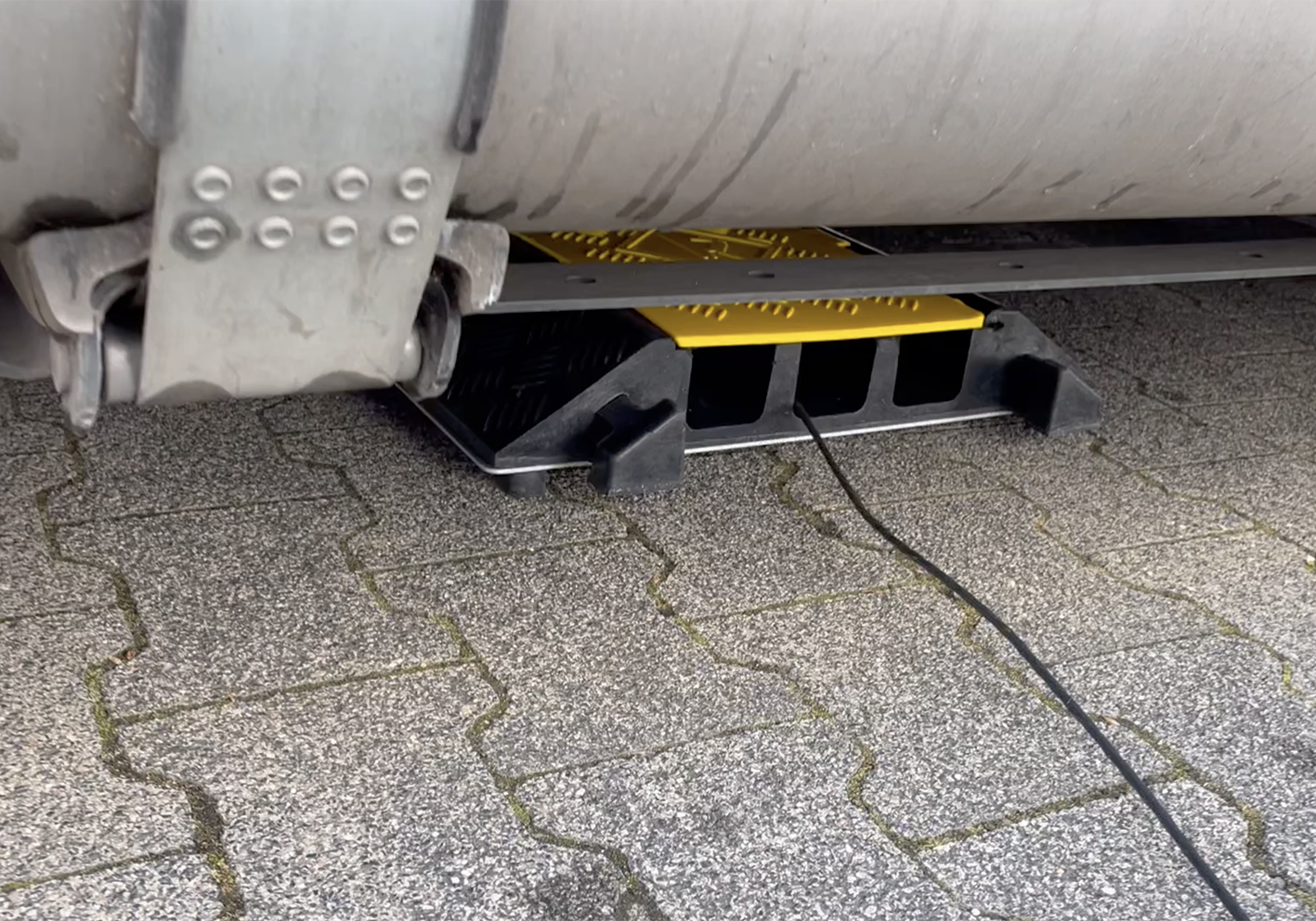

UNDER VEHICLE STANDOFF DETECTION

RF sensors positioned below the vehicle detect subtle vibration patterns associated with human presence, allowing discreet and safe screening at checkpoints and entry control points.

DETECTING HIDDEN PERSONS IN VEHICLES

The MicroSearch system identifies individuals concealed inside cargo areas by detecting the subtle vibration patterns generated by a human heartbeat.

REAL TIME DETECTION SOFTWARE

The MicroSearch software analyzes sensor signals and displays real time vibration patterns, helping operators quickly determine whether human presence is detected inside the inspected vehicle.

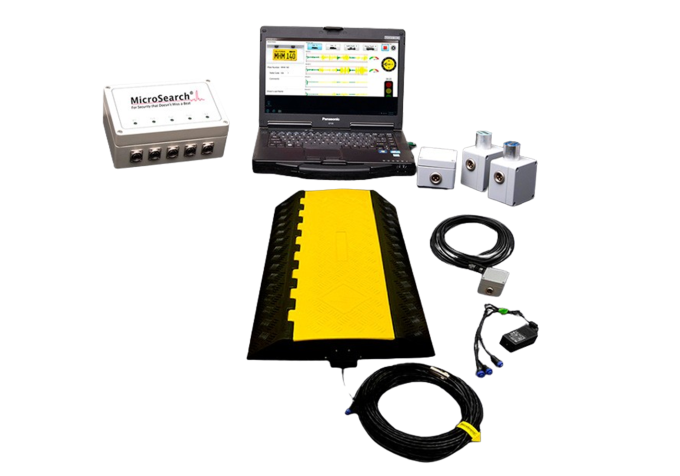

COMPLETE INSPECTION SYSTEM

The MicroSearch system includes the control unit, sensors, cables, and analysis software required to conduct reliable vehicle inspections at checkpoints and secured entry points.

STANDOFF SENSOR PLATFORM

The speed reduction enclosure houses the RF detection sensor, allowing vehicles to pass over it while enabling touch free inspection for hidden persons.

Benefits & Applications

Client Benefits

  • Enhanced Safety: Inspectors do not need to approach or touch the vehicle to attach sensors, keeping them at a safe distance from potential threats.
  • Discretion: Allows for covert inspections where the driver or occupants may not even be aware that a test is being conducted.
  • Operational Efficiency: Requires fewer staff to conduct an inspection since no manual attachment/detachment of sensors is needed.
  • Seamless Integration: Works with existing MicroSearch hardware and software, protecting the client's previous investment.
  • Durability: The speed reduction enclosure can withstand heavy loads (up to 26,000 lbs per axle), ensuring longevity in high-traffic areas.

Use Cases

  • Border Crossings: High-throughput inspection of vehicles where speed and safety are paramount.
  • Correctional Facilities: Inspecting delivery and service vehicles without putting officers in close proximity to potential escape vehicles.
  • Military Bases: Force protection at entry control points.
  • Critical Infrastructure: Securing sensitive sites like power plants and government buildings.
  • VIP Protection: Discreet screening of vehicles entering secure residences or venues.

Integration & Compatibility

  • System Components: Connects to the standard MicroSearch Control Box and Host Computer.
  • Sensor Requirement: Two vehicle sensors are typically connected to the system to conduct an inspection, positioned to accommodate the largest expected vehicle.
  • Software: Compatible with existing MicroSearch software platforms.

Deployment Options

  • Surface Mounted: Deployed inside a speed reduction enclosure (speed bump) that vehicles drive over.
  • Embedded: Can be installed below the road surface for a completely covert and permanent solution.
  • Power: Requires 100 – 240VAC, 50/60Hz power.

Technical Specifications

  • Detection Technology:  RF Sensor (24GHz ISM Band)
  • Sensor Type: Touch-Free / Standoff
  • Dimensions (with enclosure):  38in x 20in x 3in (96.5cm x 51cm x 8cm)
  • Weight Capacity: 26,000 lbs per axle (Speed Reduction Device)
  • Cable Length:  50ft (15m)
  • Power Requirement: 100 – 240VAC, 50/60Hz
  • Operating Temp.:  -20°C to 60°C
  • Storage Temp.:  -20°C to 60°C
  • Protection:  Waterproof, High-temp epoxy/potting compound
  • Compatibility: Reverse-compatible with G3.0/G4.0 components
