Cora 5001
COMPACT RAMAN SPECTROMETER

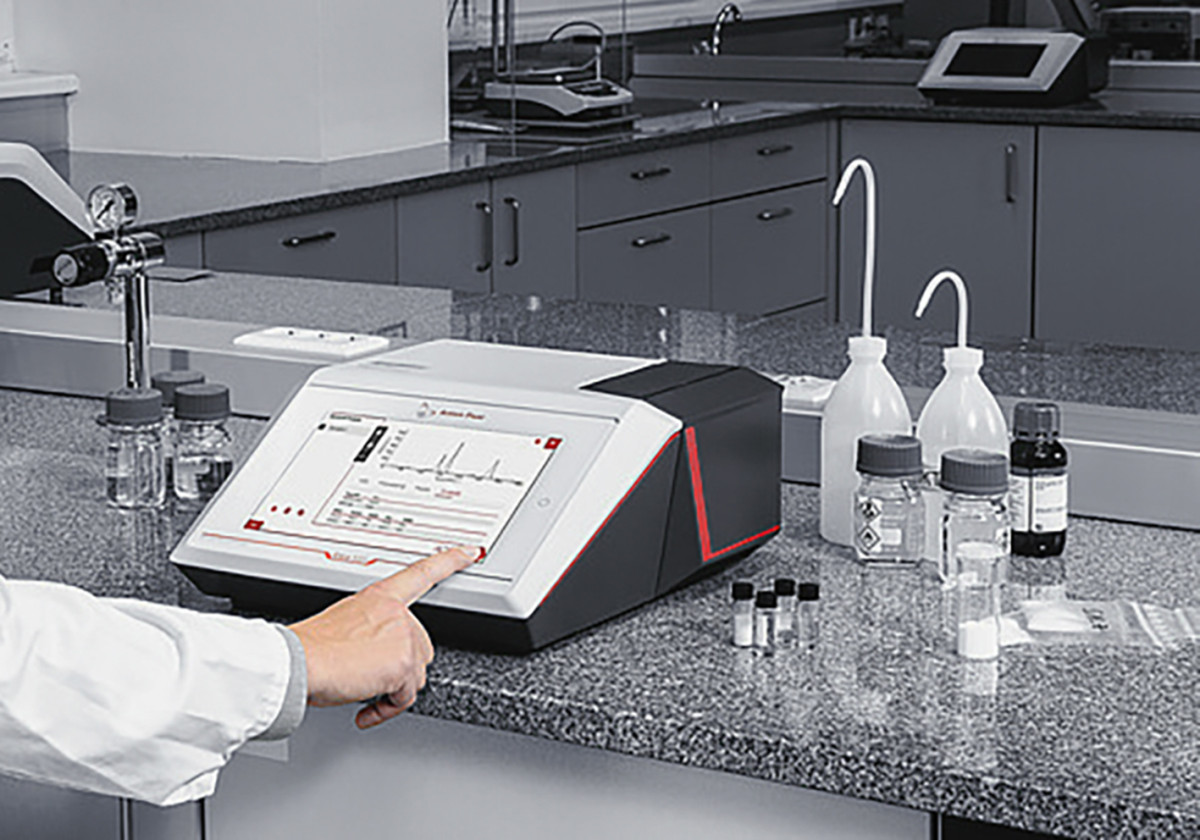

CORA 5001 is a compact Raman spectrometer for rapid identification and verification of substances across laboratory, field, and industrial environments. It enables safe, non-destructive analysis of unknown materials, including through packaging, with clear pass or fail results in seconds.
Using Raman spectroscopy, it identifies chemical compositions based on unique spectral signatures. Guided workflows and an intuitive touchscreen simplify operation, ensuring reliable results without specialized expertise.
Technical & Functional
Key Features
Cora 5001
Cora 5001
Flexible Measurement Setup
Cora 5001

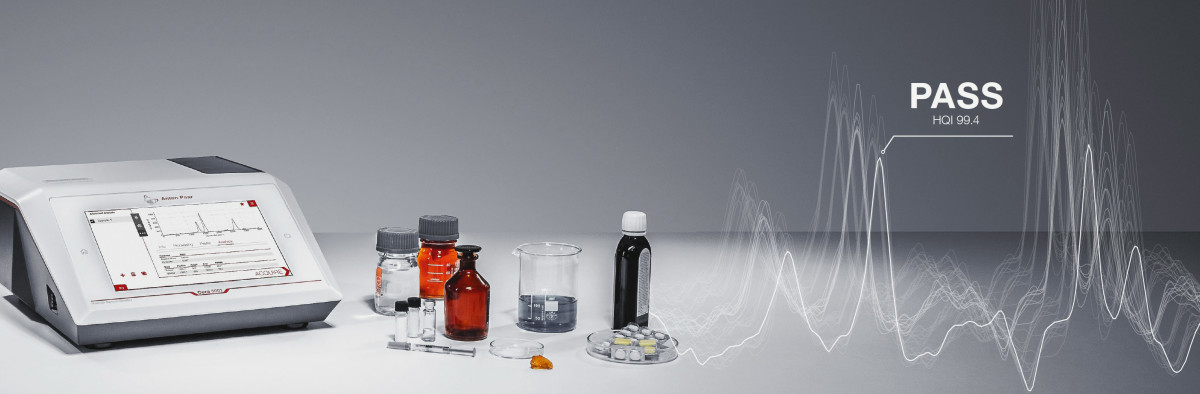

Clear Pass or Fail Results
Cora 5001

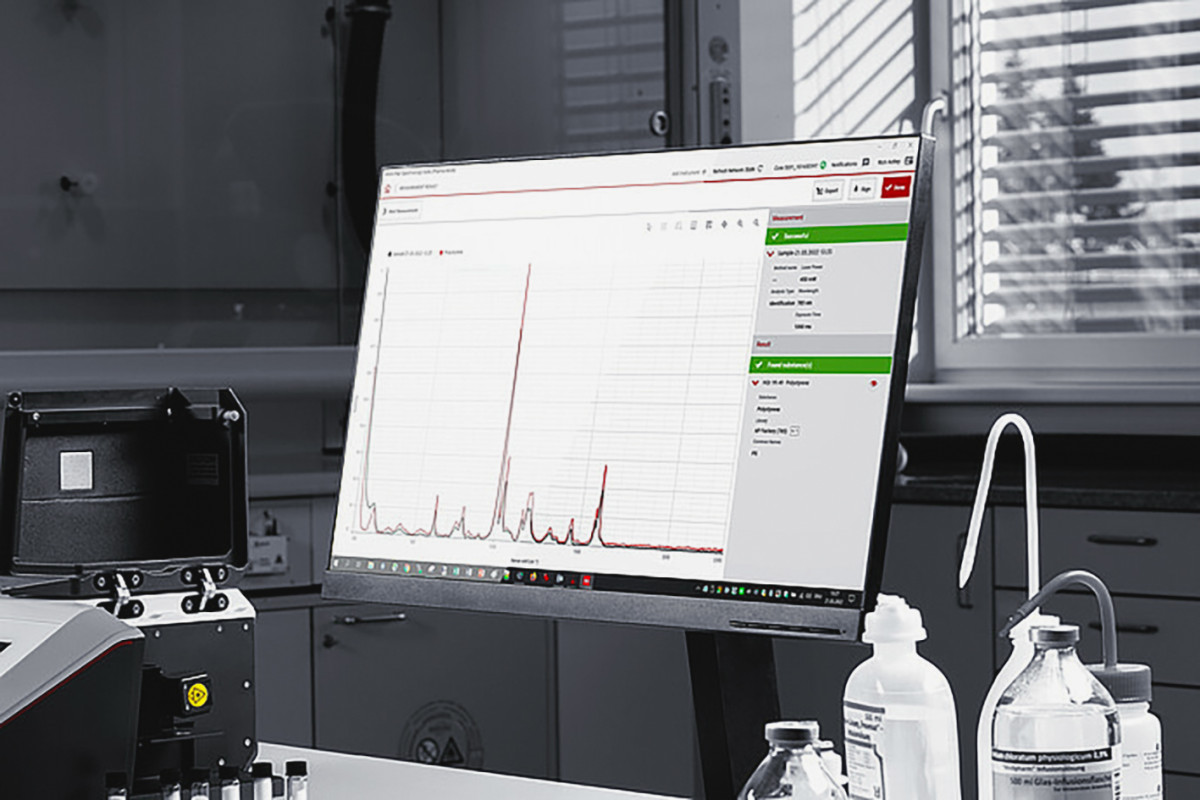

Detailed Spectral Analysis
Cora 5001
Broad Substance Identification
Cora 5001
Laboratory and Field Use
Cora 5001

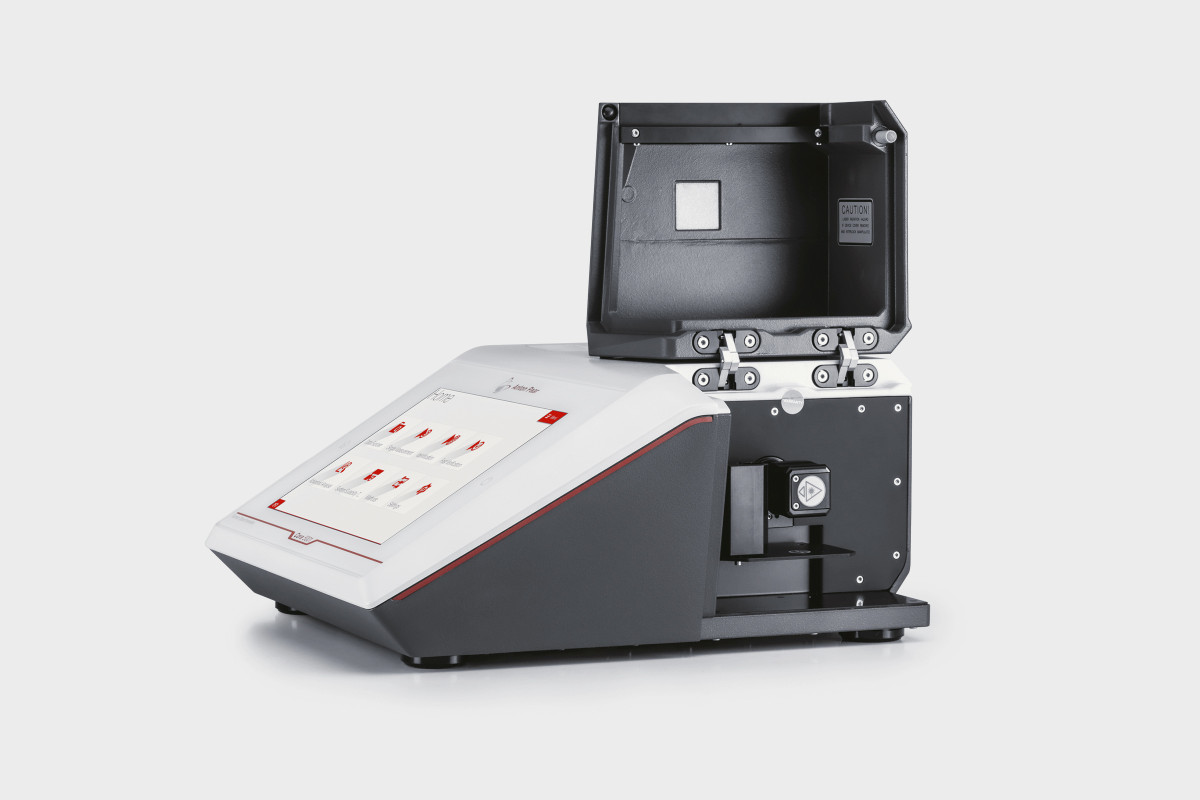

Integrated Measurement Chamber
Benefits & Applications
Client Benefits
- Fast Decisions: Immediate results enable quick response
- Safe Operation: Non-contact measurement reduces exposure
- Reliable Results: Accurate identification using Raman technology
- Easy to Use: Guided workflows remove need for expert training
- Flexible Use: Suitable for lab, field, and on-site applications
- Time Efficient: No sample preparation or complex steps
- Consistent Output: Standardized workflows ensure reproducibility
- Durable Design: Built for continuous use with minimal maintenance
Use Cases
- Police and law enforcement investigations
- Airport and border security inspections
- Customs and logistics screening
- Quality control and incoming goods inspection
- Chemical and pharmaceutical analysis
- Research and development applications
- Hazardous material identification
- Verification of raw materials and finished products
Integration & Compatibility
- Integration with internal and external Raman spectral libraries
- Support for user-defined substance databases
- Compatibility with laboratory workflows and quality control systems
- USB and Ethernet connectivity for data transfer and system integration
- Optional wireless connectivity for remote operation and data sharing
Deployment Options
- Laboratory Use: Bench-top system for controlled environments
- Field Deployment: Portable configuration with optional battery operation

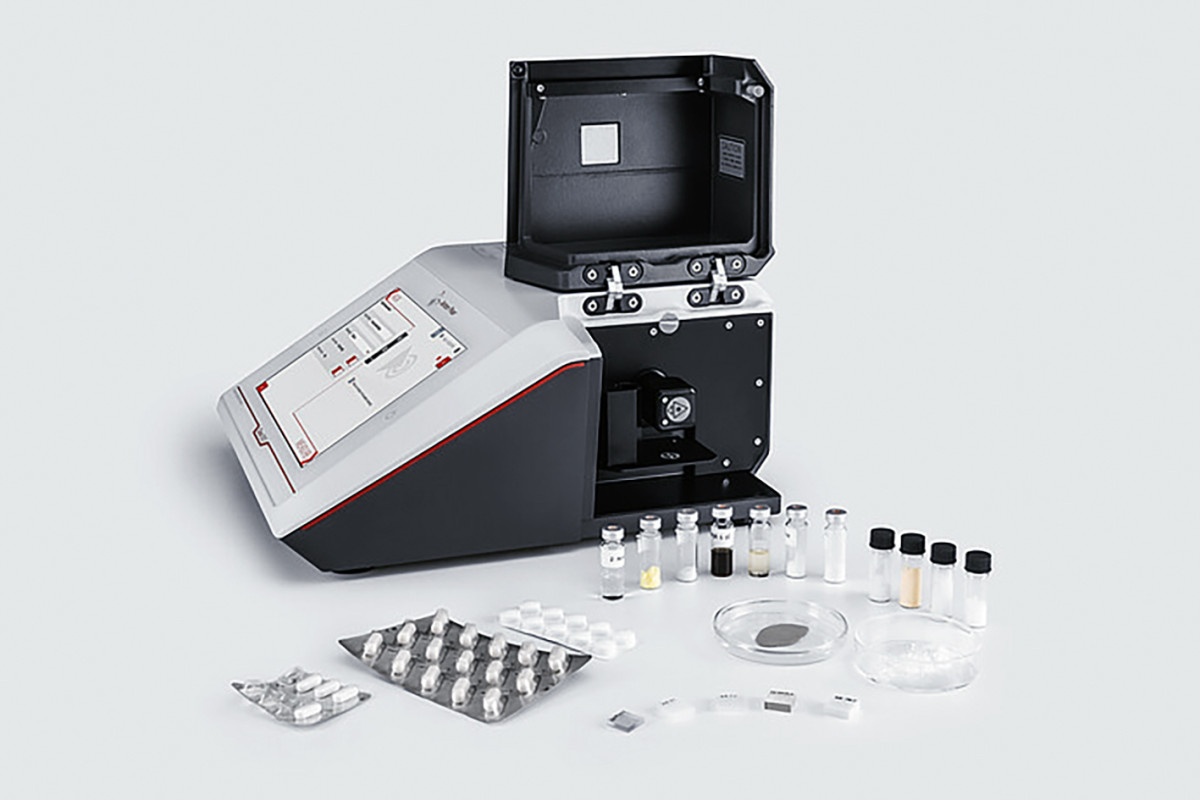

- Direct Measurement Mode: Closed chamber for controlled sample analysis

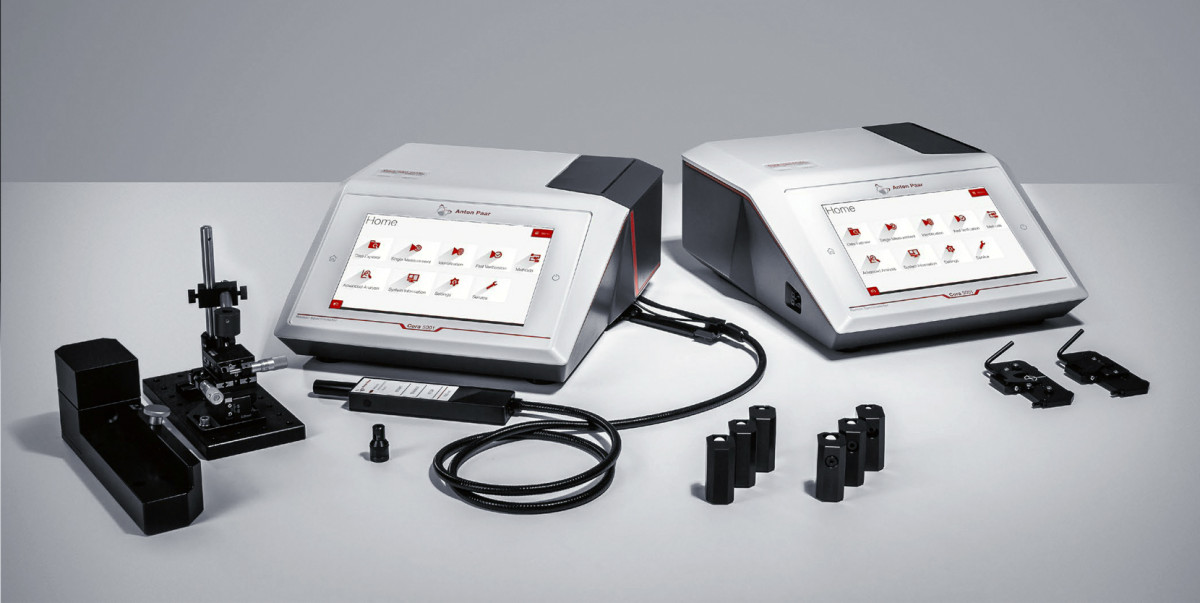

- Fiber Probe Mode: Remote measurement of samples outside the device
- Flexible Setup: Suitable for both fixed installation and mobile use
Technical Specifications
- Technology: Raman Spectroscopy
- Excitation Wavelengths: 532 nm, 785 nm, 1064 nm (single or dual wavelength)
- Spectral Range: 100 cm⁻¹ to 3500 cm⁻¹ (depending on configuration)
- Spectral Resolution: approx. 6 cm⁻¹ to 17 cm⁻¹
- Measurement Time: Results in seconds
- Operation Mode: Direct chamber or fiber probe measurement
- Display: 10” touchscreen interface
- Connectivity: USB, Ethernet, optional WiFi
- Battery Option: Available (portable operation)
- Operating Temp.: 10 °C to 35 °C
- Weight: approx. 9.8 kg
- Laser Class: Class 1 (Direct) / Class 3B (Fiber)
