DRONEWALL cUAS
DroneWall is a modular Counter-UAS solution for drone detection, tracking and visual assessment. It combines 3D AESA radar, electro-optical and thermal imaging, video analytics and command and control. Compatible countermeasure technologies can be assessed for optional integration according to project requirements and authorisations.
By integrating complementary detection, tracking and classification technologies with command and control capabilities, DroneWall supports coordinated airspace surveillance, visual threat assessment and operational response.

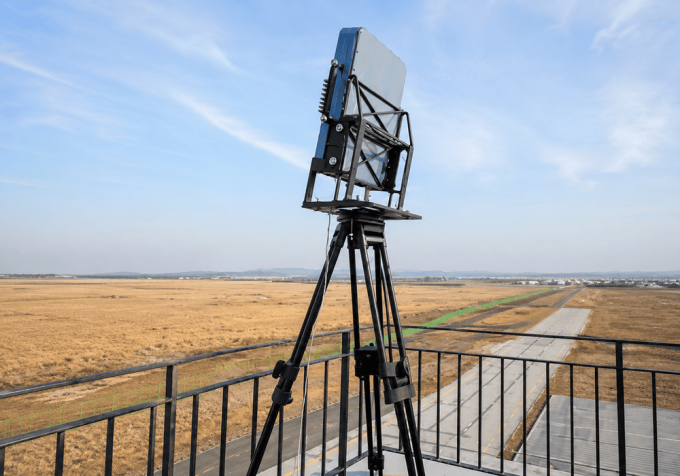

Advanced Radar Detection & Tracking
The DroneWall R Series detects and tracks aerial targets, providing range, azimuth and elevation data for early warning and sensor cueing.
Each panel uses electronic scanning with no moving scanning components. A single panel covers a defined sector; a four-panel configuration provides 360° horizontal coverage.
Integration with compatible EO/IR sensors supports visual confirmation and target assessment, subject to project configuration and validation.
DroneWall R1.8
Combines advanced 3D AESA radar technology with electronic scanning to support accurate detection and tracking of small aerial targets.
- Compact radar for local detection coverage
- Micro drone detection range of up to 1.8 km.*
DroneWall R3
Provides 3D radar surveillance with electronic scanning and continuous target tracking to support monitoring across extended security areas.
- Radar for extended site detection coverage.
- Micro drone detection range of up to 3.0 km.*
DroneWall R4.5
Uses electronic beam steering and precise target tracking to support airspace surveillance across larger operational environments.
- Radar for wider detection distances.
- Micro drone detection range of up to 4.5 km.*
DroneWall R7
Combines advanced 3D AESA radar technology with electronic scanning and target tracking capabilities to support long range airspace surveillance.
- Radar for long range detection coverage.
- Micro drone detection range of up to 7.0 km.*
EO/IR SENSORS & VIDEO ANALYTICS
DroneWall combines electro-optical and thermal imaging with video analytics to support visual confirmation, classification and tracking of aerial targets.
The DroneWall EO180 EO/IR subsystem combines day/night and thermal imaging, precision positioning and video analytics to support target confirmation and operator assessment.
The subsystem can integrate with radar and command and control systems for coordinated tracking and visual confirmation depending on project requirements.
EO/IR subsystem components

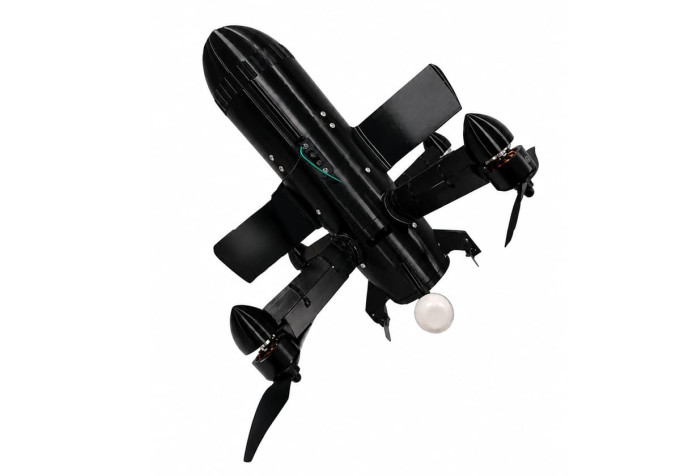

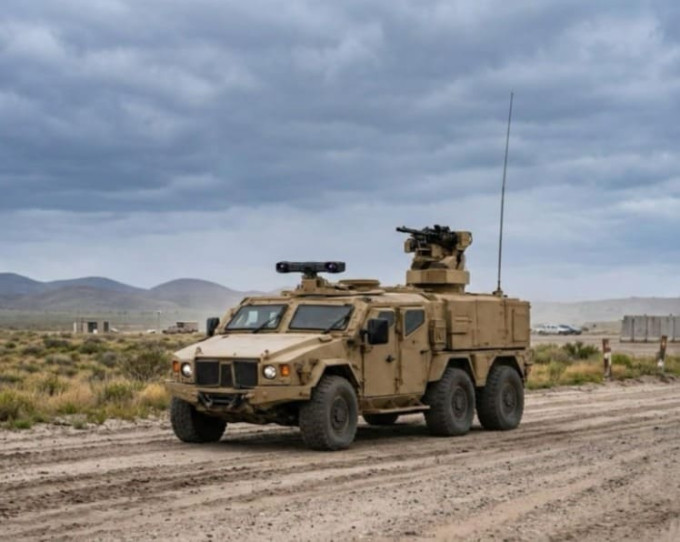

Drone Countermeasures & Threat Response
DroneWall can support the assessment and optional integration of compatible countermeasure technologies.
Response options are selected according to the threat assessment, site conditions, operational procedures and required authorisations. Availability and integration are defined for each project.
Coordinated Detection, Tracking & Response
The DroneWall R Series supplies radar tracks, while DroneWall EO180 supports visual and thermal observation. DroneWall Control provides sensor operation, mapping, alarms and recording; DroneWall Vision adds automated video analysis.
Interfaces and radar-to-camera cueing are validated for the selected configuration. Compatible countermeasures may be included as a project-specific option.
HOW DRONEWALL WORKS
System integration is defined for each project, including sensor data exchange, coordinate handling and radar-to-camera cueing. Interface compatibility and response functions depend on the system configuration and technical validation.
1. DETECTION
2. CLASSIFICATION
3. ASSESSMENT
4. Response

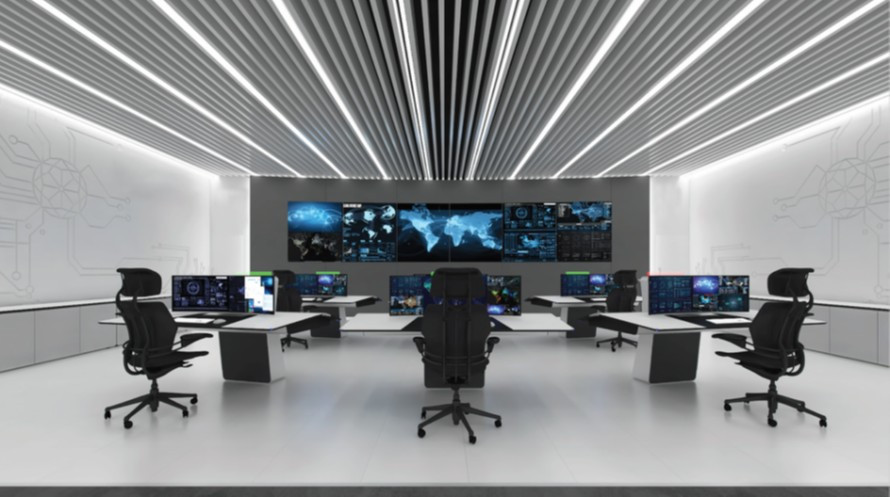

Command & Control Software
- DroneWall CONTROL combines sensor control, live video, mapping, alarms and recording.
- DroneWall VISION adds video detection, classification and tracking.
- External sensor integration is configured and validated for each project.
Benefits & Applications
Key Operational Benefits
- Early detection and tracking of aerial targets
- Visual and thermal target confirmation
- Video analytics to support target assessment
- Improved situational awareness and operator coordination
- Optional integration of authorized countermeasures
- Modular architecture for evolving security requirements
Applications & Use Cases
- Critical infrastructure, including power plants and LNG facilities
- Airports and aviation security
- Ports, logistics and transport infrastructure
- Military bases and security installations
- Government buildings and sensitive facilities
- Border security and surveillance operations
- Temporary security deployments and major events
Deployment Options
- Fixed installations for continuous site monitoring
- Relocatable systems for changing operational needs
- Single-panel or multi-panel radar coverage
- Integrated radar and EO/IR sensor deployments
- Centralised monitoring and operator coordination
- Project-specific configurations for different environments
TAILORED COUNTER UAS SOLUTIONS
unival develops each DroneWall configuration around the site, the expected drone activity and the operator’s requirements.
Sensor selection, coverage planning and integration are defined against agreed performance criteria. Compatible third-party systems and existing security infrastructure can be included following interface assessment and validation.
