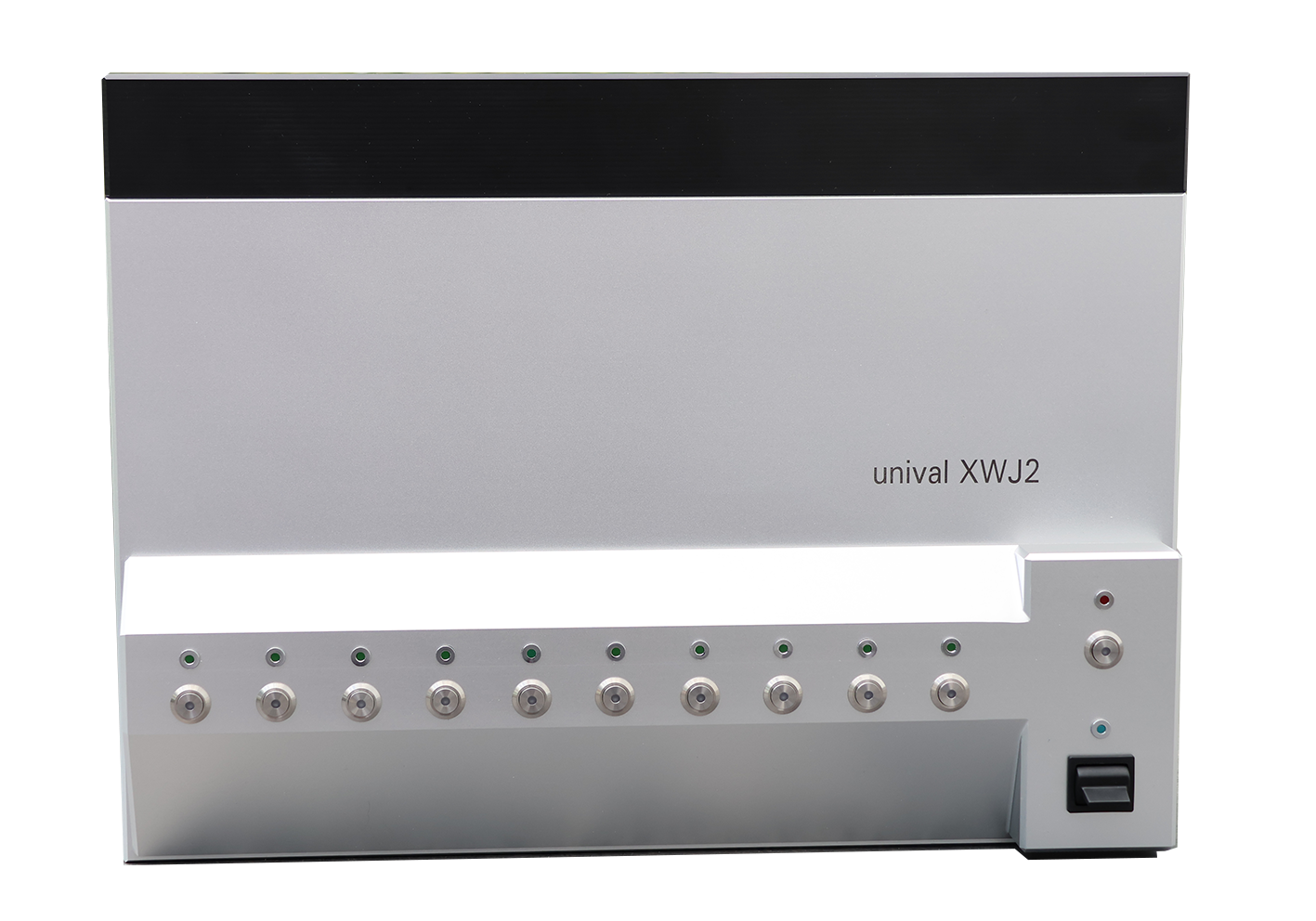

XWJ2-SJC (Conference)
CONFERENCE ROOM JAMMING SYSTEM
XWJ2 SJC (Conference) is a compact indoor RF suppression system designed to protect conference rooms and secured meeting environments from unauthorized wireless communications. The system supports targeted suppression of GSM, LTE, 5G, UMTS, and Wi Fi signals while enabling discreet deployment through a compact modular design.
Integrated with unival Spectrum Guard (USG), the system uses real time RF analysis and local spectrum fingerprinting to optimize suppression profiles for each room while reducing unnecessary emissions.
Key Features
XWJ2-SJC
XWJ2-SJC (Conference)
Conference Room RF Protection
XWJ2-SJC (Conference)

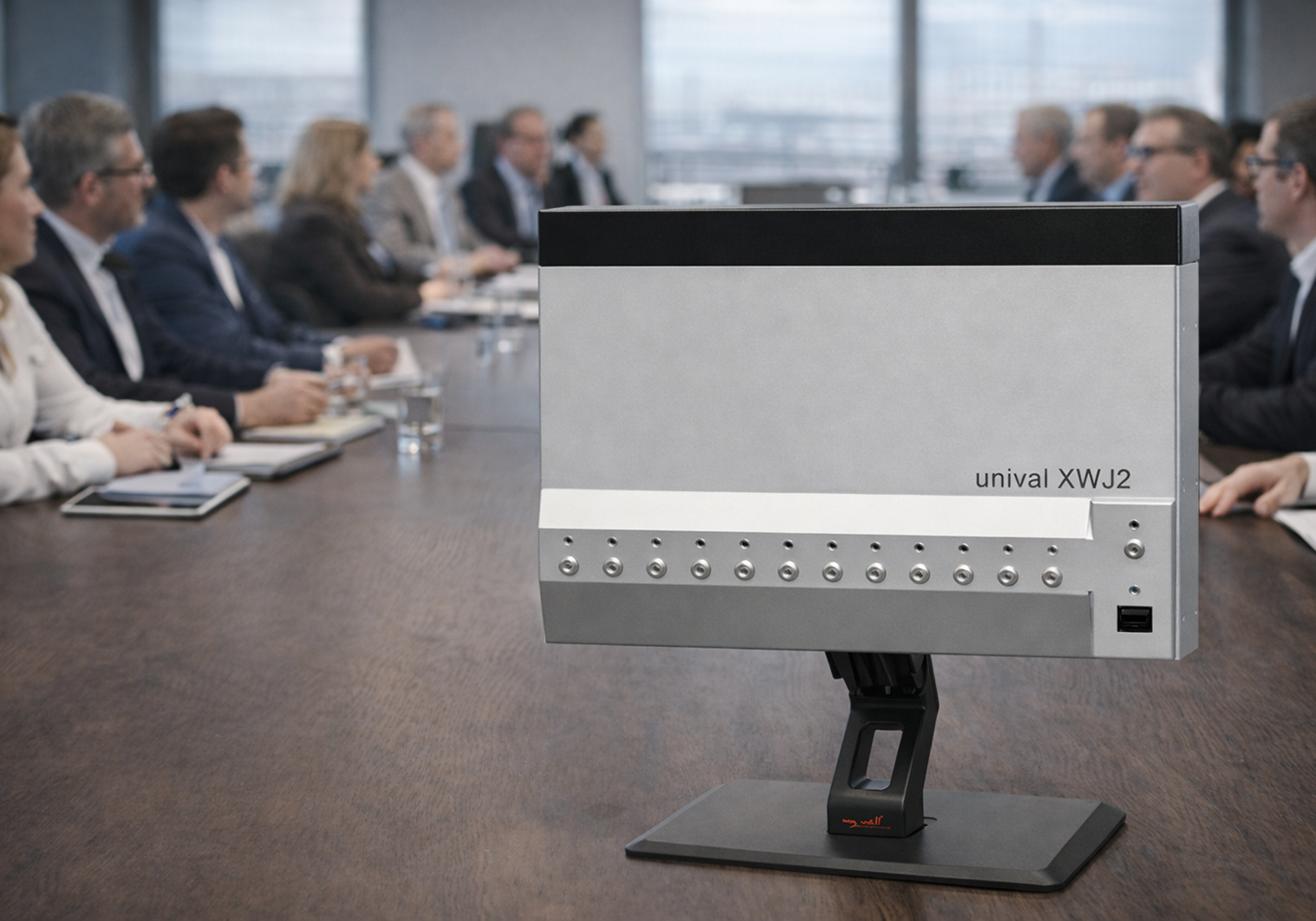

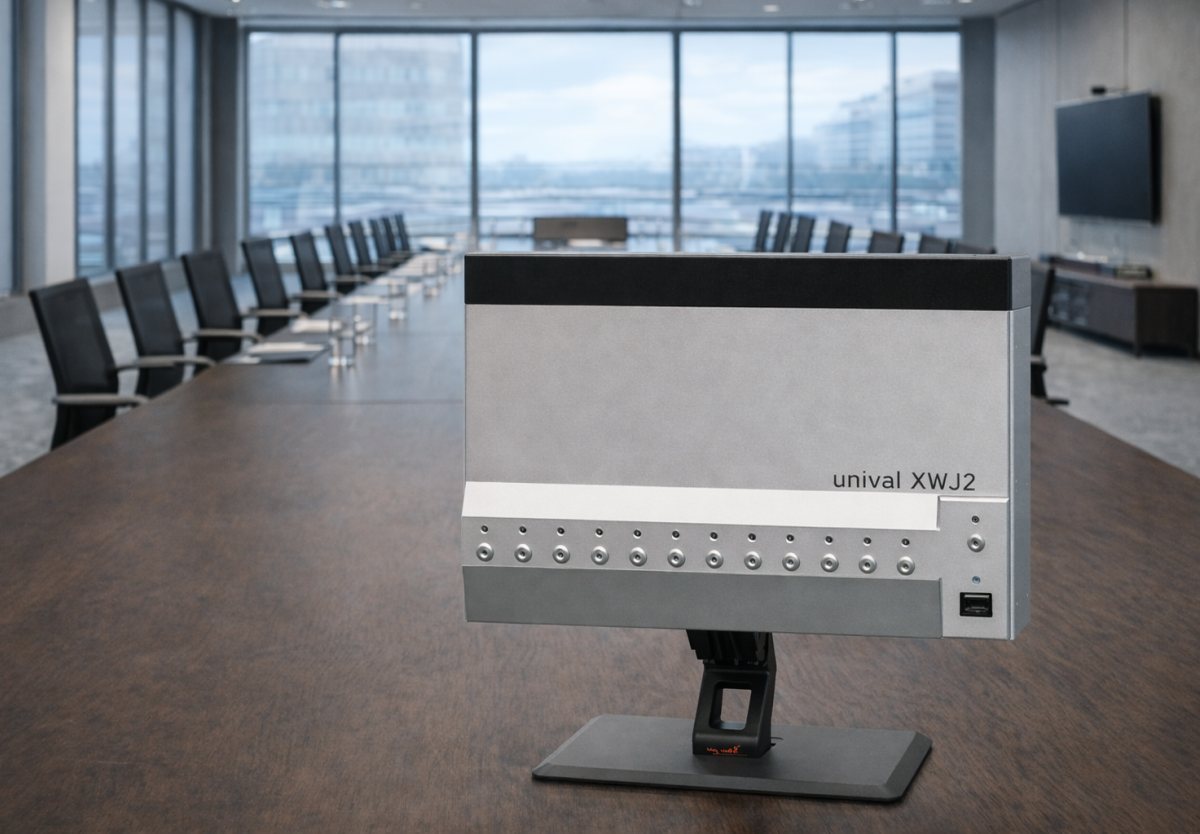

Discreet Meeting Room Deployment
XWJ2-SJC (Conference)
Controlled Wireless Environment
XWJ2-SJC (Conference)

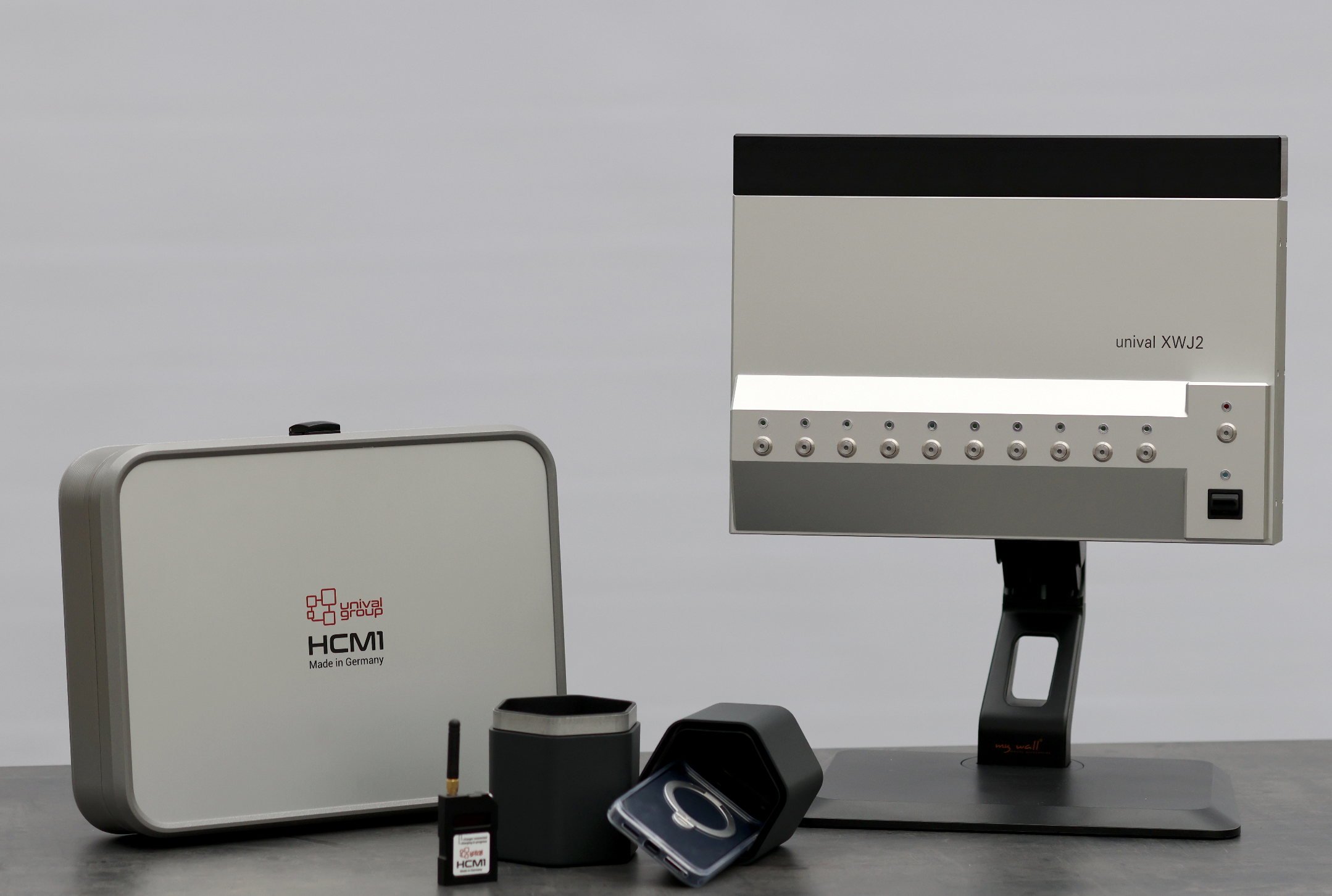

Integrated RF Security Ecosystem
Modular RF Suppression Platform
Benefits & Applications
Client Benefits
- Protects sensitive meetings from unauthorized wireless activity
- Optimized suppression based on the local RF environment
- Silent operation for conference and executive rooms
- Compact design for discreet deployment
- Remote management and real time adjustment capability
- Scalable and future ready modular system
Use Cases
- Executive boardrooms
- Government meeting rooms
- Diplomatic facilities
- Secure conference environments
- Tactical coordination rooms
- Legal and financial meeting spaces
- Corporate strategy sessions
- Sensitive negotiation environments
Integration & Compatibility
- Integrated with unival Spectrum Guard (USG)
- Real time RF analysis and spectrum fingerprint generation
- LAN based remote configuration and monitoring
- Compatible with centralized command and control platforms
- Supports responsive and reactive operating scenarios
Deployment Options
- Fixed conference room installation
- Wall mounted or shelf mounted deployment
- Distributed room coverage layouts
- Standalone or centrally managed operation
- Discreet indoor installation environments
Technical Specifications
- Frequency Range: 25 MHz to 6000 MHz
- Supported Networks: GSM, UMTS, LTE, 5G, Wi Fi
- LTE Support: Bands 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 20, 21, 25, 26, 28, 32, 38, 40
- 5G Support: Channels n1 to n95
- Wi Fi Support: 2.4 GHz and 5 GHz
- Output Power: Up to 2.5 W per module
- Modular Capacity: Up to 10 jammer modules
- Remote Management: LAN connectivity
- Cooling: Passive noise free cooling
- Housing: Unibody anodized aluminium
- Dimensions: 385 × 283 × 73 mm
- Weight: Approx. 3.7 kg
- Integration: unival Spectrum Guard compatible
