XRC 150-165 (200kV) High-Energy Cargo X-Ray Scanner

High-Energy Cargo Scanner

XRC 150-165 (200kV)

PALLET AND CARGO

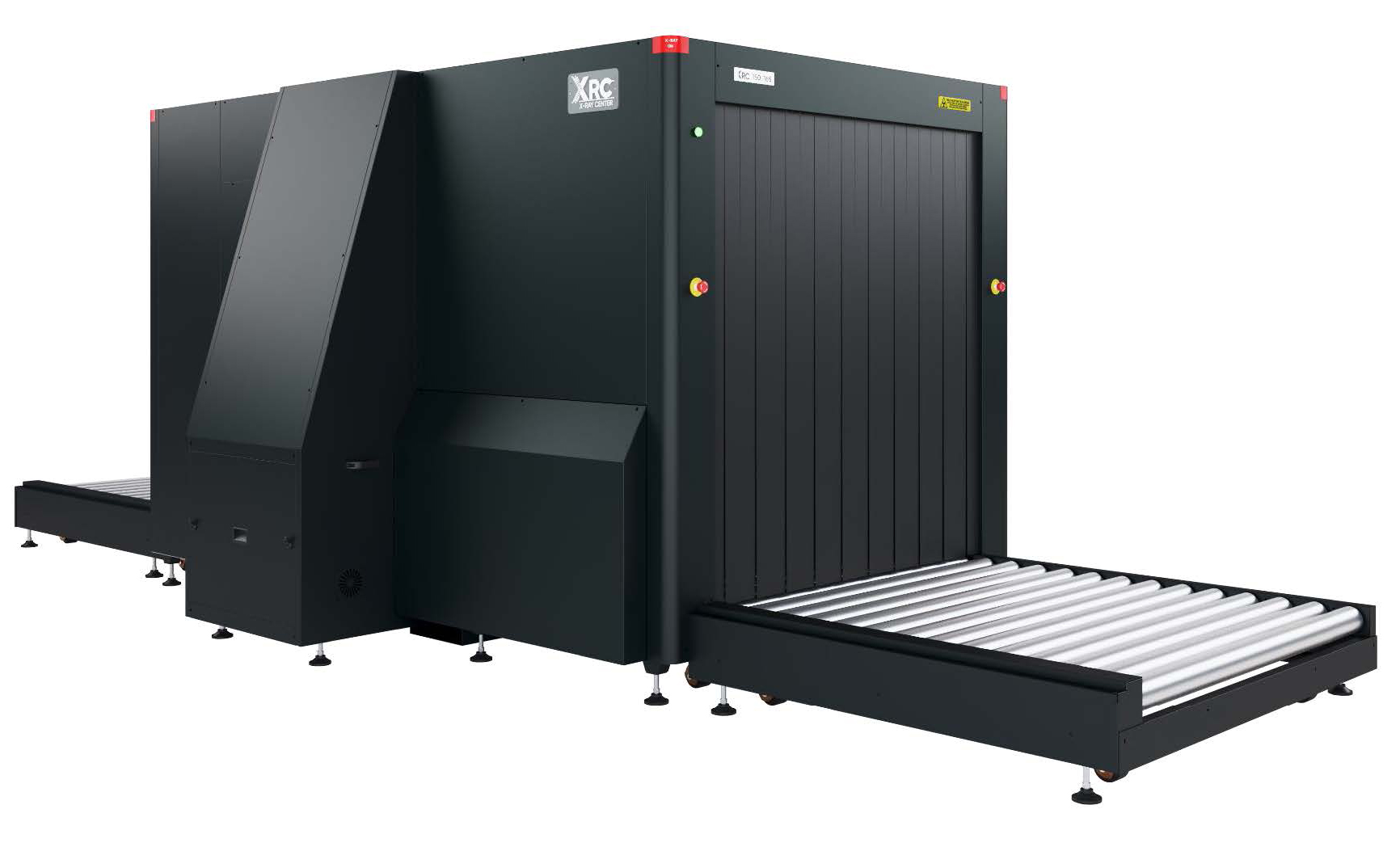

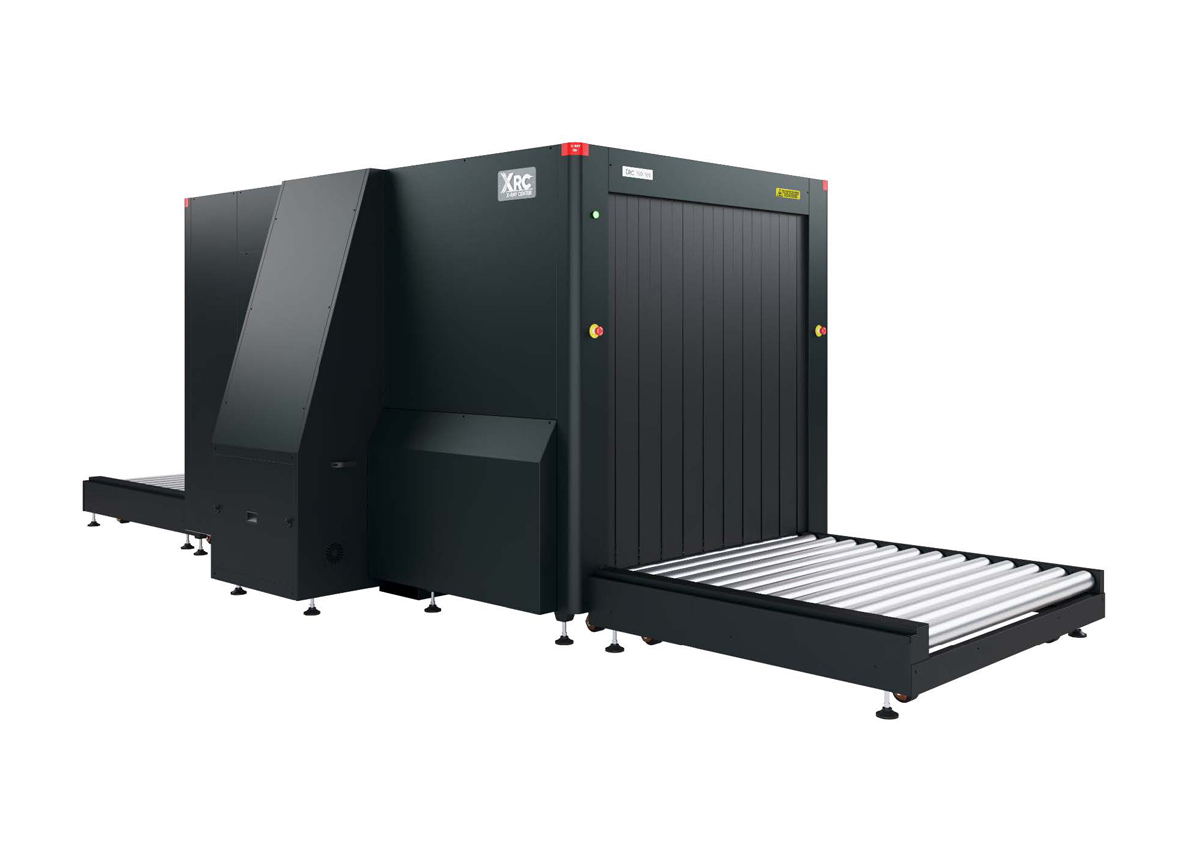

The XRC 150-165 (200kV) is a high-performance transmission X-ray scanner designed for scanning medium to large packages on pallets. Featuring a powerful 200kV generator, this system delivers excellent imaging performance with advanced image processing functions, hazard alarm systems, and best-in-class software. The system is ideal for high-security facilities requiring thorough cargo and freight screening.

Technical & Functional

Key Features

XRC 150-165 (200kV)

Tunnel Size

1,530 mm × 1,655 mm

Anode Voltage

200 kV (operating at 200 kV)

Steel Penetration

50 mm guaranteed; 52 mm typical

Wire Resolution

36 AWG guaranteed; 38 AWG typical

Conveyor Load Capacity

3,000 kg evenly distributed

Conveyor Height

295 mm

Beam Direction

Horizontally sideward

Multi-diode Structure

Organic/Inorganic/Mixed material differentiation

XRC 150-165 (200kV)

High Energy Cargo Screening

High performance 200 kV transmission X ray system designed for screening pallets, freight, and large cargo in high throughput security environments.

XRC 150-165 (200kV)

Large Tunnel Inspection Design

Wide tunnel dimensions, high load capacity, and low conveyor height support efficient screening of dense and oversized cargo with improved operational workflow.

XRC 150-165 (200kV)

Cargo and Freight Inspection

Advanced image processing, high penetration capability, and material discrimination technology support detection of explosives, narcotics, weapons, and concealed threats in cargo shipments.

Benefits & Applications

Client Benefits

High Penetration: 200kV generator provides superior penetration for dense cargo
Efficient Screening: Horizontally sideward beam direction optimizes pallet scanning
Threat Detection: Exceptional accuracy in detecting cutting tools, explosives, and narcotics
Image Quality: Multi-diode structure provides unique color-coded imaging
Operational Efficiency: Reduces error rates and streamlines security screening

Use Cases

Freight companies
Cargo terminals
Airports
Customs facilities
General cargo screening
Distribution centers
Logistics hubs
High-security facilities

Integration & Compatibility

Operating System: Linux
Processor: Intel Core i5 (or superior)
Memory: 4 GB RAM (or superior)
Video Card: 2 GB (or superior)
Hard Drive: 1 TB (or superior)
USB Ports: 6 ports (or superior)
Monitor: 21.5" Flat (or superior)
Power Supply: 110/220V AC ± 10%, 50/60 Hz, 10A max
Optional Integration: Barcode reader, external camera archiving, remote viewing station, network supervisory system

Deployment Options

Stationary Installation: Fixed location in cargo screening facilities
Modular Design: Can be relocated if needed
Optional Accessories: Operator console, external UPS, search table, tray return system, inclined conveyor

Technical Specifications

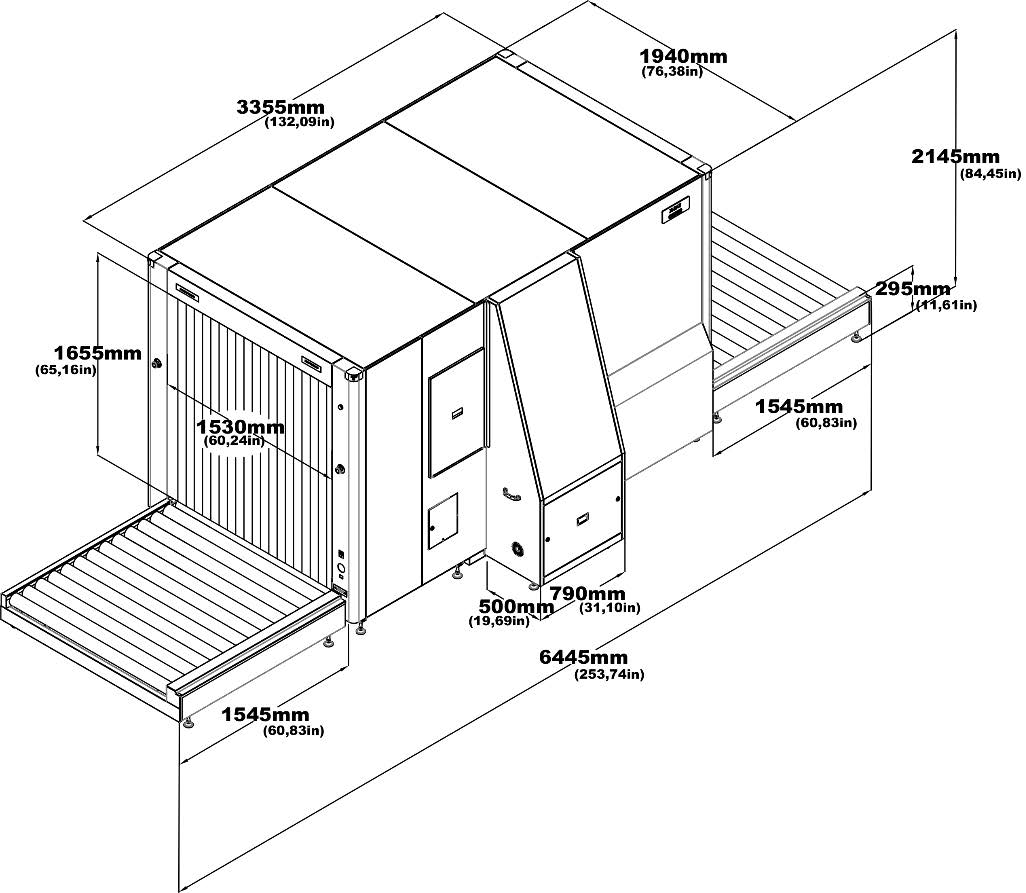

Tunnel Size: 1,530 mm × 1,655 mm
Dimensions: 6,445 mm × 2,145 mm × 2,440 mm
Weight (Unpacked): ~2,450 kg
Conveyor Height: 295 mm
Conveyor Load Capacity: 3,000 kg
System Power: 110/220V AC ± 10%, 50/60 Hz, 10A max
Conveyor Speed: 0.20 m/sec (forward/reverse)
Steel Penetration: 50 mm guaranteed; 52 mm typical
Wire Resolution: 36 AWG guaranteed; 38 AWG typical
Anode Voltage: 200 kV (operating at 200 kV)
Tube Current: 1.2 mA
Beam Direction: Horizontally sideward
Article Separation: Low Z, Medium Z, High Z to 0.5 Z accuracy
Cooling System: Oil and forced air cooling
Processor: Intel Core i5 (or superior)
Monitor: 21.5" Flat (or superior)
Memory: 4 GB RAM (or superior)
Video Card: 2 GB (or superior)
Hard Drive: 1 TB (or superior)
Operating System: Linux

XRC 150-165DV (320kV)

Product Family

With its 320kV generator XRC 150-165DV x-ray baggage scanner provides superior performance and facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. Thanks to its multi-diode structure and quality in imaging of scanned objects /materials), image is colored based on density and shows organic, inorganic and mixed materials in different tones.

It is manufactured with dual view (DV) technology. Thanks to its 2 generator sources, it provides high resolution and detailed imaging in horizontal and vertical angles. The images can be accessed with a single scan without the need to re-place the packages in a different orientation. Thus, hidden objects in the luggage are detected more easily and quickly. Designed with the latest technology to scan medium and large packages on a pallet. XRC 150-165DV (320kV) is one of the most suitable solutions for use in high security facilities such as freight companies, terminals, airports, customs and general cargo.

Key features of XRC 150-165DV (320kV) :
