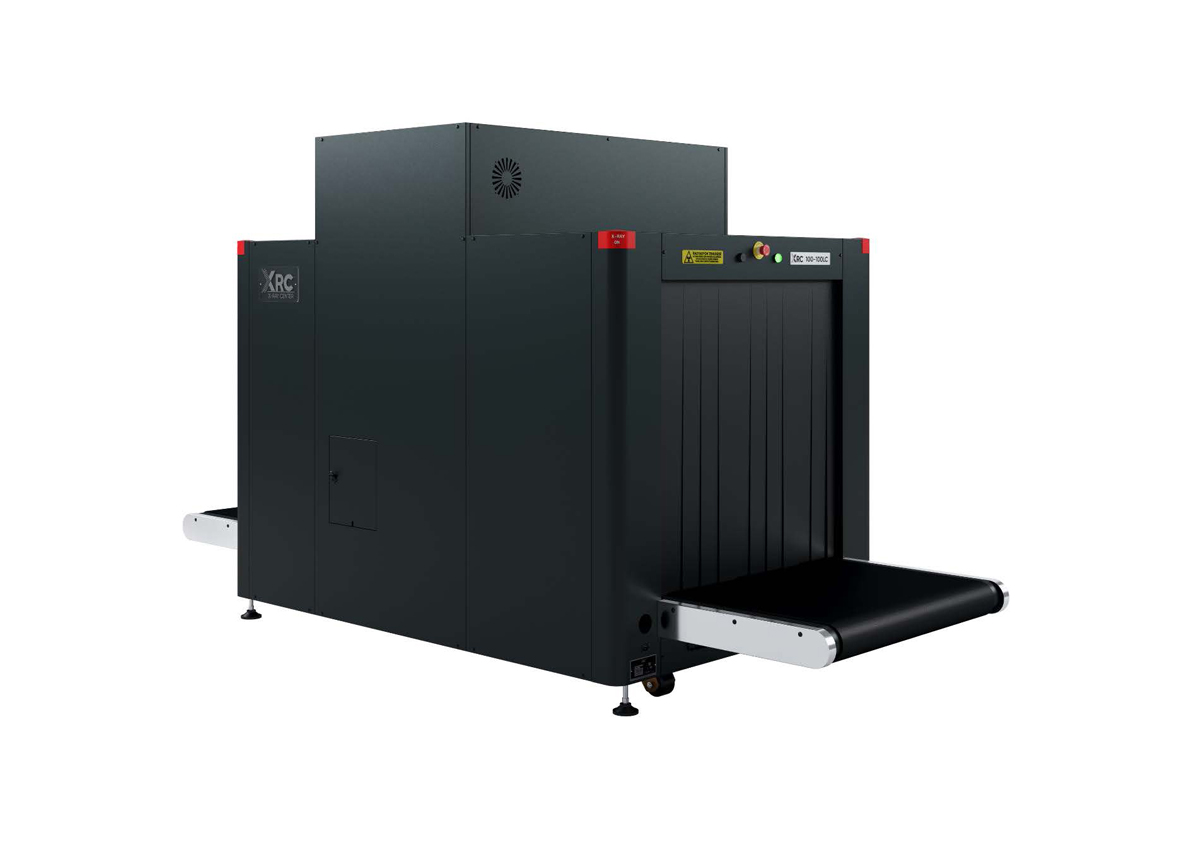

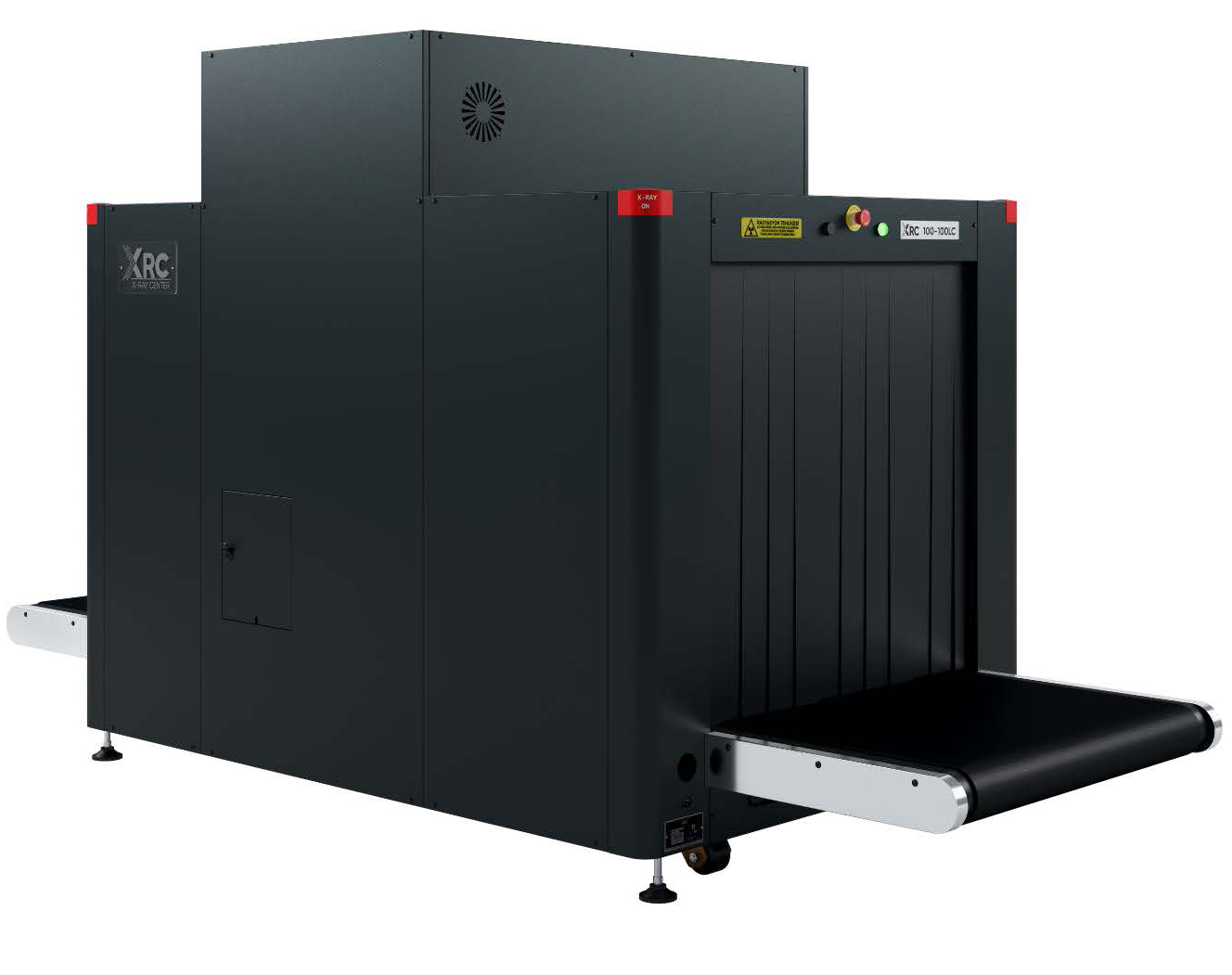

XRC 100-100LC Low Conveyor Baggage and Parcel Scanner

Low-Conveyor Baggage & Parcel Scanner

XRC 100-100LC

LARGE PARCEL AND FREIGHT

The XRC 100-100LC is a STAC-approved transmission X-ray baggage scanner featuring a low conveyor unit that facilitates the placement of heavy objects. This European Civil Aviation Technical Service (STAC) certified device combines advanced image processing, hazard alarm systems, and best-in-class software to deliver exceptional threat detection capabilities. The low conveyor design simplifies operator use and reduces physical strain during extended operations.

Technical & Functional

Key Features

XRC 100-100LC

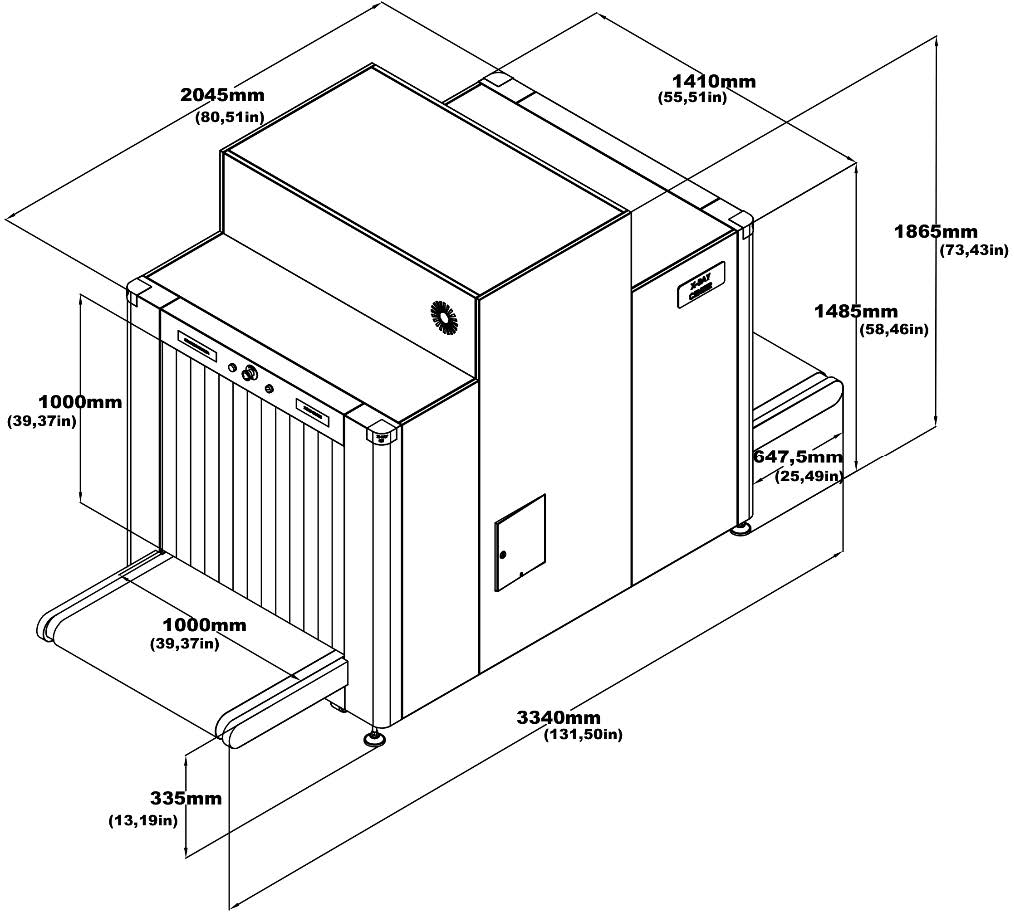

Tunnel Size

1,000 mm × 1,000 mm

Anode Voltage

180 kV (operating at 160 kV)

Steel Penetration

36 mm guaranteed; 40 mm typical

Wire Resolution

36 AWG guaranteed; 40 AWG typical

Conveyor Load Capacity

200 kg evenly distributed

Conveyor Height

335 mm (low-profile design)

Beam Direction

Vertically downward

Multi-diode Structure:

Organic/Inorganic/Mixed material differentiation

XRC 100-100LC

Low Conveyor X Ray Screening

STAC approved baggage and parcel inspection system with a low conveyor design for easier handling of heavy items and high throughput security screening.

XRC 100-100LC

Ergonomic Screening Design

Optimized tunnel dimensions and low conveyor height improve operator comfort, baggage handling, and reliable screening performance in demanding checkpoint environments.

XRC 100-100LC

Baggage and Parcel Inspection

Advanced transmission X ray technology with high penetration, material discrimination, and intelligent image processing for detection of explosives, narcotics, weapons, and prohibited items.

Benefits & Applications

Client Benefits

Ease of Use: Low conveyor unit reduces operator fatigue and simplifies heavy object placement
Threat Detection: Exceptional accuracy in detecting cutting tools, explosives, and narcotics
Image Quality: Multi-diode structure provides unique color-coded imaging for organic, inorganic, and mixed materials
Operational Efficiency: Reduces error rates and streamlines security screening processes
Certification: STAC-approved for civil aviation use

Use Cases

High-traffic checkpoints
City transportation hubs (metro, ferry, train stations)
Customs border crossings
Prisons
Courier depots
International logistics companies
Goods acceptance points
Post offices

Integration & Compatibility

Operating System: Linux
Processor: Intel Core i5 (or superior)
Memory: 4 GB RAM (or superior)
Video Card: 2 GB (or superior)
Hard Drive: 1 TB (or superior)
USB Ports: 6 ports (or superior)
Monitor: 21.5" Flat (or superior)
Power Supply: 110/220V AC ± 10%, 50/60 Hz, 5A max
Optional Integration: Barcode reader, external camera archiving, remote viewing station, network supervisory system

Deployment Options

Stationary Installation: Fixed location in security checkpoints
Modular Design: Can be relocated if needed
Optional Accessories: Operator console, external UPS, search table, tray return system, inclined conveyor
