Advanced 3D AESA Radar Detection & Tracking
The DroneWall radar portfolio combines advanced 3D AESA technology with electronic beam steering to detect and track small aerial targets across different operational environments. Providing range, azimuth and elevation data, the radars support early warning, threat assessment and integration within Counter UAS systems.

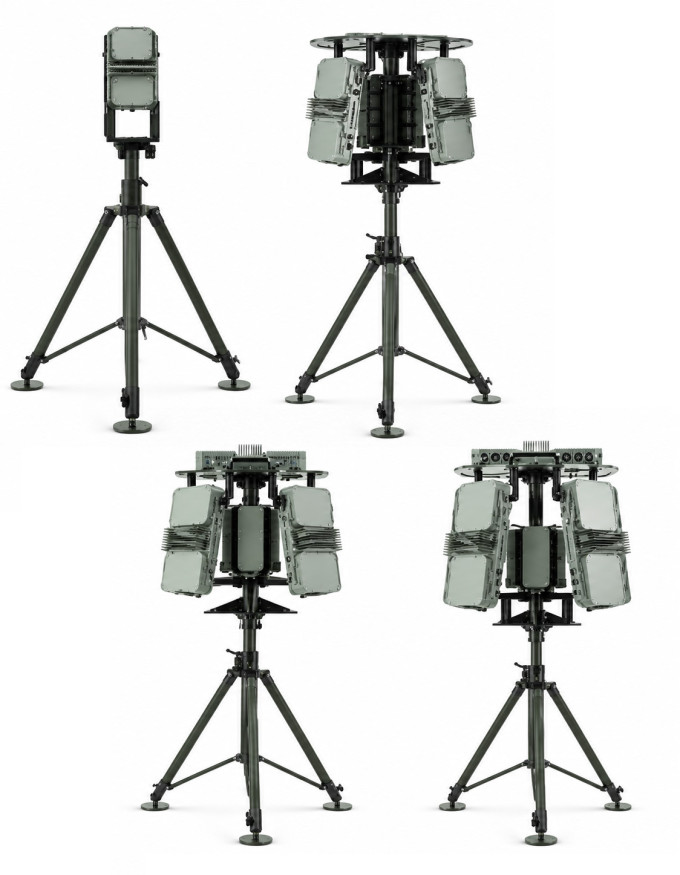

The portfolio includes four models: DroneWall R1.8, DroneWall R3, DroneWall R4.5 and DroneWall R7, offering different detection ranges and coverage options. Designed for fixed and relocatable installations, the radars integrate with electro-optical and thermal imaging systems.
Explore the DroneWall R Series
DroneWall R1.8
Compact 3D AESA Radar
1. Product description
The DroneWall R1.8 is a compact 3D AESA radar designed for local drone detection and airspace monitoring. Using advanced FMCW technology and electronic beam steering, it detects and tracks aerial targets while providing range, azimuth and elevation information for threat assessment.
With a reference detection range of 1.8 km for micro drones and support for up to 128 simultaneous tracks, the radar enables continuous surveillance within defined detection areas.
Its compact design, IP66 environmental protection and tripod mounting capability make it suitable for fixed installations and relocatable security operations.
2. Key Features
| Feature | Description |
|---|---|
| 3D AESA Technology | Electronic beam steering for aerial target detection and tracking |
| Target Classification | Ground and aerial target classification with estimated drone probability |
| Electronic Scanning | Radar scanning without moving mechanical components |
| Spatial Target Information | Provides range, azimuth and elevation data for target assessment |
| Sensor Integration | Ethernet interface for integration with compatible monitoring and command and control systems |
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Radar Technology | 3D AESA FMCW |
| Micro Drone Detection | 1.8 km* |
| Fixed Wing Drone Detection | 3.0 km* |
| Detection Accuracy | Azimuth < 1.0°; Elevation < 2.0°; Range < 3.5 m |
| Tracking Capacity | 128 simultaneous tracks |
| Environmental Protection | IP66 |
*Detection distances are catalogue reference values based on specified target types. Actual performance depends on target characteristics and installation conditions.
DroneWall R3
3D AESA Radar for Extended Site Coverage
1. Product description
The DroneWall R3 is a 3D AESA radar designed for extended drone detection and airspace monitoring. Using FMCW technology and electronic beam steering, it detects and tracks aerial targets while providing range, azimuth and elevation information for threat assessment.
With a reference detection range of 3.0 km for micro drones and support for up to 128 simultaneous tracks, the radar provides extended surveillance coverage for sensitive facilities and security installations.
Its integrated design, IP66 environmental protection and tripod mounting capability support fixed installations and relocatable deployments, with options for integration into wider Counter UAS systems.
2. Key Features
| Feature | Description |
|---|---|
| 3D AESA Technology | Electronic beam steering for aerial target detection and tracking |
| Target Classification | Ground and aerial target classification with estimated drone probability |
| Electronic Scanning | Radar scanning without moving mechanical components |
| Spatial Target Information | Provides range, azimuth and elevation data for target assessment |
| Sensor Integration | Ethernet interface for integration with compatible monitoring and command and control systems |
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Radar Technology | 3D AESA FMCW |
| Micro Drone Detection | 3.0 km* |
| Fixed Wing Drone Detection | 4.0 km* |
| Detection Accuracy | Azimuth < 1.0°; Elevation < 1.0°; Range < 3.5 m |
| Tracking Capacity | 128 simultaneous tracks |
| Environmental Protection | IP66 |
*Detection distances are catalogue reference values based on specified target types. Actual performance depends on target characteristics and installation conditions.
DroneWall R4.5
3D AESA Radar for Wider Detection Coverage
1. Product description
The DroneWall R4.5 is a 3D AESA radar designed for extended drone detection and airspace surveillance across larger security areas. Using FMCW technology and electronic beam steering, it detects and tracks aerial targets while providing precise range, azimuth and elevation information for threat assessment.
With a reference detection range of 4.5 km for micro drones and 6.0 km for mid-sized fixed wing drones, the radar supports early detection and continuous monitoring across wider surveillance zones. Its improved azimuth accuracy of less than 0.5° enables more precise target positioning.
Designed for fixed installations and relocatable deployments, the DroneWall R4.5 can be integrated with electro-optical and thermal imaging systems to support visual target assessment and coordinated Counter UAS operations.
2. Key Features
| Feature | Description |
|---|---|
| 3D AESA Technology | Electronic beam steering for aerial target detection and tracking |
| Target Classification | Ground and aerial target classification with estimated drone probability |
| Electronic Scanning | Radar scanning without moving mechanical components |
| Spatial Target Information | Provides range, azimuth and elevation data for target assessment |
| Sensor Integration | Ethernet interface for integration with compatible monitoring and command and control systems |
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Radar Technology | 3D AESA FMCW |
| Micro Drone Detection | 4.5 km* |
| Fixed Wing Drone Detection | 6.0 km* |
| Detection Accuracy | Azimuth < 0.5°; Elevation < 1.0°; Range < 3.5 m |
| Tracking Capacity | 128 simultaneous tracks |
| Environmental Protection | IP66 |
*Detection distances are catalogue reference values based on specified target types. Actual performance depends on target characteristics and installation conditions.
DroneWall R7
Long Range 3D AESA Radar
1. Product description
The DroneWall R7 is a long range 3D AESA radar designed for drone detection and airspace surveillance across extensive security areas. Using FMCW technology and electronic beam steering, it detects and tracks aerial targets while providing range, azimuth and elevation information for threat assessment.
With a reference detection range of 7.0 km for micro drones and 10.0 km for mid-sized fixed wing drones, the R7 offers the longest detection distances in the DroneWall radar portfolio. Its high angular accuracy supports precise target positioning and tracking.
Suitable for large critical infrastructure facilities, airports and military installations, the R7 supports fixed and relocatable deployments and can be integrated with electro-optical and thermal imaging systems for visual target assessment.
2. Key Features
| Feature | Description |
|---|---|
| 3D AESA Technology | Electronic beam steering for aerial target detection and tracking |
| Target Classification | Ground and aerial target classification with estimated drone probability |
| Electronic Scanning | Radar scanning without moving mechanical components |
| Spatial Target Information | Provides range, azimuth and elevation data for target assessment |
| Sensor Integration | Ethernet interface for integration with compatible monitoring and command and control systems |
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Radar Technology | 3D AESA FMCW |
| Micro Drone Detection | 7.0 km* |
| Fixed Wing Drone Detection | 10.0 km* |
| Detection Accuracy | Azimuth < 0.5°; Elevation < 0.7°; Range < 5 m |
| Tracking Capacity | 128 simultaneous tracks |
| Environmental Protection | IP66 |
*Detection distances are catalogue reference values based on specified target types. Actual performance depends on target characteristics and installation conditions.
COMPARE THE DRONEWALL R SERIES
| Parameter | DroneWall R1.8 | DroneWall R3 | DroneWall R4.5 | DroneWall R7 |
|---|---|---|---|---|
| Micro Drone Detection* | 1.8 km | 3.0 km | 4.5 km | 7.0 km |
| Fixed Wing Drone Detection* | 3.0 km | 4.0 km | 6.0 km | 10.0 km |
| Azimuth Accuracy | < 1.0° | < 1.0° | < 0.5° | < 0.5° |
| Elevation Accuracy | < 2.0° | < 1.0° | < 1.0° | < 0.7° |
| Tracking Capacity | 128 | 128 | 128 | 128 |
| Scan Time | < 2 s | < 2 s | < 2.8 s | < 2.8 s |
*Detection distances are catalogue reference values. Actual performance depends on target characteristics and operating conditions.
FLEXIBLE RADAR COVERAGE & CONFIGURATIONS
1. Radar Detection & Coverage
DroneWall radar systems provide three-dimensional detection and tracking of aerial targets using electronically steered radar beams. Each radar panel covers a defined surveillance sector, providing range, azimuth and elevation information for target monitoring and assessment.
Individual radar panels offer a nominal 100° horizontal field of view and 60° vertical coverage, extending from −5° to +55° in elevation. Multiple radar panels can be combined to provide wider surveillance coverage, including 360° horizontal and hemispherical configurations.
The modular configuration allows radar coverage to be adapted to site requirements, installation conditions and operational priorities, supporting both fixed and relocatable security applications.

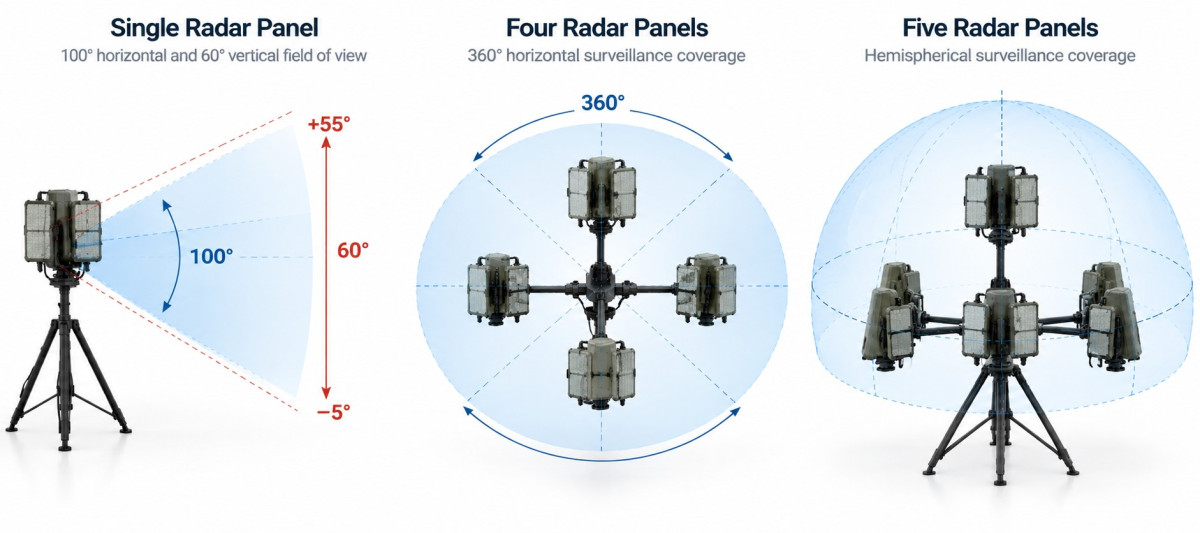

2. Radar Coverage Configurations
| Configuration | Coverage |
|---|---|
| Single Radar Panel | 100° horizontal and 60° vertical field of view |
| Four Radar Panels | 360° horizontal surveillance coverage |
| Five Radar Panels | Hemispherical surveillance coverage |
Actual surveillance coverage depends on radar positioning, installation geometry, surrounding obstructions and site conditions.
