Fixed Under Vehicle Monitoring System PRO
The uniXSCAN Fixed UVMS PRO is an advanced Under Vehicle Monitoring System designed for permanent, in-ground installation at secured checkpoints and controlled access points. Installed within a concrete foundation and flush mounted into the roadway, it forms an integral part of the physical access control infrastructure.
The system provides automated, high resolution inspection of vehicle undercarriages for the detection of weapons, explosives, drugs, contraband, and structural anomalies such as rust or mechanical defects. Unlike conventional inspection methods such as hand held mirrors or inspection pits, the UVMS PRO enables reliable underbody screening without interrupting traffic flow.
Scanning is triggered automatically via induction loop sensors and integrates with surveillance systems, ANPR, traffic lights, barriers, and central control room environments.
Key Features
Fixed UVMS PRO

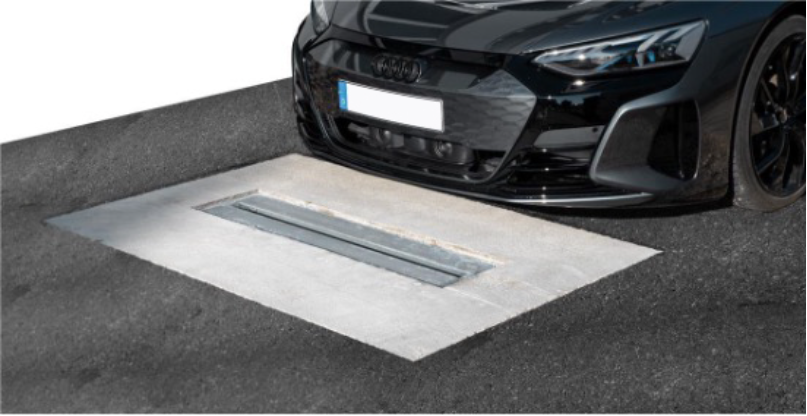

Fixed UVMS PRO in Ground Operation

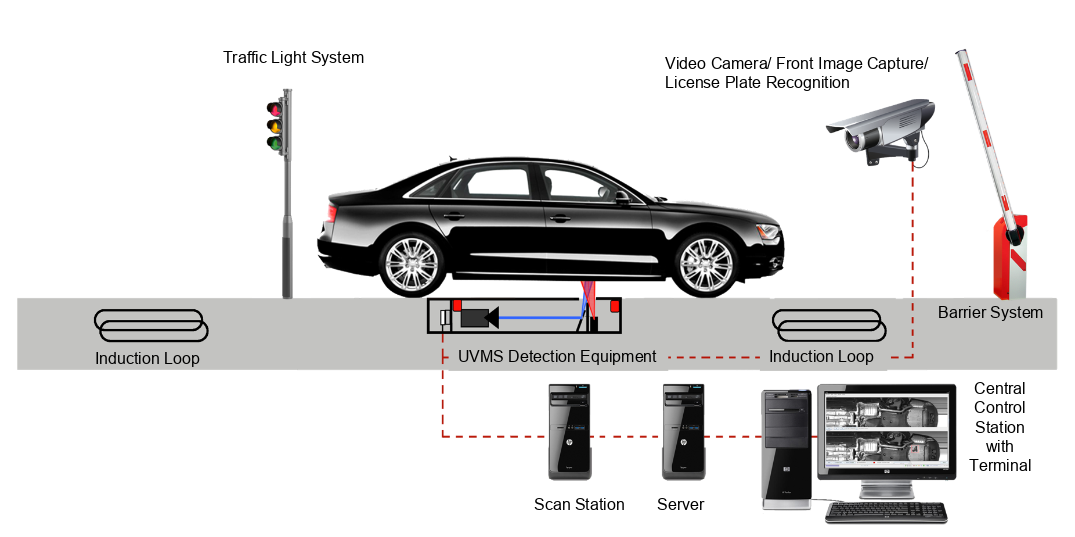

Automatic Scan & Checkpoint Integration

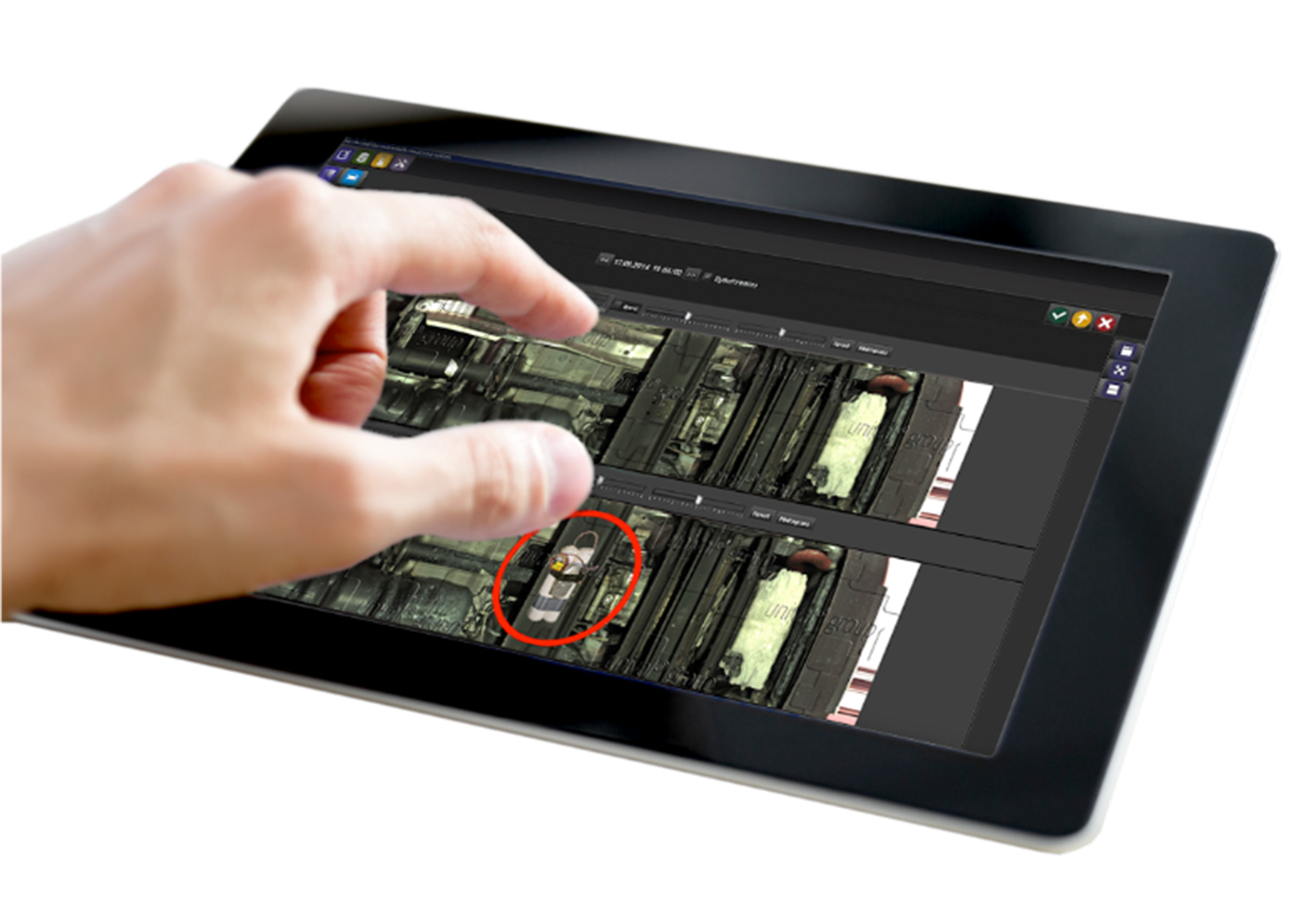

Optional Mobile Touch Pad Control

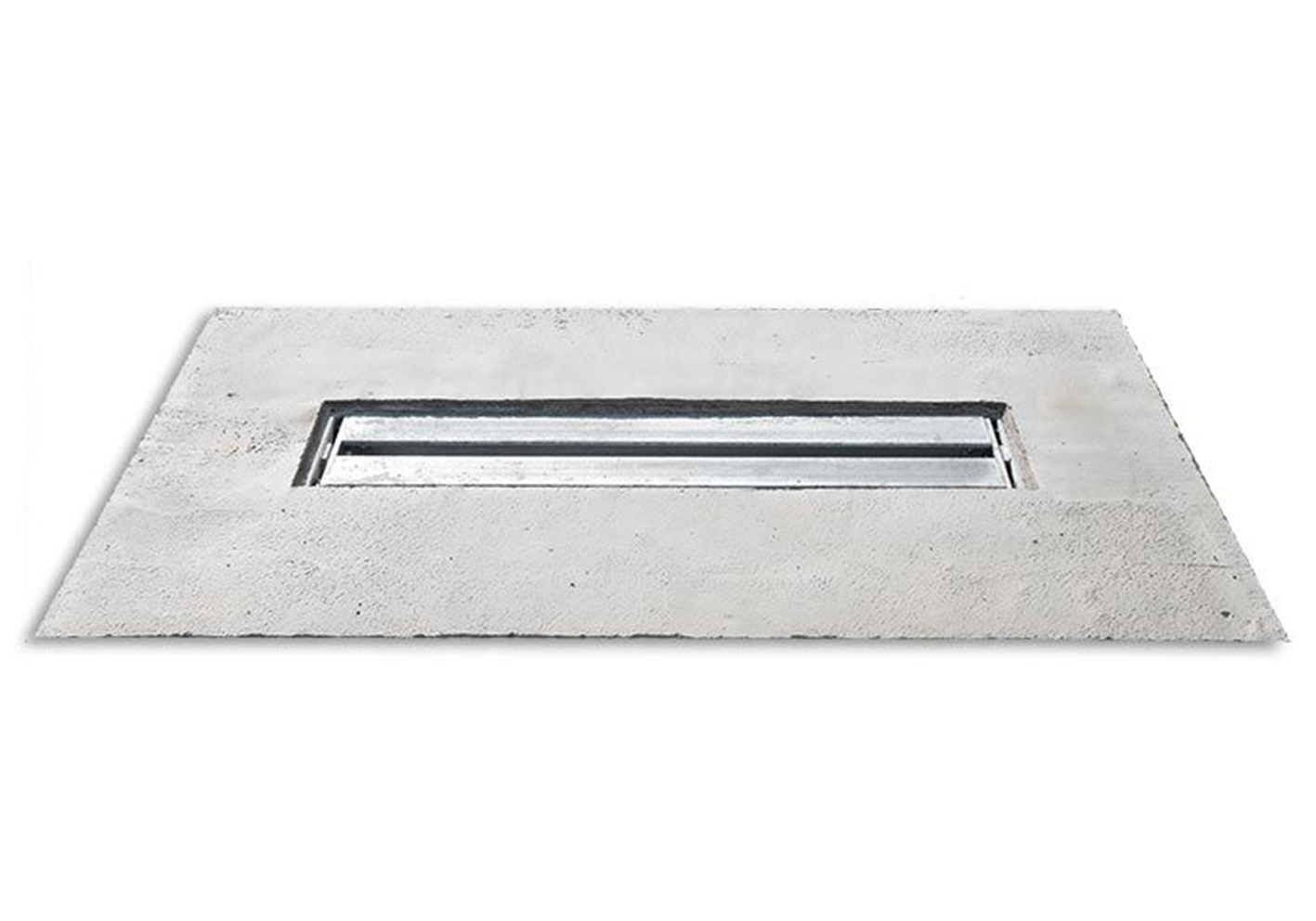

Fixed In Ground Scanner Unit
Benefits & Applications
Client Benefits
- Higher inspection speed at access points while keeping traffic flow moving,
- Improved operator detection capability through high resolution color imaging and automatic comparison with visual highlighting,
- Better traceability of recurring vehicles because scans and related data can be stored under the license plate number and compared later,
- Supports structured checkpoint operations by combining scanning, workstation review, and optional integrations such as ANPR and front image capture
Use Cases
- Airports, military institutions, embassies, nuclear power plants, governmental agencies, penitentiaries, and other high profile installations,
- Border controls and checkpoint scenarios,
- Parking garage access controls,
- Large scale events and sports events security checks,
- Access security of 5 star hotels and large corporate sites.
Integration & Compatibility
- System components scanning unit, workstation, traffic lights, and a light barrier are part of the system structure.
- Optional front end image capture and automatic license plate recognition can be integrated to support correlation between vehicle and underside image.
- Network operation via internal security network, enabling main control room monitoring when several units are operated; database available at every station; optional local gate control station with limited functions.
- Workstation configuration master and slave workstation configuration supported.
Deployment Options
Permanent fixed installation with stainless steel permanent housing, flush mounted into the roadway and designed for long term integration into secured access points.
Technical Specifications
- Camera and optics: Line scan camera with mirror
- Lighting: Infrared LED lighting unit plus high power LED illumination greater than 100 W
- Imaging: Color line scan technology, high resolution, fully colored output
- Resolution: Average car about 10 Mpx, maximum up to 100 Mpx
- Field of view: Full coverage including door sills and running boards
- Operating temperature: Minus 20 to plus 65 degrees Celsius
- Max scanning speed: 40 km per hour (higher optionally available depending on induction loop position)
- Software views: Real time view (about 3 seconds delay), comparison view
- Detail inspection: Zoom down to 1 mm detail, continuous zoom by mouse scroll wheel
