XRC 180-180DV (200kV) Dual-View Cargo X-ray Scanner

Dual-View High-Energy Cargo Scanner

XRC 180-180DV (200kV)

PALLET AND CARGO

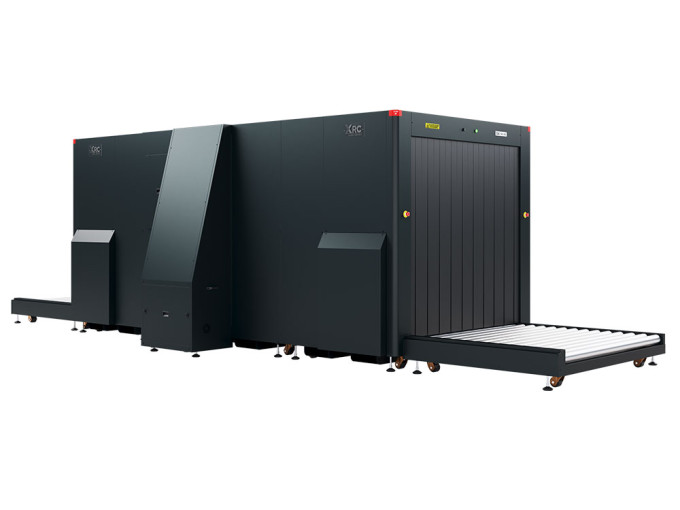

The XRC 180-180DV (200kV) is a TSA ACSTL-certified dual-view X-ray scanner featuring two generator sources for simultaneous horizontal and vertical imaging. This advanced system delivers outstanding performance with its potent 200kV generator and dual-view (DV) technology, enabling high-resolution imaging in both planes without requiring package repositioning. The system is ideal for high-security facilities requiring thorough and efficient cargo screening.

Technical & Functional

Key Features

XRC 180-180DV (200kV)

Core scanning technology

320 kV X-ray generator, operating at full 320 kV for excellent penetration.

Dual-view (DV) imaging

1st generator: vertically downward beam
2nd generator: horizontally sideward beam
This provides two orthogonal views in one scan.

High penetration & resolution

Steel penetration: 70 mm guaranteed / 72 mm typical
Wire resolution: 36 AWG guaranteed / 38 AWG typical

Multi-diode detector array with material discrimination

Low Z / Medium Z / High Z with ±0.5 Z accuracy.
Color-coded imaging based on density and atomic number (organic, inorganic, mixed).

Image processing & software

Rich image enhancement toolset:

Perfect View (detail enhancement), Edge Enhancement, Pseudo Color, Multi-Energy Viewer (4–6 colors).
Organic / Inorganic / Mixed material filters.
Black & White, Inverse, High Penetration.
Variable edge enhancement, density, gamma, and color separation.
Zoom up to 64x plus Sniper Zoom for fine detail.

Image management

Recall previous images.
Manual and automatic archiving.
Annotated archive.

Threat support & training

Virtual Threat Image Projection (TIP) to test operator vigilance.

Operator Training Program (OTP) integrated.

Conveyor system

Speed: 0.20 m/s, forward and reverse.
Load capacity: 3000 kg, evenly distributed.
Conveyor height: 465 mm.
Automatic stop conveyor function.

User Interface / Ergonomics

Programmable function keys.
Parcel counter, date/time display.
Multi-language interface.

System management & safety

Self-diagnosis and generator timer.
Built-in UPS for computer supply.
Compliant with CE, US FDA 21CFR 1020.40 and international safety standards.
Exterior radiation level ≤ 0.1 mR/h; safe for ISO 1600 film.

XRC 180-180DV (200kV)

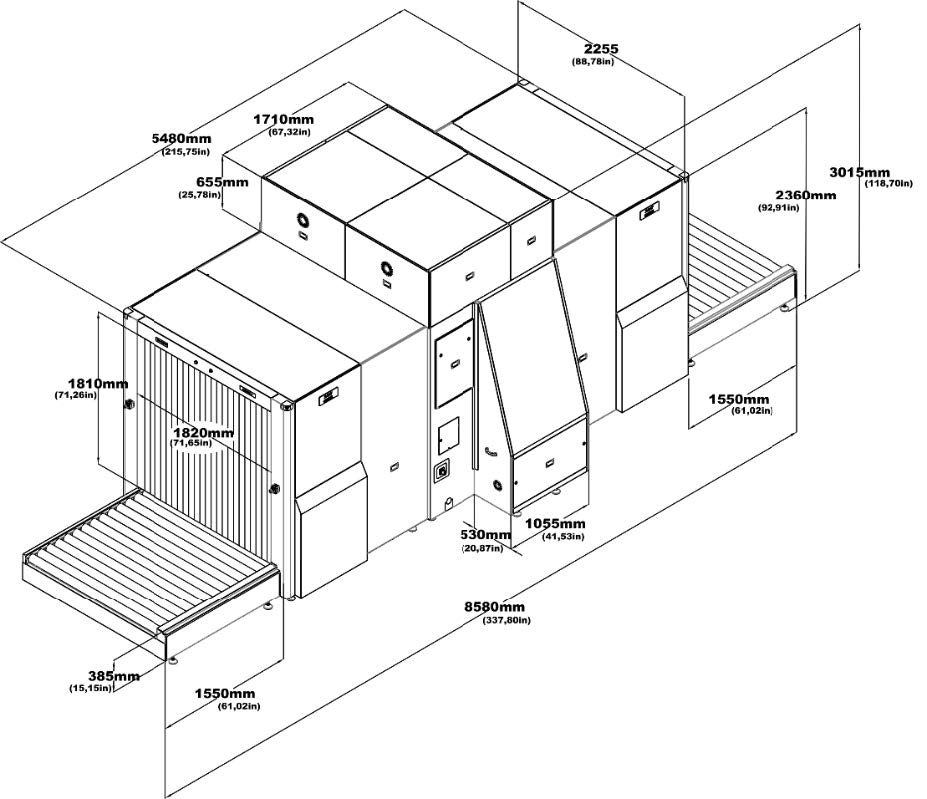

Compact System Dimensions

Benefits & Applications

Client Benefits

High detection performance: 320 kV and dual-view geometry significantly improve detection of concealed threats in dense or cluttered cargo, reducing blind spots and re-scan rates.
Operational efficiency: Large tunnel and 3-ton capacity with dual-view in a single pass improve throughput and minimize handling.
Lower error rate: Advanced imaging, material discrimination, and TIP/OTP functions reduce operator fatigue and misinterpretation.
Flexible integration: Optional NSS, remote viewing, recheck and barcode systems support modern, networked security operations.
Regulatory confidence: TSA ACSTL qualification and CE / FDA compliance make it suitable for aviation and high-security use.

Use Cases

Airports & Air Cargo Terminals: Screening of pallets, ULDs, outsized baggage, and general cargo.
Border Crossings & Customs: Inspection of medium and large freight shipments on pallets, large parcels, and dense loads.
Distribution Centers & Logistics Hubs: Security screening before dispatch or storage.
Government & Justice Facilities: Screening incoming large parcels, secure logistics, and evidence shipments.
Critical Infrastructure Sites: Protection of power plants, defense sites, and other high-value facilities from illicit cargo-borne threats.

Integration & Compatibility

Standard integration capabilities: Works as a standalone unit or as part of a networked screening environment.

Compatible with:
Network Supervisory System (NSS) (optional).
Remote viewing station and recheck station (optional).
Barcode reader for linking X-ray images with shipment IDs (optional).
External camera archiving for synchronizing X-ray images and CCTV.
Software & hardware integration options
Smart Card login (optional) for role-based access and operator accountability.
Remote access connection (optional) for maintenance or centralized monitoring.

Deployment Options

Tunnel size: 1800 mm (W) x 1810 mm (H) – suitable for large cargo and pallets.
Dimensions (L x W x H): 8580 mm x 3410 mm x 3465 mm.
Weight: ~10,500 kg (unpacked).
Power: 110/220V AC ±10%, 50/60 Hz.
1-phase 16A max or 3-phase 7A max.
Installation environment:
Indoor or sheltered areas in airports, cargo terminals, warehouses, and secure hubs.
Requires appropriate floor loading for ~10.5 t and conveyor line integration.
Optional accessories simplify integration into existing lines:
Input / output rollers, inclined conveyors, tray return systems.
Search table, protective cover.
Radiation meter for local compliance verification.
External UPS for full system backup.

Technical Specifications

Tunnel Size: 1800 mm x 1810 mm
External Dimensions (L x W x H): 8580 mm x 3410 mm x 3465 mm
Approx. Weight: ~10,500 kg (unpacked)
Conveyor Height: 465 mm
Conveyor Load Capacity: 3000 kg (evenly distributed)
Conveyor Speed: 0.20 m/s (forward/reverse)
Anode Voltage: 320 kV (operating at 320 kV)
Tube Current: 1.0 mA
Steel Penetration: 70 mm guaranteed; 72 mm typical
Wire Resolution: 36 AWG guaranteed; 38 AWG typical
Beam Directions: Generator 1: vertical down; Generator 2: horizontal side
Material Discrimination: Low Z / Medium Z / High Z (to 0.5 Z accuracy)
Cooling: Oil and forced air cooling
System Power: 110/220V AC ±10%, 50/60 Hz, 1p 16A max / 3p 7A max
Computer – CPU: Intel Core i5 or better
Monitor: 21.5" flat (or better)
RAM: 4 GB or more
Storage: ≥ 1 TB HDD
Video Card: 2 GB or more
USB Ports: ≥ 6
OS: Linux
Image Functions (Examples): PV, EE, PS, OM, IM, B/W, IN, HP, +E/–E, +D/–D, +G/–G, +C/–C, 64x Zoom, Sniper Zoom, Multi Energy Viewer, Z-Value display
Standards & Safety: CE, US FDA 21CFR 1020.40, ISO 1600 film safe, IP20, ≤ 0.1 mR/h at exterior panels
