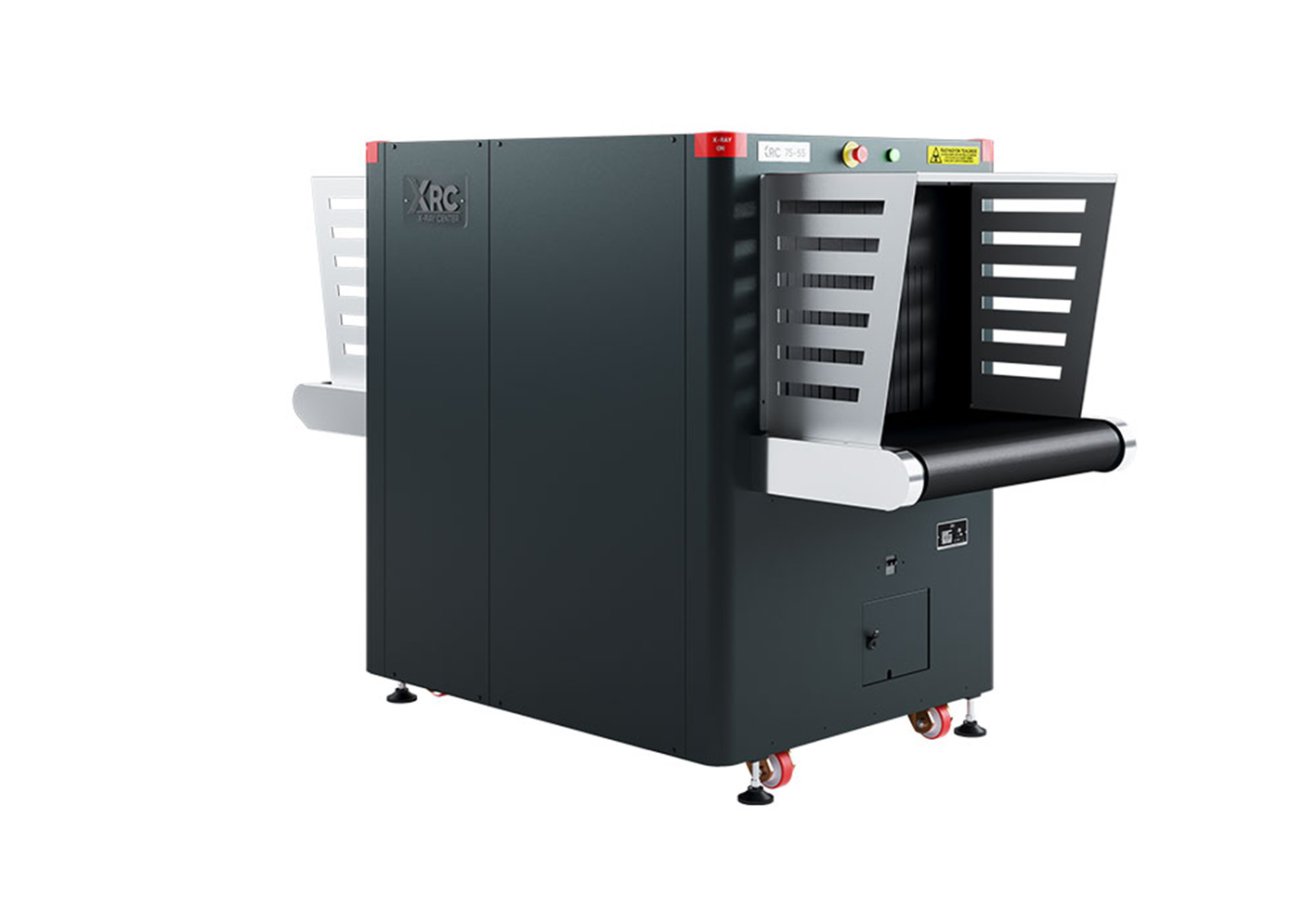

XRC 75-55
SMALL PARCEL AND BAGGAGE
The XRC 75-55 is a transmission x ray baggage inspection system designed for screening baggage, parcels, and similar items. Equipped with a 170 kV generator operating at 160 kV and a multi diode imaging structure, it delivers strong penetration performance and density based color imaging for accurate material separation.
The system differentiates organic, inorganic, and mixed materials to support identification of potentially threatening objects such as cutting tools, explosives, and narcotics. With its 755 mm x 555 mm tunnel opening and high load capacity, it is suited for security environments requiring inspection of larger baggage items within the Small Parcel and Baggage category.
Technical & Functional
Key Features
XRC 75-55
Expanded Tunnel Baggage Inspection System
Density-Based Material Separation
High Capacity Conveyor Operation

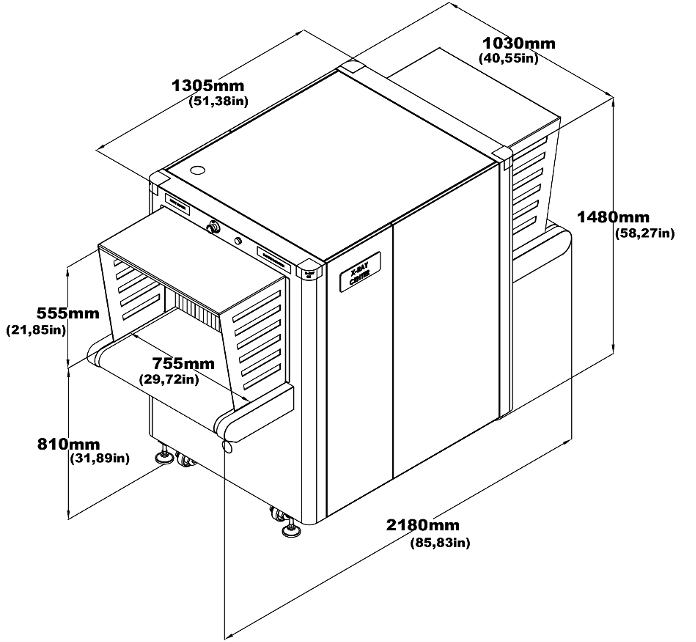

Installation Footprint and Layout
Benefits & Applications
Client Benefits
- 755 mm x 555 mm Tunnel Opening: Supports inspection of larger baggage items.
- Strong Penetration Performance: 170 kV generator enables inspection of dense materials.
- Improved Threat Identification: Multi energy material separation enhances detection accuracy.
- High Load Capability: Conveyor supports up to 165 kg evenly distributed.
- Operational Efficiency: 0.20 m/s conveyor speed with forward and reverse function.
- Integration Ready: Compatible with supervisory and remote monitoring systems.
Use Cases
- Police and Justice Facilities: Screens baggage and parcels in controlled law enforcement environments.
- Airports and Border Crossings: Supports inspection of cabin baggage and luggage items.
- Government Buildings: Provides entry screening for parcels and equipment.
- Distribution Centers and Logistics Hubs: Enables inspection of packages within operational workflows.
- Customs Inspection Points: Assists in identifying concealed contraband in baggage and shipments.
- Critical Infrastructure Sites: Supports controlled screening in protected operational facilities.
Integration & Compatibility
- Network Supervisory System (NSS) optional.
- Barcode reader integration.
- External camera archiving capability.
- Remote viewing station and recheck station support.
- Remote access connection for diagnostics.
- Smart card login for operator authentication.
- Optional TSA / ECAC configurations available upon request.
Deployment Options
- Conveyor Height: 810 mm.
- Conveyor Load Capacity: 165 kg evenly distributed.
- Conveyor Speed: 0.20 m/s forward or reverse.
- Power Supply: 110/220V AC ±10%, 50/60 Hz, 5A max.
- Cooling System: Oil and forced air cooling.
- Operating Environment: Indoor installation; radiation emission level max 0.1 mR/hour at exterior panels..
Technical Specifications
- Tunnel Size: 755 mm x 555 mm
- Dimensions (L x W x H): 2180 mm x 1480 mm x 1030 mm
- Approx. Weight: ~635 kg
- Anode Voltage: 170 kV (operating at 160 kV)
- Tube Current: 1.0 mA
- Steel Penetration: 37 mm guaranteed; 39 mm typical
- Wire Resolution: 38 AWG guaranteed; 40 AWG typical
- Conveyor Height: 810 mm
- Conveyor Load: 165 kg
- Conveyor Speed: 0.20 m/s
- Beam Direction: Vertical upwards
- Article Separation: Low Z, Medium Z, High Z ±0.5 Z accuracy
- Cooling: Oil and forced air
- Processor: Intel Core i5 or superior
- Memory: 4 GB RAM or superior
- Storage: 1 TB HDD or superior
- Operating System: Linux
- Radiation Level: Max 0.1 mR/hour exterior panel exposure
- Compliance: CE, FCC, IEC, US FDA 21CFR 1020.40
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
