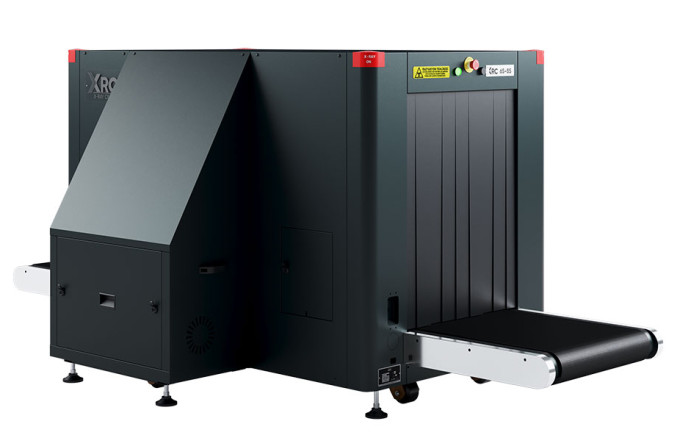

XRC 65-85 Medium Parcel & Baggage X-ray Scanner

Medium-Sized Cargo Scanner

XRC 65-85

SMALL PARCEL AND BAGGAGE

The XRC 65-85 is a medium-sized transmission X-ray scanner with a low conveyor unit for easy placement of heavy loads. It is designed for scanning medium and large bags and packages and offers an ideal solution for high-traffic checkpoints such as city transportation hubs (metro, ferry, train stations), customs border crossings, prisons, and courier depots.

Technical & Functional

Key Features

XRC 65-85

Larger tunnel

665 mm (W) x 865 mm (H) – significantly taller than compact models.

Low conveyor height

290 mm – allows easy placement of heavy items without lifting.

Horizontal beam

Sideward X-ray direction for lateral inspection.

Steel penetration

37 mm guaranteed / 39 mm typical.

Wire resolution

38 AWG guaranteed / 40 AWG typical.

Anode voltage

170 kV (operating at 160 kV).

Tube current

1.0 mA (higher than compact models).

Material discrimination

Low Z / Medium Z / High Z with ±0.5 Z accuracy.

XRC 65-85

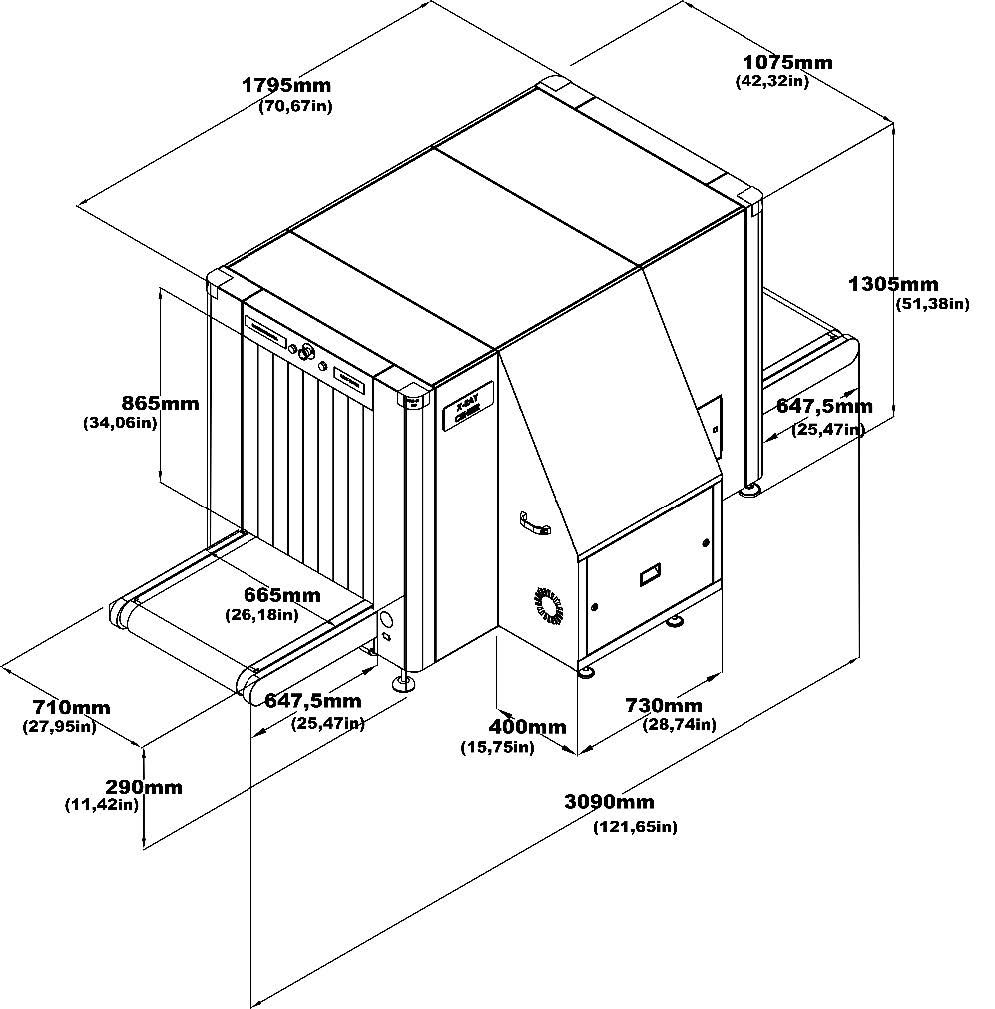

Compact System Dimensions

Benefits & Applications

Client Benefits

Ergonomic design: Low conveyor height (290 mm) reduces operator strain and facilitates heavy item placement.
Higher throughput: Larger tunnel accommodates bulkier packages.
Enhanced imaging: Higher tube current (1.0 mA) improves image quality.
Versatile application: Suitable for high-traffic, high-volume screening environments.

Use Cases

City transportation hubs (metro, ferry, train stations)
Customs border crossings
Prisons and correctional facilities
Courier depots and logistics companies
International logistics hubs
Goods acceptance and distribution points

Integration & Compatibility

Network Supervisory System (NSS) for multi-unit coordination.
Barcode reader, external camera archiving, remote viewing.
Smart card login and recheck station support.

Deployment Options

Conveyor height: 290 mm (lowest in the series – ergonomic advantage).
Load capacity: 200 kg max.
Conveyor speed: 0.20 m/s.
Power: 110/220V AC ±10%, 50/60 Hz, 5A max.

Technical Specifications

Tunnel Size: 665 mm x 865 mm
Dimensions (L x W x H): 3090 mm x 1305 mm x 1475 mm
Weight: ~760 kg
Anode Voltage: 170 kV (operating at 160 kV)
Tube Current: 1.0 mA
Steel Penetration: 37 mm guaranteed; 39 mm typical
Wire Resolution: 38 AWG guaranteed; 40 AWG typical
Conveyor Load: 200 kg
Conveyor Height: 290 mm
Processor: Intel Core i5 or better
RAM: 4 GB or more
Storage: 1 TB HDD
OS: Linux

The XRC 65-85

Product Family

XRC 50-30 (100kV)

The XRC 50-30 (100kV) is a compact x ray baggage scanner designed for detailed inspection of small handbags, parcels, packages, and cabin baggage. Equipped with a 100 kV generator and multi diode imaging structure, it provides clear density based color imaging and material discrimination to support identification of potentially threatening objects such as cutting tools, explosives, and narcotics. Its space efficient design makes it suitable for courts, police facilities, government buildings, shopping malls, prisons, and hotels.

Programmable function keys parcel counter
Date and time display
Virtual threat image projection (TIP)
Organic/inorganic threat alarm operator

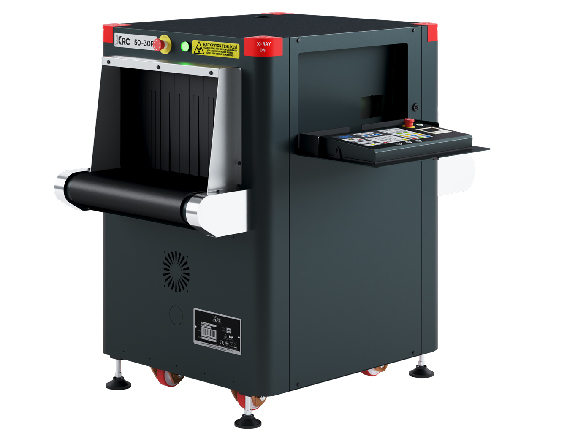

XRC 50-30 P

XRC 50-30P x-ray device facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate and offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.

Programmable function keys parcel counter
Date and time display
Virtual threat image projection (TIP)
Organic/inorganic threat alarm operator

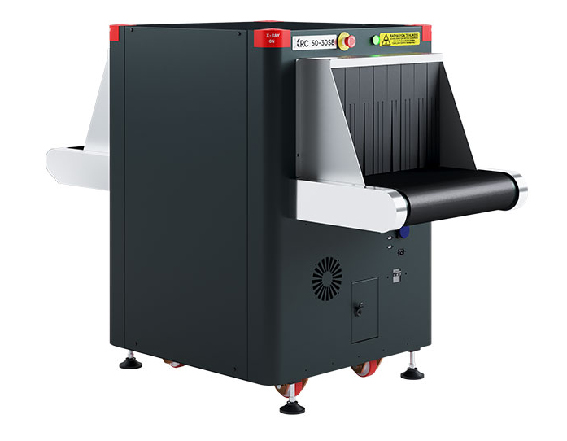

XRC 50-30 SE

The XRC 50-30SE is one of the smallest tunnel sizes in the XRC baggage and parcel product range, featuring single-energy (SE) diode array technology. It's specifically designed for locations with limited operating space, providing excellent image quality for detecting inorganic threats while maintaining economical operation. The system is ideal for scanning small handbags, packages, parcels, and cabin baggage in detail.
