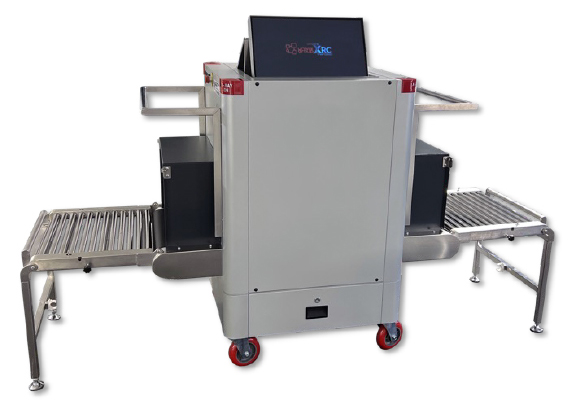

XRC 50-30LC T (100kV)
SMALL PARCEL AND BAGGAGE
The XRC 50-30LC T (100kV) is a compact x-ray baggage inspection system designed for detailed screening of small handbags, parcels, packages, and cabin baggage. Equipped with a 100 kV generator and multi diode imaging structure, it enables clear visualization of scanned objects and accurate material discrimination.
The system color codes objects based on density and differentiates organic, inorganic, and mixed materials to support identification of potentially threatening items such as cutting tools, explosives, and narcotics. Designed for locations with limited operating space, it combines advanced image processing, hazard alarms, and operator assistance tools to minimize error rates and improve screening reliability.
Key Features
XRC 50-30LC T (100kV)
Compact 100 kV X-Ray Baggage Inspection
Detailed Screening for Small Baggage
Multi-Energy Material Analysis

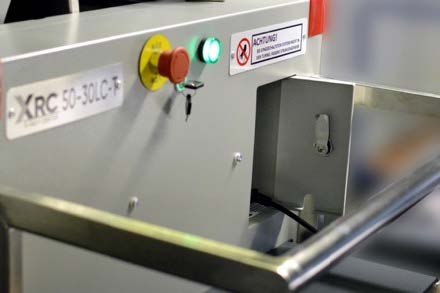

Operator Control and Safety Interface

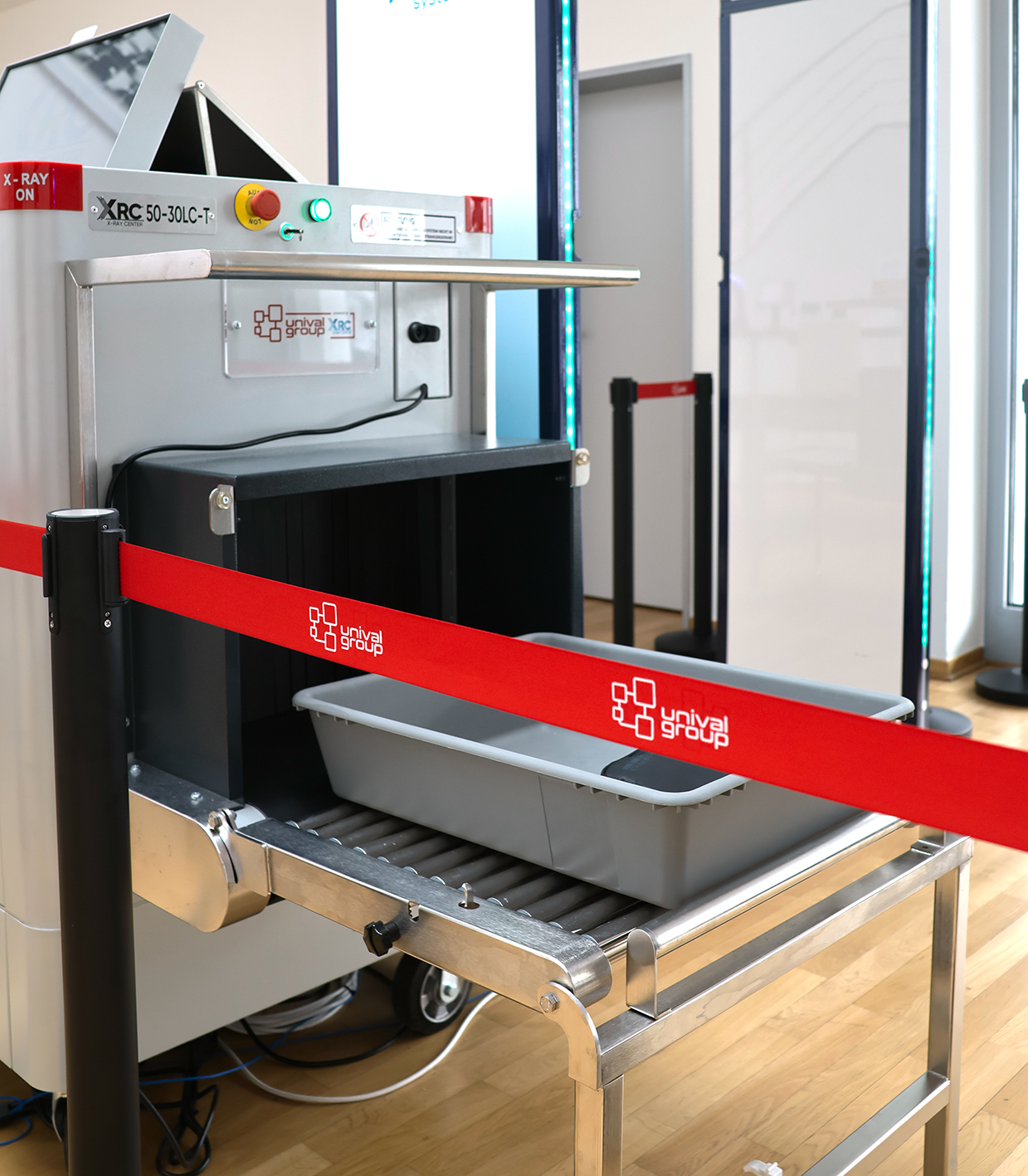

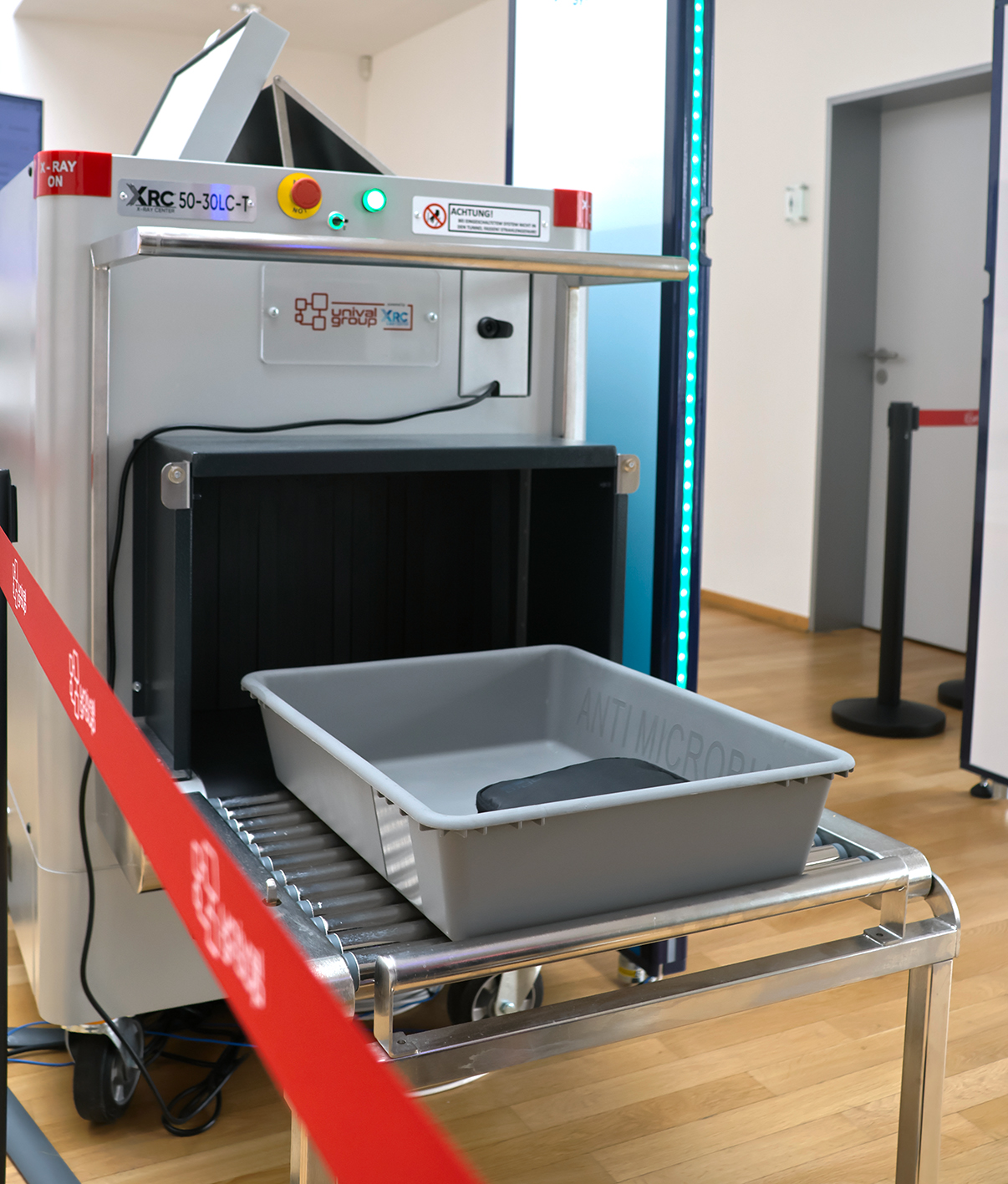

Secure Entry Point Baggage Screening

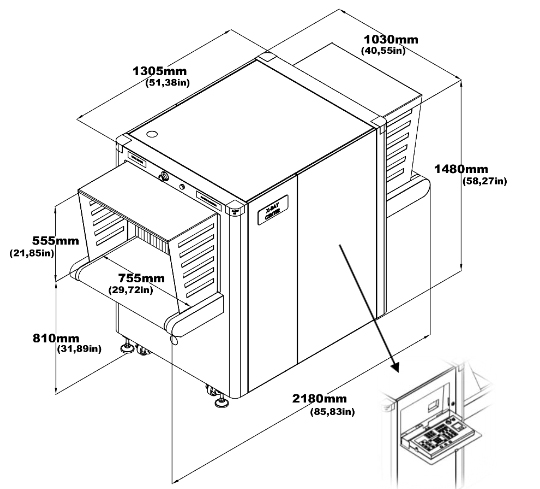

Compact Footprint and System Layout
Benefits & Applications
Client Benefits
- Efficient Small Baggage Screening: Ideal for compact sites requiring reliable inspection of handbags and parcels.
- Improved Threat Detection: Multi energy color imaging enhances identification of explosives, narcotics, and cutting tools.
- Reduced Operator Error: Advanced image processing and alarm functions minimize misinterpretation.
- Space Saving Installation: Designed for facilities with limited operational footprint.
- Operational Reliability: Oil and forced air cooling system ensures stable performance.
- Flexible Integration: Compatible with network supervision and remote access systems.
Use Cases
- Police and Justice Facilities,
- Airports and Border Crossings,
- Government Buildings,
- Distribution Centers and Logistics Hubs,
- Customs Inspection Points,
- Critical Infrastructure Sites,
- Courts and Prisons,
- Hotels and Commercial Buildings
Integration & Compatibility
- Network Supervisory System (NSS): Allows centralized monitoring and supervision.
- Remote Viewing Station: Enables off site or secondary inspection monitoring.
- Remote Access Connection: Supports system diagnostics and remote support.
- Barcode Reader System: Facilitates parcel tracking and workflow integration.
- Smart Card Login: Enables controlled operator access management.
- External Camera Archiving: Supports visual documentation of inspected items.
- TSA and ECAC Certification Option: Certified configurations available upon request.
Deployment Options
- Installation Type: Floor mounted conveyor based x-ray inspection system.
- Power Requirements: 110 / 220 V AC ±10%, 50 / 60 Hz.
- Operating Environment: 0°C to 40°C operating temperature, indoor environment.
- Load Capacity: Conveyor load capacity up to 165 kg evenly distributed.
- Conveyor Operation: 0.20 m/sec forward or reverse operation.
Technical Specifications
- Tunnel Size: 532 mm x 332 mm
- System Dimensions: 2,300 mm x 1,300 mm x 770 mm
- Approx. Weight: ~450 kg
- Conveyor Height: 615 mm
- Conveyor Load Capacity: 165 kg evenly distributed
- Generator Voltage: 100 kV
- Steel Penetration: 9 mm guaranteed
- Wire Resolution: 38 AWG guaranteed
- Beam Direction: Vertically upward
- Cooling: Oil and forced air
- Operating Temperature: 0°C to 40°C
- Compliance: CE, FCC, IEC
The XRC 50-30LC T (100kV)
Product Family
XRC 50-30 P
XRC 50-30P x-ray device facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate and offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator
XRC 50-30 SE
The XRC 50-30SE is one of the smallest tunnel sizes in the XRC baggage and parcel product range, featuring single-energy (SE) diode array technology. It's specifically designed for locations with limited operating space, providing excellent image quality for detecting inorganic threats while maintaining economical operation. The system is ideal for scanning small handbags, packages, parcels, and cabin baggage in detail.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator
XRC 50-30 (100kV)
The XRC 50-30 (100kV) is a compact x ray baggage scanner designed for detailed inspection of small handbags, parcels, packages, and cabin baggage. Equipped with a 100 kV generator and multi diode imaging structure, it provides clear density based color imaging and material discrimination to support identification of potentially threatening objects such as cutting tools, explosives, and narcotics. Its space efficient design makes it suitable for courts, police facilities, government buildings, shopping malls, prisons, and hotels.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator

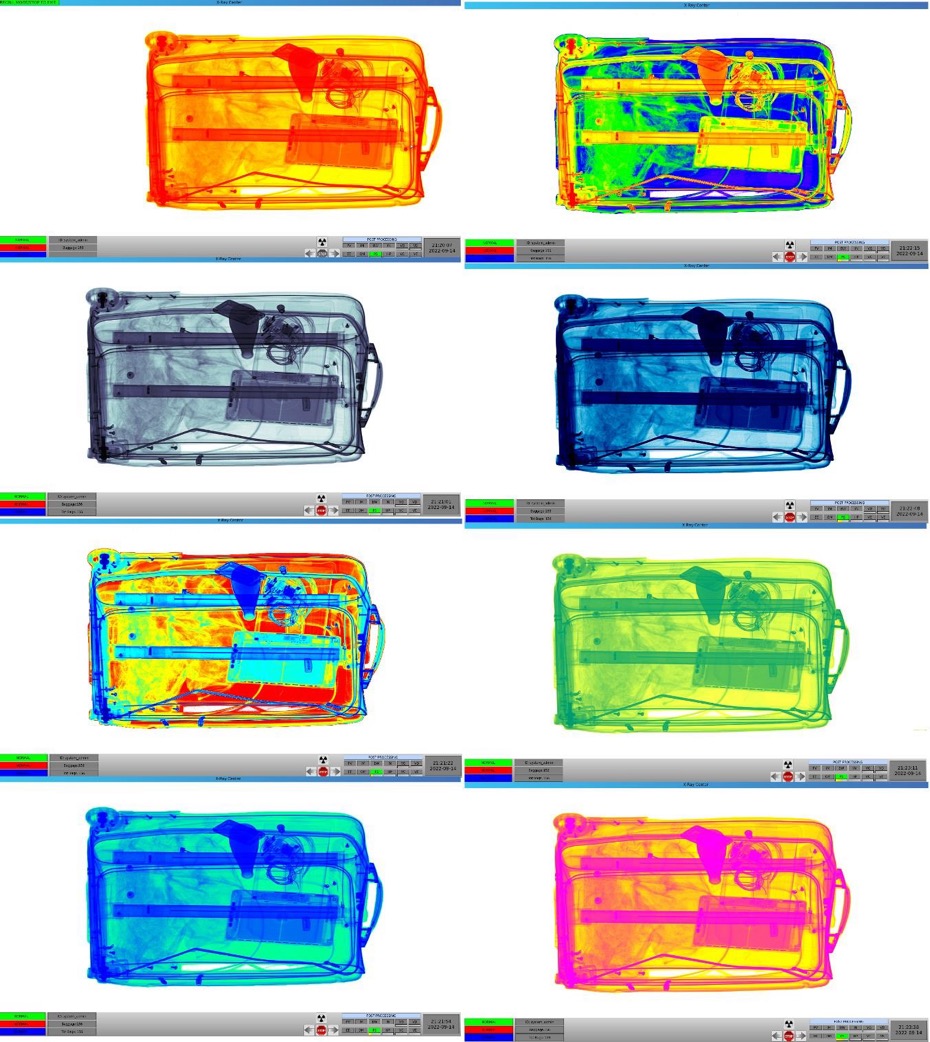

MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
