XRC 100-100 Large Parcel and Freight X-ray Scanner

Standard Baggage & Parcel Scanner

XRC 100-100

LARGE PARCEL AND FREIGHT

The XRC 100-100 is a large tunnel transmission X ray inspection system designed for screening oversized parcels, freight, and high volume cargo items. Positioned within the Large Parcel and Freight category, it provides a 1000 mm x 1000 mm tunnel opening suitable for bulky baggage, logistics shipments, palletized goods, and consolidated packages.

Equipped with a high voltage 180 kV generator operating at 160 kV and multi diode imaging technology, the system delivers strong penetration capability and reliable material discrimination. Density based color imaging enables clear differentiation of organic, inorganic, and mixed materials to support accurate identification of concealed threats.

The XRC 100-100 is engineered for high traffic environments where large item inspection is required without compromising image quality, operational stability, or safety compliance.

Technical & Functional

Key Features

XRC 100-100

Transmission X Ray Technology

Vertically downward beam configuration for full tunnel coverage.

High Voltage Generator

180 kV anode voltage operating at 160 kV with 1.0 mA tube current for strong penetration performance.

Steel Penetration

37 mm guaranteed and 39 mm typical penetration capability.

Wire Resolution

38 AWG guaranteed and 40 AWG typical resolution for fine object detection.

Multi Diode Imaging Structure

Density based color imaging with Low Z, Medium Z, High Z material classification to ±0.5 Z accuracy.

Threat Detection Support

Organic and inorganic hazard alarm functions assist operator decision making.

TIP and OTP Integration

Built in threat image projection and operator training program for performance enhancement.

Self Diagnosis System

Continuous monitoring of system status and operational parameters.

Parcel Counter and Generator Timer

Integrated usage tracking and operational monitoring tools.

Multi Language Interface

Supports multiple language options for international deployments.

Heavy-Duty Large Tunnel Freight Scanner

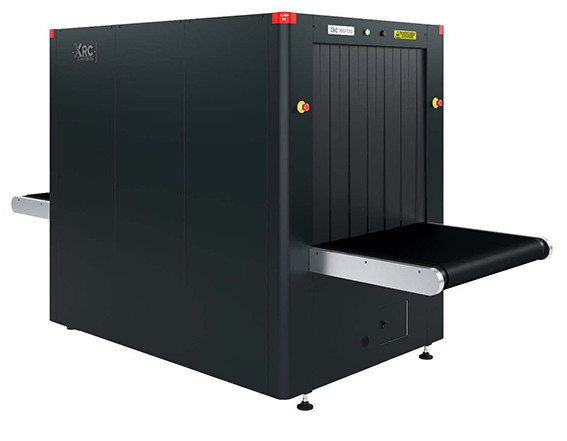

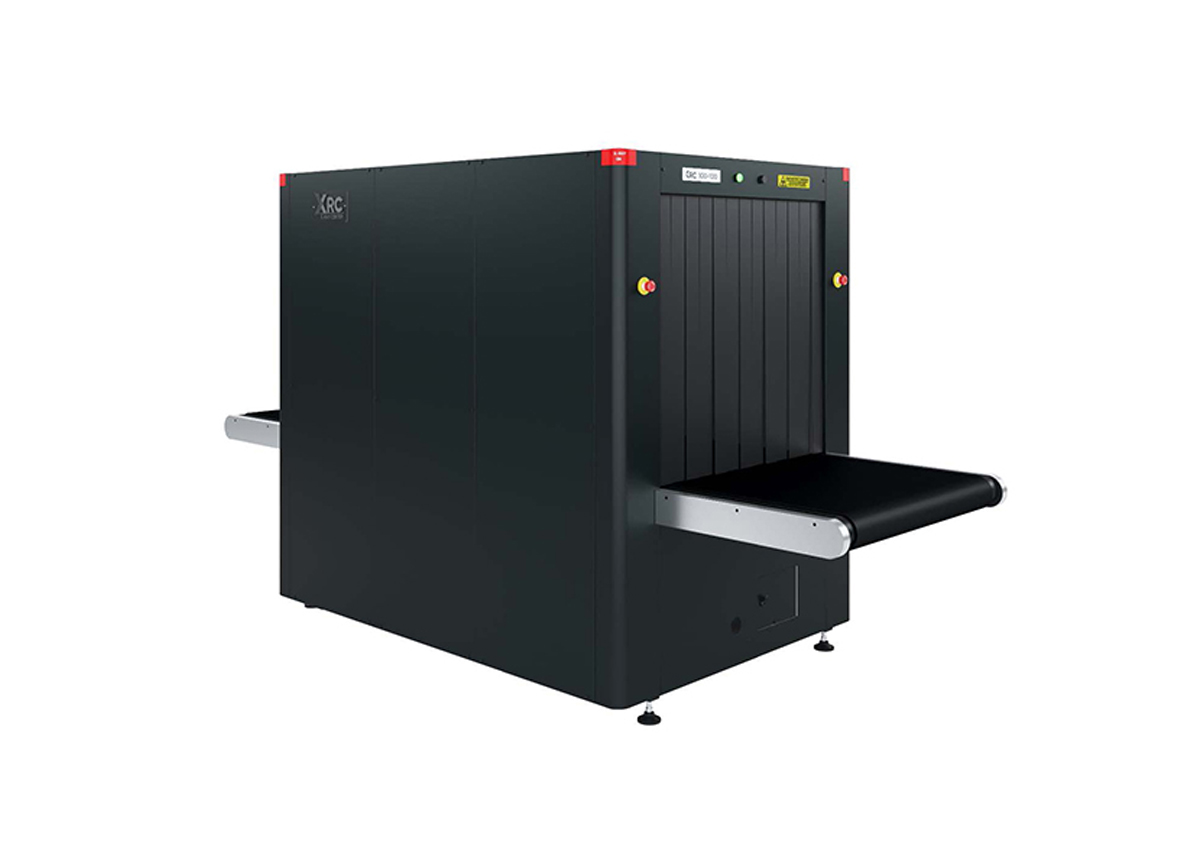

The XRC 100-100 large tunnel transmission X-ray scanner featuring a 1000 mm x 1000 mm inspection aperture, robust housing, and conveyor system designed for high-load parcel and cargo screening operations.

Material Detection and Penetration

Example X-ray image demonstrating density-based color coding for organic, inorganic, and mixed materials, supported by 200 kV generator power and high steel penetration capability for freight-level inspection.

Integrated Large Parcel Screening Workstation

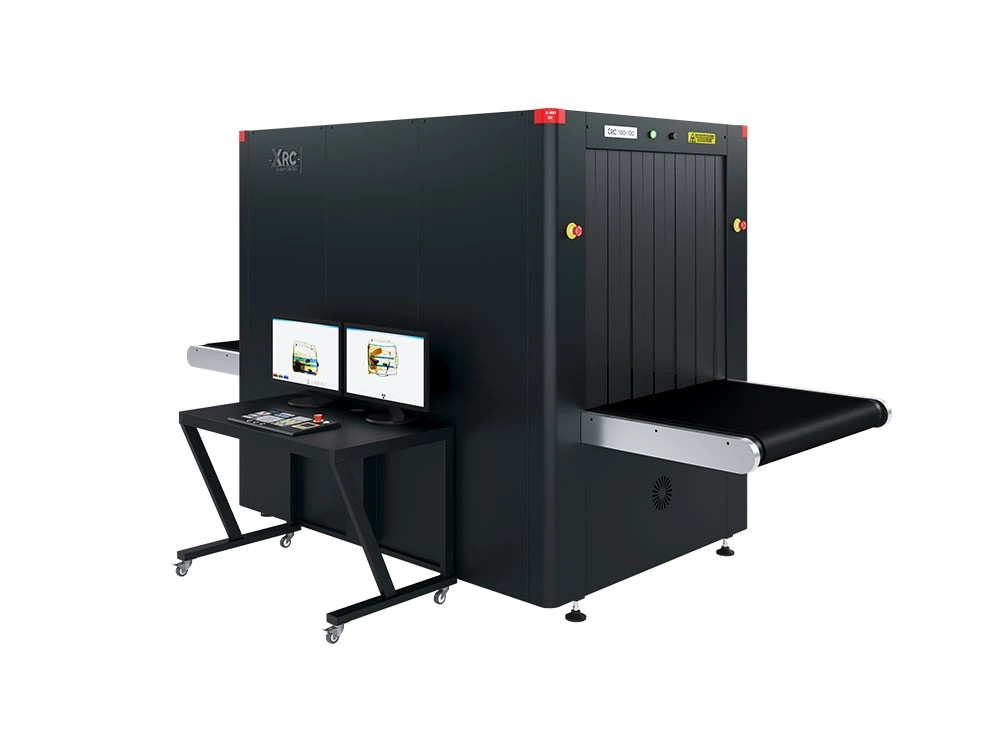

The XRC 100-100 configured with external dual-monitor operator console, enabling advanced image analysis, multi-energy material classification, and efficient inspection of large baggage and freight items.

Installation Layout and System Dimensions

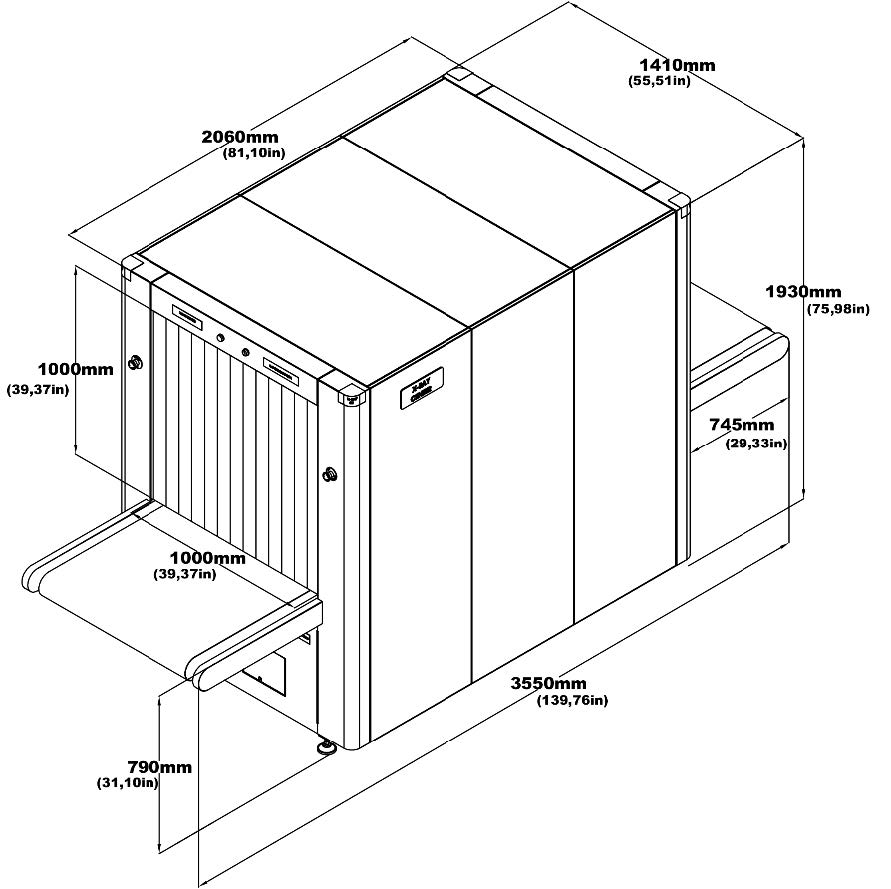

Technical drawing showing the XRC 100-100 system dimensions, including overall footprint, tunnel opening of 1000 mm x 1000 mm, conveyor height of 790 mm, and full system length of 3550 mm, supporting large parcel and freight screening installations.

Benefits & Applications

Client Benefits

Large Tunnel Capacity: Accommodates oversized parcels, freight items, and consolidated shipments within a 1000 mm x 1000 mm inspection area.
High Penetration Capability: 180 kV generator enables inspection of dense or layered cargo items.
Clear Material Identification: Multi energy imaging improves differentiation between organic, inorganic, and mixed materials.
High Throughput Operation: Designed for busy logistics and cargo environments requiring continuous screening.
Operational Reliability: Oil and forced air cooling system ensures stable long term operation.
System Integration Flexibility: Compatible with NSS, remote viewing, smart card login, and barcode systems.

Use Cases

Airports and Border Crossings: Screens oversized baggage, freight, and consolidated cargo at secure checkpoints.
Customs Inspection Points: Examines large parcels and commercial shipments for prohibited or undeclared materials.
Distribution Centers and Logistics Hubs: Supports high volume inspection of incoming and outgoing freight.
Courier and Cargo Facilities: Enables screening of consolidated shipments and oversized packages.
Government and Security Facilities: Inspects bulk deliveries entering controlled administrative sites.
Critical Infrastructure Sites: Secures goods entry at energy, transport, and industrial facilities.

Integration & Compatibility

Network Supervisory System NSS: Centralized monitoring and management capability.
Remote Viewing Station: Allows image review from remote operator workstations.
External Camera Archiving: Supports image storage and evidence documentation.
Smart Card Login: Provides controlled operator authentication.
Barcode Reader Integration: Enables parcel tracking and identification linkage.
Recheck Station Support: Allows secondary inspection and image review workflows.

Deployment Options

Installation Type: Floor mounted transmission X-ray system designed for fixed security checkpoints.
Operational Environment: Indoor installation in controlled security areas.
Site Requirements: Requires stable power supply and sufficient floor space for safe baggage flow and operator positioning.
Operational Layout: Designed for integration into structured checkpoint layouts with controlled entry and exit flow.

Technical Specifications

Tunnel Size: 1000 mm x 1000 mm.
System Dimensions (L x W x H): 3550 mm x 1930 mm x 1410 mm.
Approximate Weight: ~1165 kg.
Anode Voltage: 180 kV (operating at 160 kV).
Tube Current: 1.0 mA.
Steel Penetration: 37 mm guaranteed; 39 mm typical.
Wire Resolution: 38 AWG guaranteed; 40 AWG typical.
Material Discrimination: Low Z, Medium Z, High Z classification with ±0.5 Z accuracy.
Beam Direction: Vertically downward.
Conveyor Load Capacity: 200 kg evenly distributed.
Conveyor Height: 790 mm.
Conveyor Speed: 0.20 m/s forward or reverse.
Power Supply: 110/220V AC ±10%, 50/60 Hz, 5A max.
Cooling System: Oil and forced air cooling.
Processor: Intel Core i5 or better.
Memory: 4 GB RAM or more.
Storage: 1 TB HDD or more.
Operating System: Linux.
Radiation Emission: Maximum 0.1 mR/hour at exterior panels.

XRC 100-100HCDV

Product Family

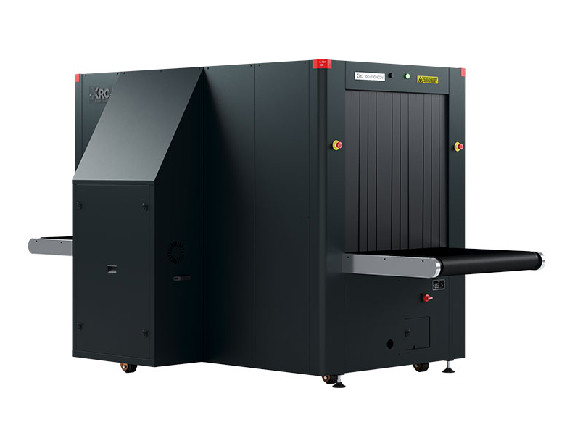

XRC 100-100HCDV x-ray baggage scanner has high coonveyor unit and dual view system together. The machine itself facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate.

Thanks to its multi-diode structure and quality in imaging of scanned objects, image is colored based on density and shows organic, inorganic and mixed materials in different tones. With the help of 2 generator sources, it provides high resolution and detailed imaging in horizontal and vertical angles. The images can be accessed with a single scan without the need to re-place the packages in a different orientation. Thus, hidden objects in the luggage are detected more easily and quickly It is designed with the latest technology to scan medium and large bags and packages. Post offices high traffic checkpoints as city transportation (metro, ferry, train stations), customs border crossings, prisons, and courier depots, like international logistics companies, goods acceptance points and etc. are its main areas of application.

Key features of XRC 100-100HCDV :
