SENTINEL CT
Fixed-Gantry CT Baggage Screening
The uniXSCAN SENTINEL CT is a high-performance computed tomography screening system designed for advanced inspection of baggage and parcels in security critical environments. The system uses a fixed-gantry architecture that eliminates rotating components, reducing mechanical complexity while improving system reliability, uptime, and maintenance efficiency.
Unlike conventional CT systems, the uniXSCAN SENTINEL CT integrates multiple interlaced X-ray generators and detector arrays that scan from different angles to create high-resolution 3D volumetric reconstructions. This multi-axis scanning approach enables operators to analyze the internal structure of baggage in detail and detect concealed threats with high accuracy.
The system supports detection of explosives, liquids, and other prohibited materials using advanced imaging and analytical methods. Its design is optimized for high-throughput checkpoint environments, enabling efficient and reliable screening operations across airports, border crossings, government facilities, and critical infrastructure.
Key Features
SENTINEL CT

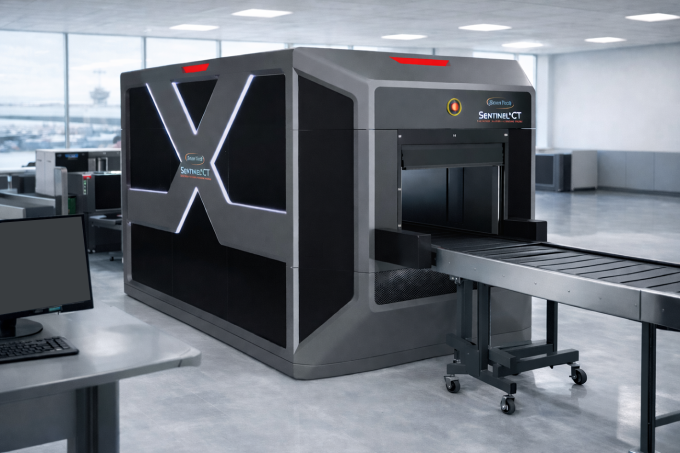

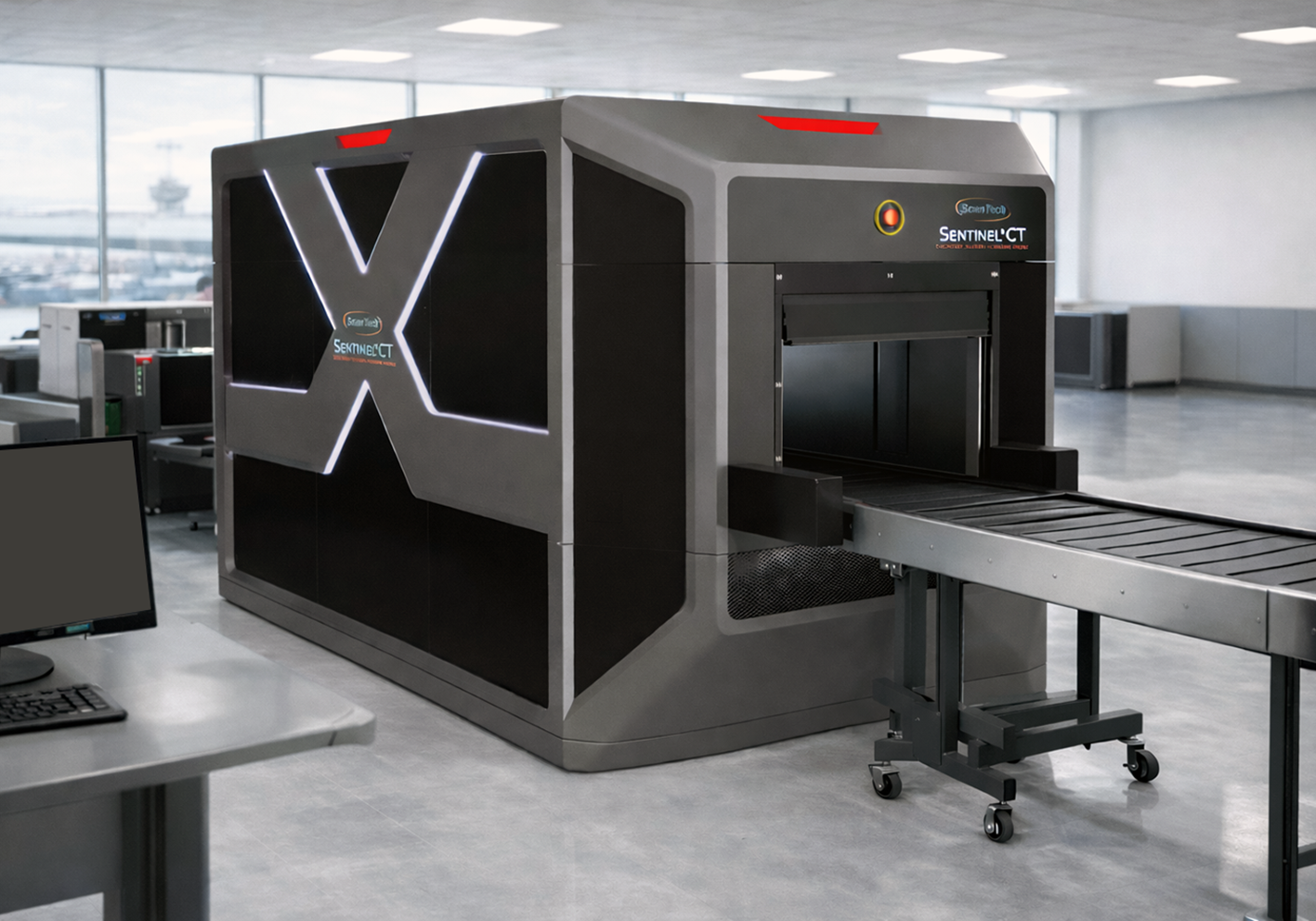

FIXED-GANTRY CT SYSTEM IN OPERATION

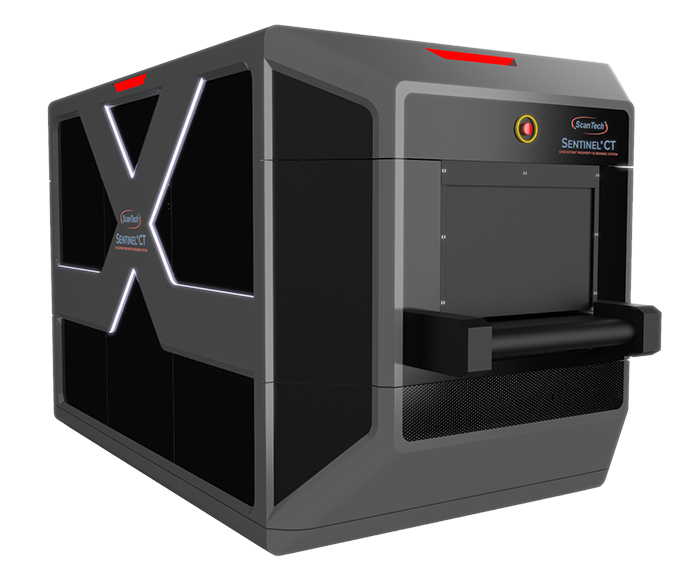

COMPACT CT SCREENING UNIT

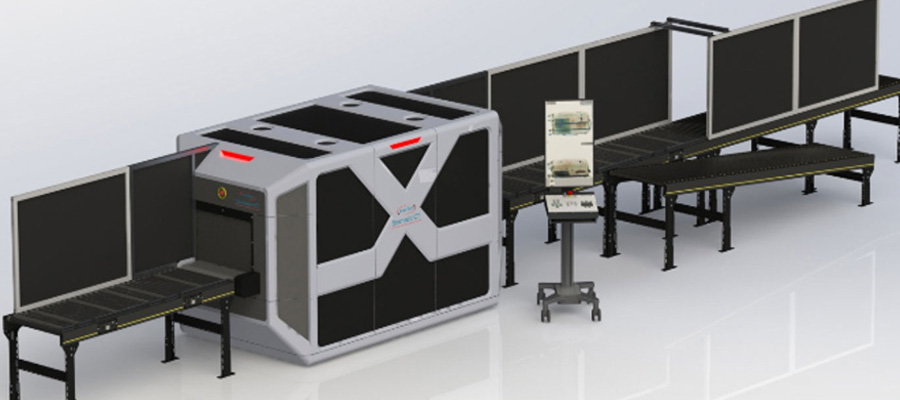

INTEGRATED SCREENING SETUP

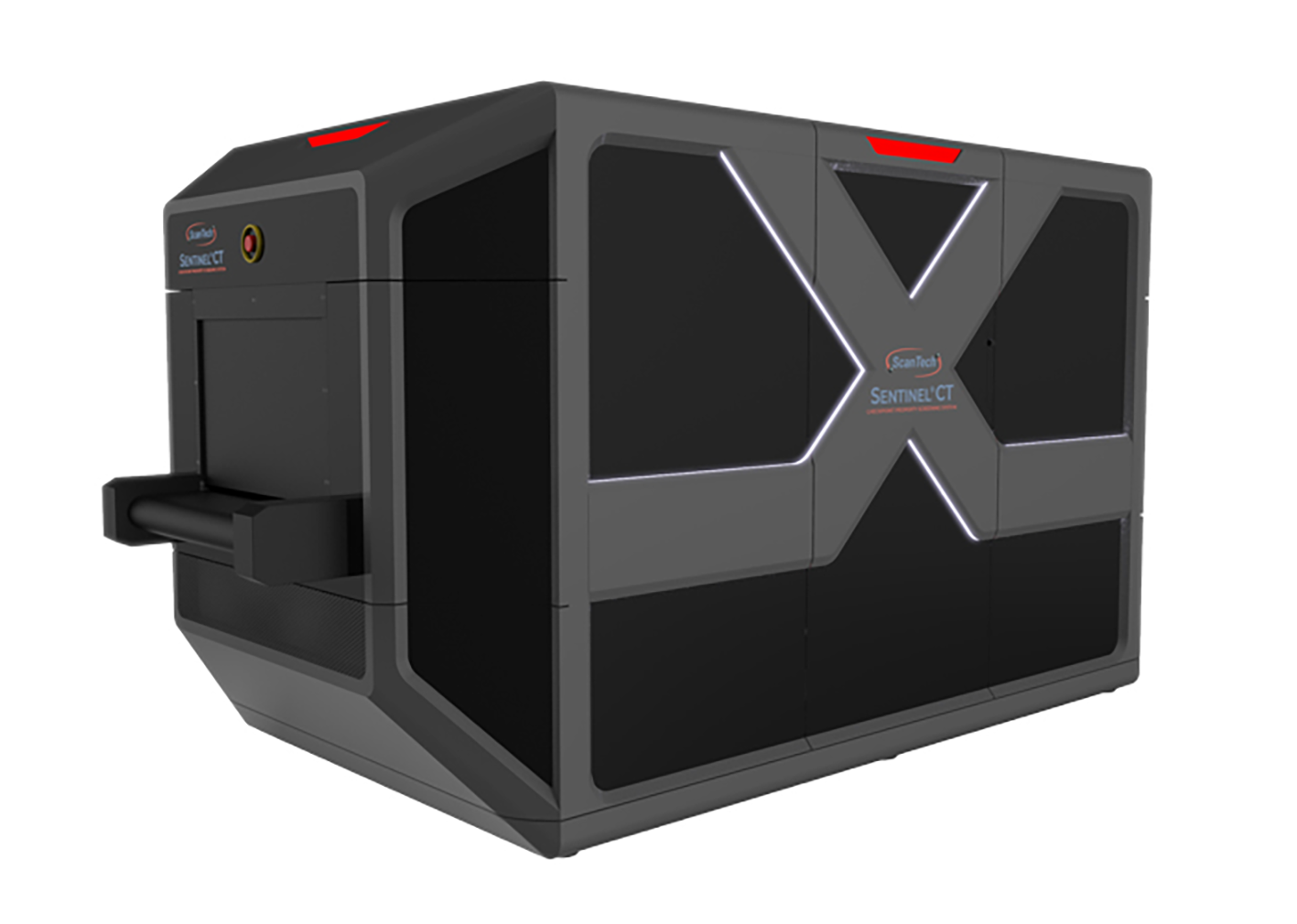

ENCLOSED GANTRY STRUCTURE

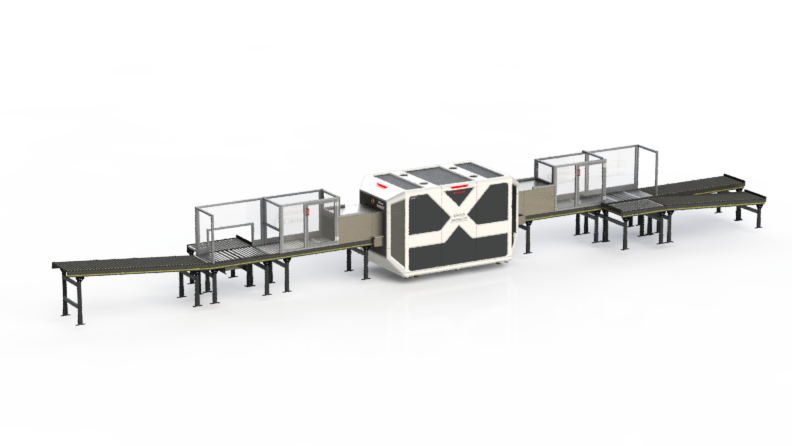

EXTENDED CONVEYOR INTEGRATION
Benefits & Applications
Client Benefits
- Enhanced Threat Detection: Improves identification of explosives, liquids, and concealed prohibited items in complex baggage.
- Reduced False Alarm Rates: Advanced analysis improves differentiation between hazardous and non-hazardous materials.
- Lower Maintenance Costs: Fixed-gantry design reduces moving parts, minimizing servicing and downtime.
- Improved Operational Efficiency: High throughput supports fast and continuous screening in busy checkpoint environments.
- Reliable System Performance: Stable architecture ensures consistent imaging and long-term operational reliability.
- Reduced Infrastructure Requirements: Lower weight and power consumption reduce installation and operational costs.
- Faster Deployment: Delivered as a complete system requiring minimal on-site assembly.
Use Cases
- Airport Security Checkpoints: Screening of passenger baggage in high-throughput aviation environments.
- Border Crossings: Inspection of luggage and parcels entering controlled territories.
- Government Facilities: Security screening of items entering sensitive or restricted buildings.
- Critical Infrastructure Protection: Inspection of materials entering energy facilities, data centers, and other high-risk locations.
- Customs and Law Enforcement: Detection of prohibited items, contraband, and hazardous materials.
- Transportation Hubs: Screening operations in metro, rail, and ferry terminals.
Integration & Compatibility
- Checkpoint Integration: Compatible with existing conveyor systems and checkpoint infrastructure.
- Security Workflow Integration: Supports integration into standard baggage screening procedures.
- System Architecture Compatibility: Designed to operate within multi-layered security environments.
- Operator Systems: Compatible with standard monitoring and control interfaces used in security operations.
Deployment Options
- Checkpoint Installation: Designed for fixed installation at airport and transportation security checkpoints.
- Integrated Screening Systems: Can be deployed as part of complete baggage handling and inspection systems.
- Modular Deployment: Delivered as a complete system with minimal installation requirements.
- High-Traffic Environments: Suitable for continuous operation in busy screening locations.
Technical Specifications
- Scanning Architecture: Fixed-gantry CT system with multi-angle X-ray generators and detector arrays.
- Imaging Method: 3D volumetric reconstruction using multi-axis scanning.
- Throughput: 800+ bags or parcels per hour.
- System Design: Minimal moving parts, limited to conveyor and cooling components.
- Power Requirements: Standard 120V or 240V single-phase operation.
- Operating Environment: 0°C to 40°C, up to 95% non-condensing humidity.
- Display System: Ultra-high-definition 4K monitor with operator console.
Compliance and Certification
- Explosive Detection Certification: TSA Tier 2 certified.
- Safety Certification: UL safety and EMC certified.
- Additional Certifications: ECAC Standard 3 and TSA CPSS certifications pending.
