XWJ2-S

STATIONARY JAMMING SYSTEM

unival’s powerful XWJ2-S jamming systems are capable of completely suppress all RF communication signals in small and large defined areas. Due to its modular design, the unival XWJ2-S can be adopted to various perimeter dimensions and jamming operations. XWJ2-S can be connected to command and control centers via ethernet or fiber optic cables. Like for all other modular XWJ2 jamming systems, the XWJ2-S is fully digitally controlled (DDS/ FPGA) and freely programmable.

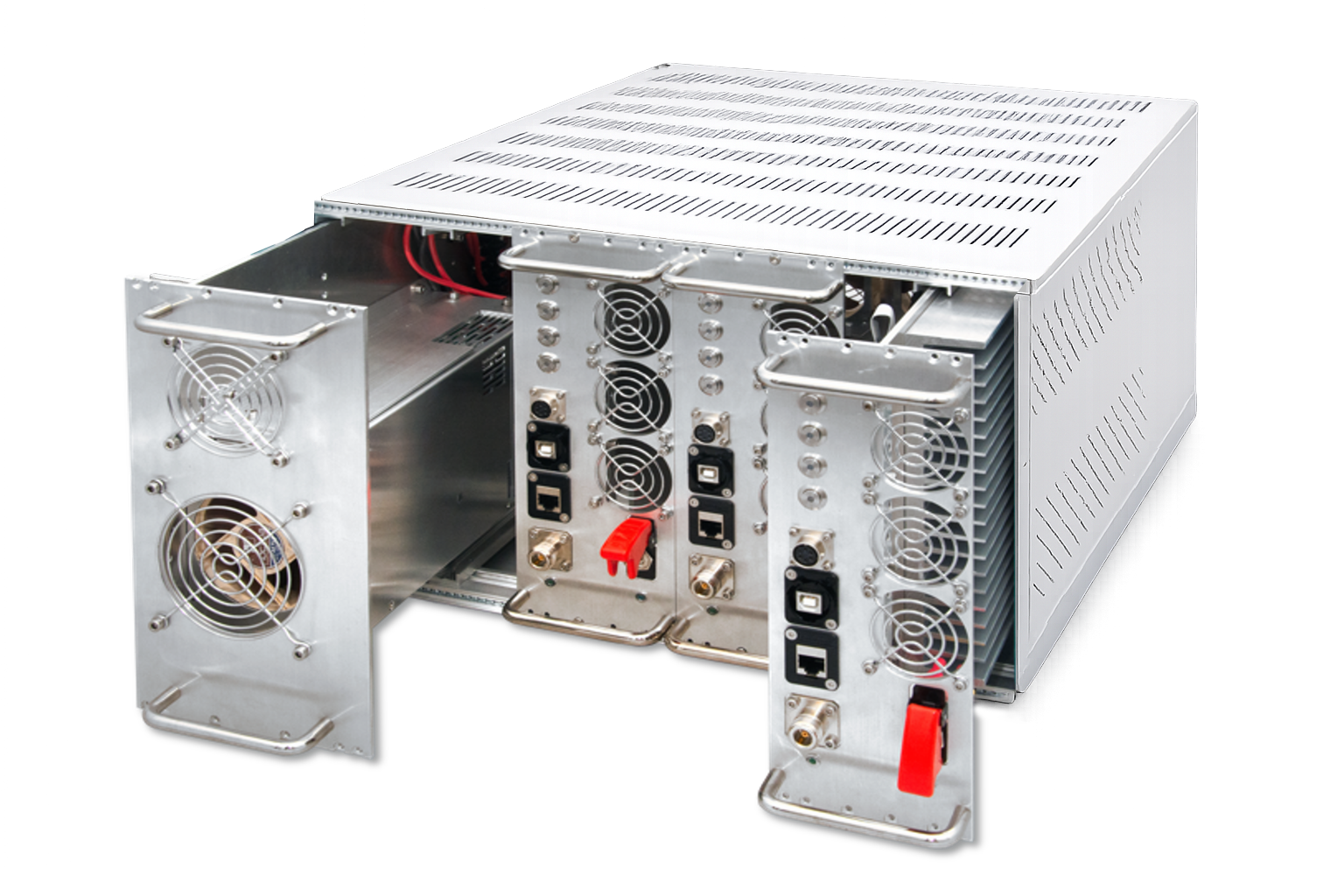

MODULAR DESIGN WITH RACK INSERTS FOR STATIONARY JAMMING APPLICATIONS

Each XWJ2-S jamming module comes with its own broadband or band-specific amplifier, active- and passive cooling and DDS board (20 MHz – 7.2 GHz). Output power per module is 20 W – 150W in the frequency range 20 MHz up to 6 GHz. Other configurations on request.

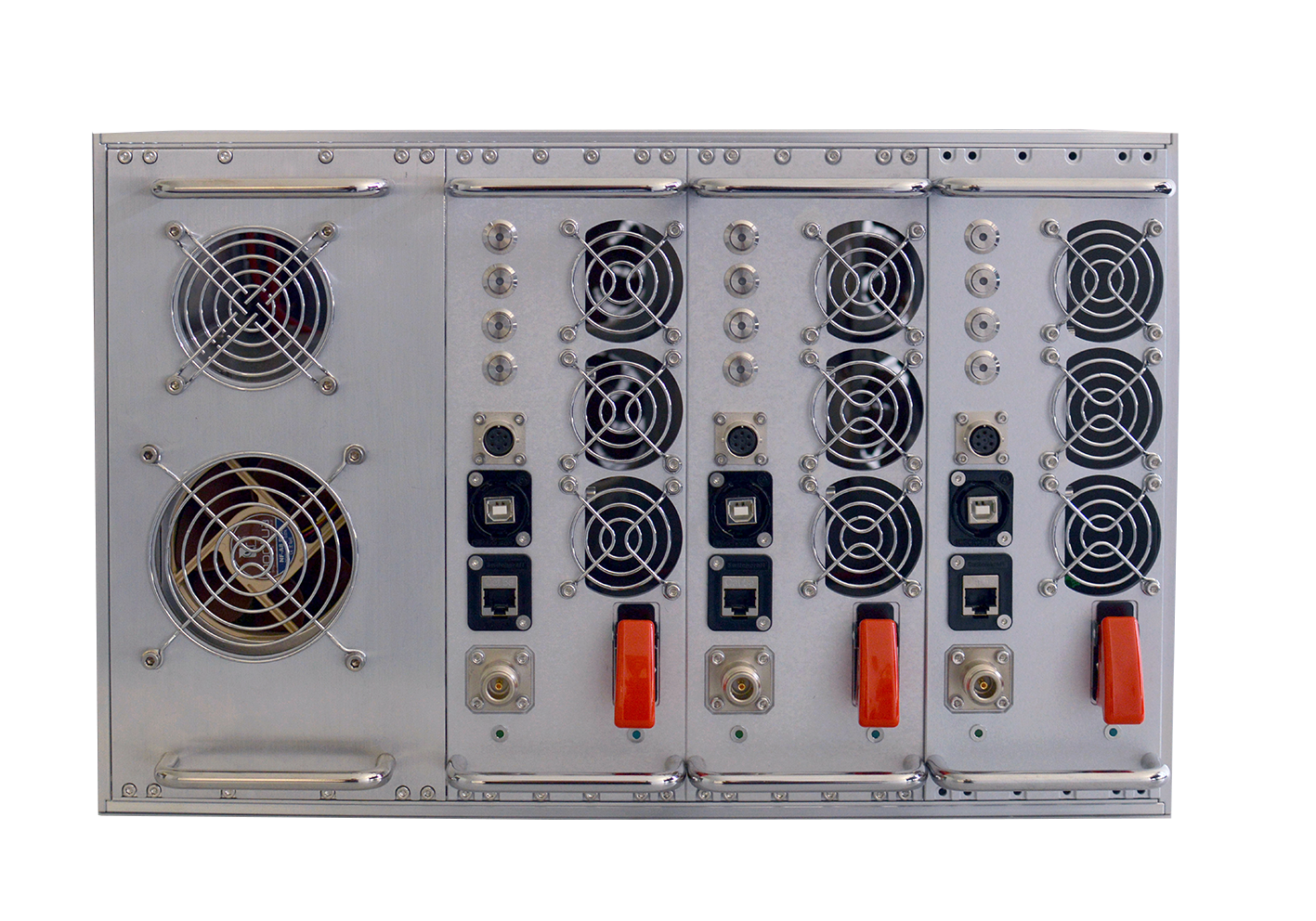

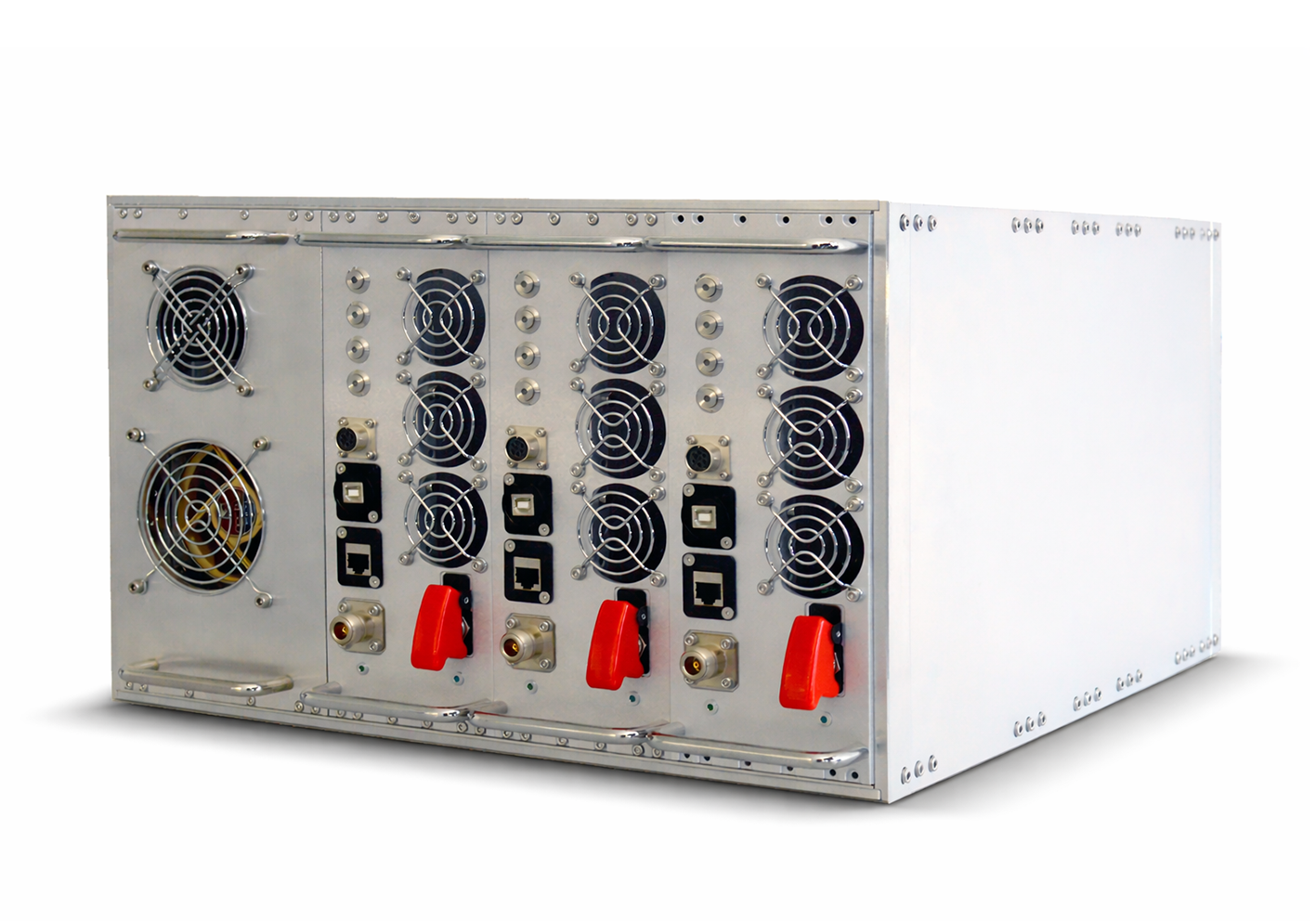

In this picture there are  three jamming modules and the power supply module for stationary jamming applications on the mains power supply 110 V/ 220 V.

SMART DIGITAL JAMMING SYSTEM

Fully engineered and manufactured in Germany. Freely and individually programmable for multiple start/ stop frequencies, jamming modes, output power, modulation & other parameters for maximum jamming signal performance and efficiency.

HIGH EFFICIENT STATIONARY (FIXED-INSTALLED) JAMMING (IN- AND OUTSIDE)

The XWJ2-S is designed for maximum efficiency and can suppress frequency bands with sufficient output power, adopted to building dimensions, outdoor area dimensions and locations and related threat scenarios.


VERSATILE JAMMING MODES

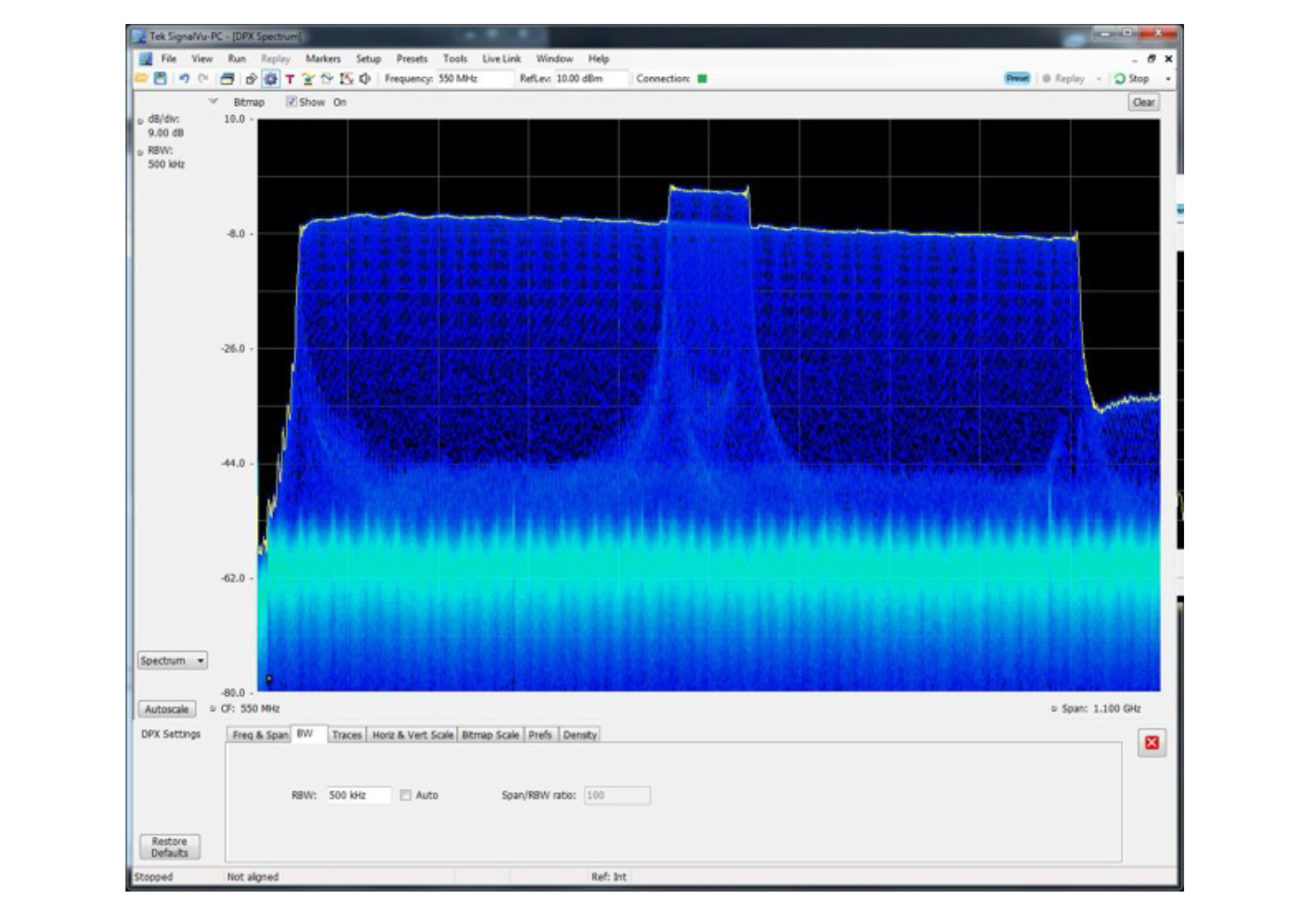

The XWJ2-S uses various individually programmable jamming modes to counter threat frequencies most efficiently, such as Sweep, Barrage, Spot, Hopping, Band-selective, Channel raster and others.

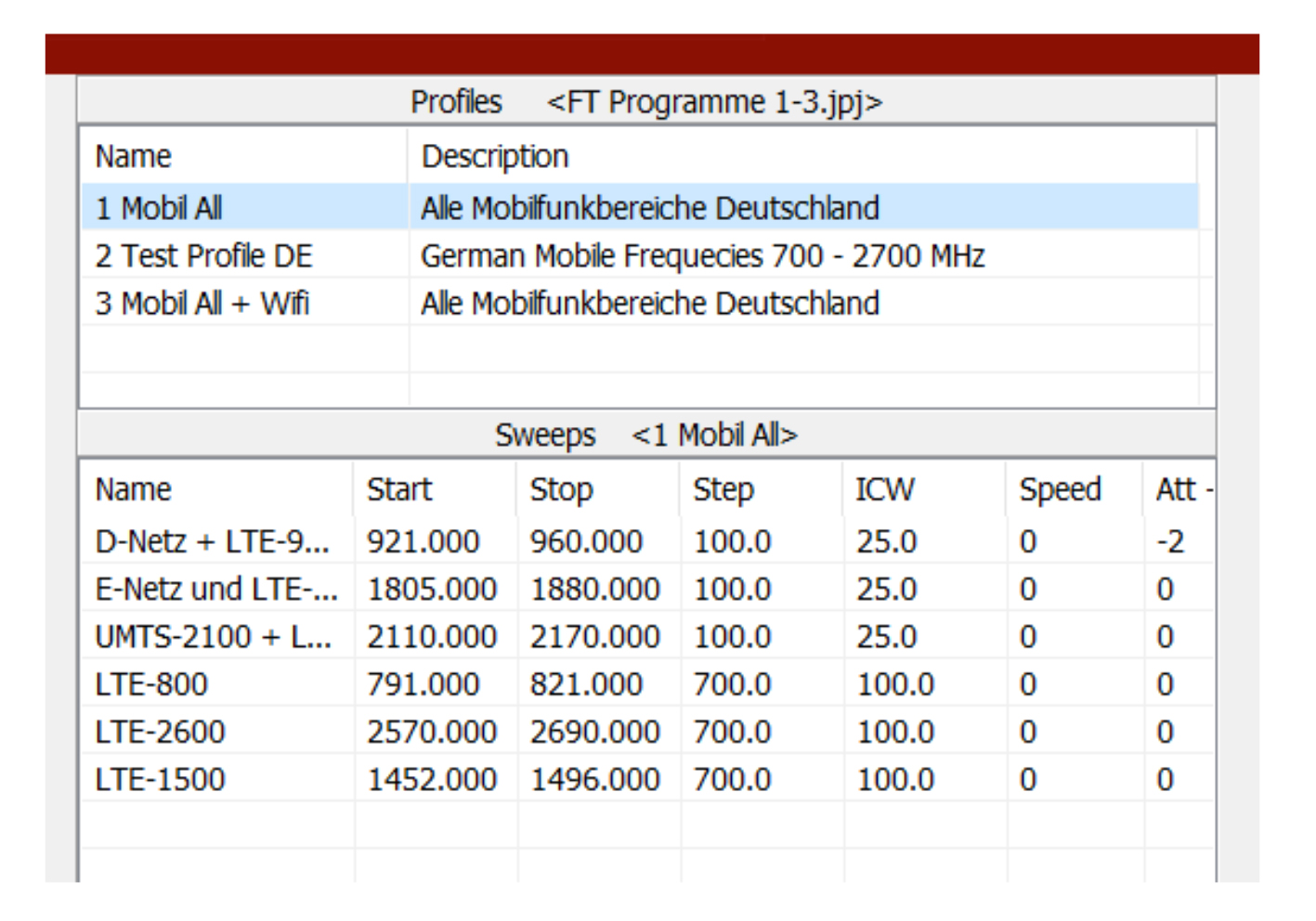

PRE-PROGRAMMED JAMMING PROFILES

The XWJ2-S can be pre-programmed with up to 50 different jamming profiles to react to different jamming scenarios.

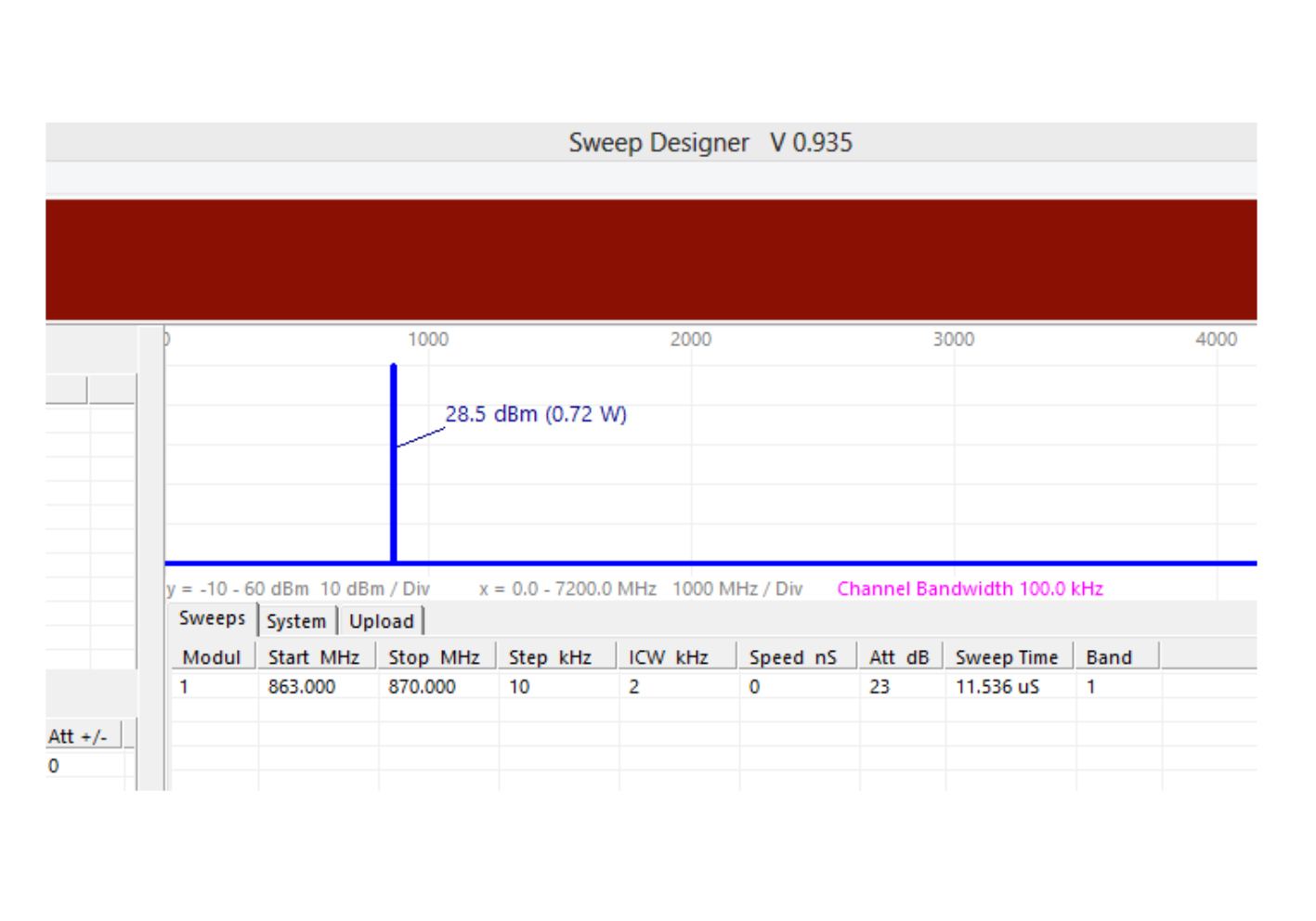

INTUITIVE PROGRAMMING SOFTWARE

The XWJ2 JAMMING SOFTWARE provides a clear GUI with automatic setup algorithms. User-friendly through automatic jamming performance optimization.

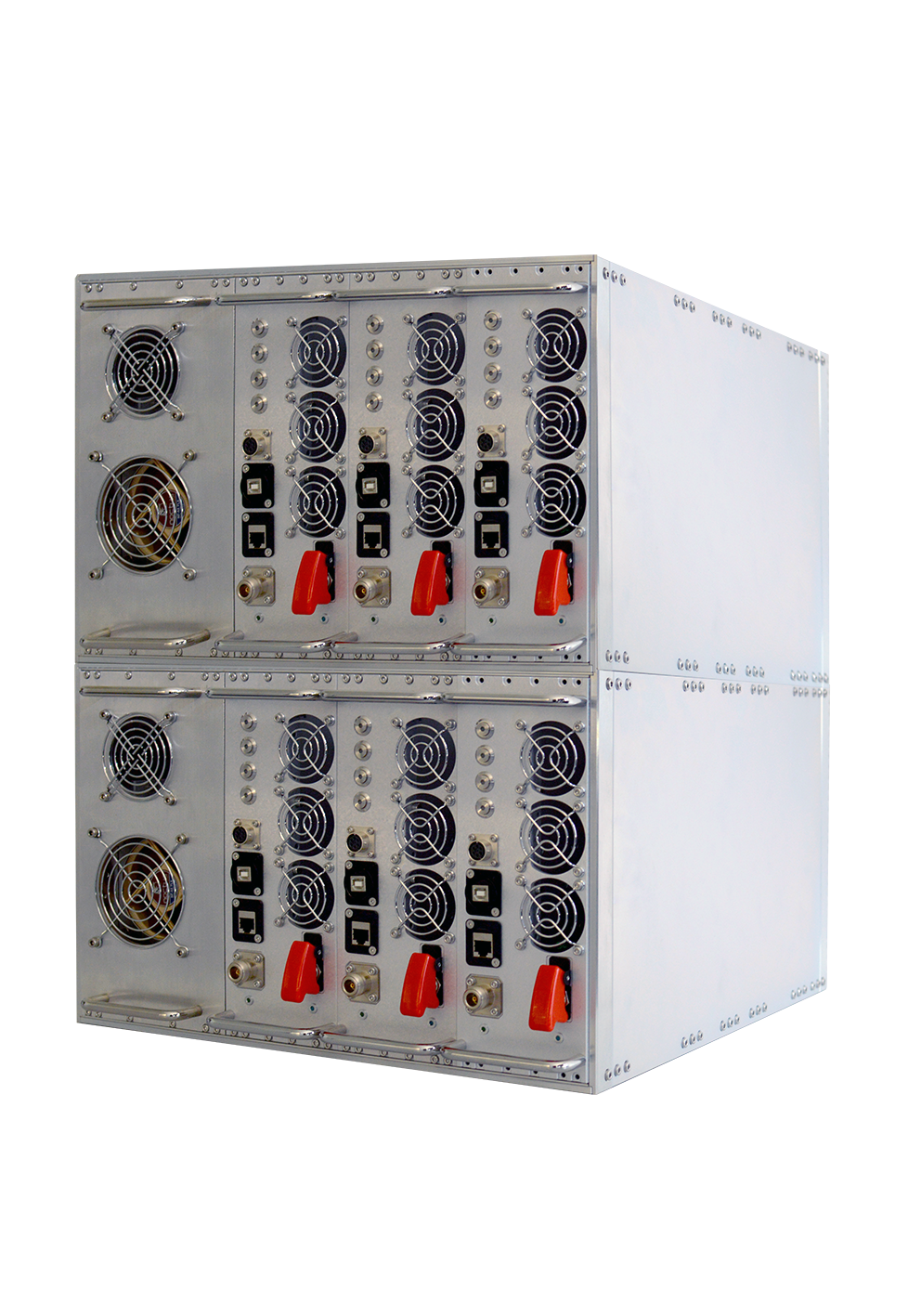

MODULAR SYSTEM

The XWJ2-S consists of different jamming modules and can be therefore easily exchanged, scaled and adapted according to mission parameters and for maintenance reasons. Upgradeable & future proof.


REAL-TIME STATUS MONITORING

The XWJ2-T provides real-time temperature and status monitoring, in order to protect the systems.
