HCM1
HANDHELD COUNTER-MONITORING DEVICE
The unival HCM1 is a portable handheld counter-monitoring device designed for fast field strength measurements and searching for concealed transmitting devices (bugs) in houses, offices, hotel rooms, vehicles, and on people. It detects and localizes transmission signals in the 10 MHz to 12 GHz frequency range, identifying potential eavesdropping threats in real-time. Made 100% in Germany to the highest quality standards.
Technical & Functional
Key Features
HCM1
HCM1

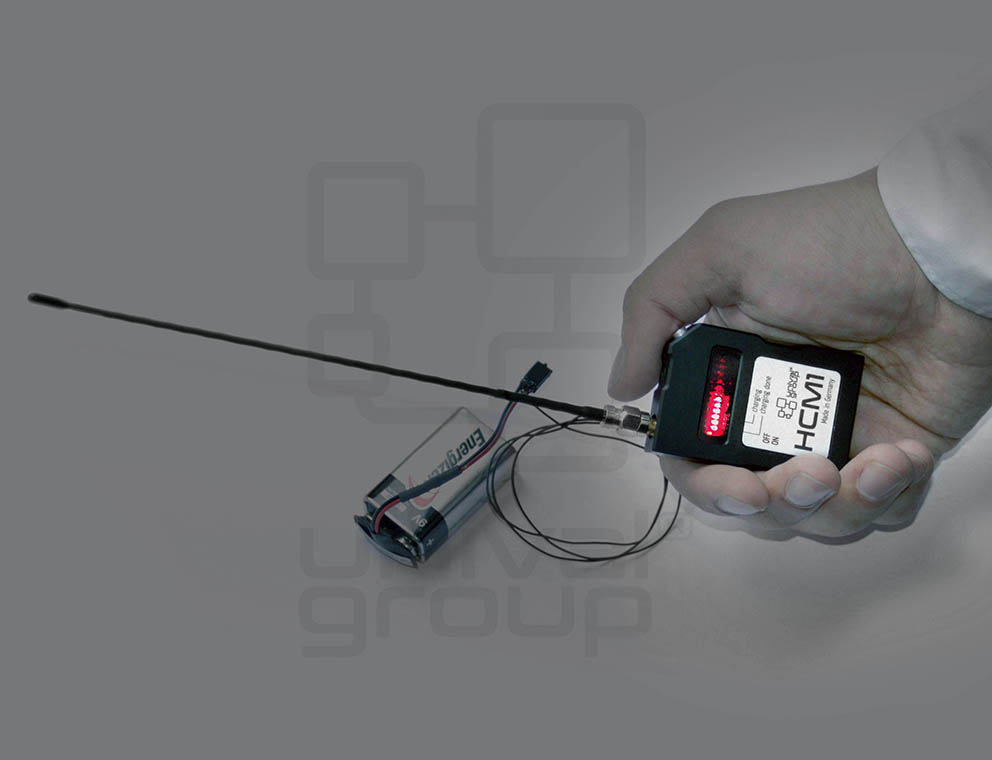

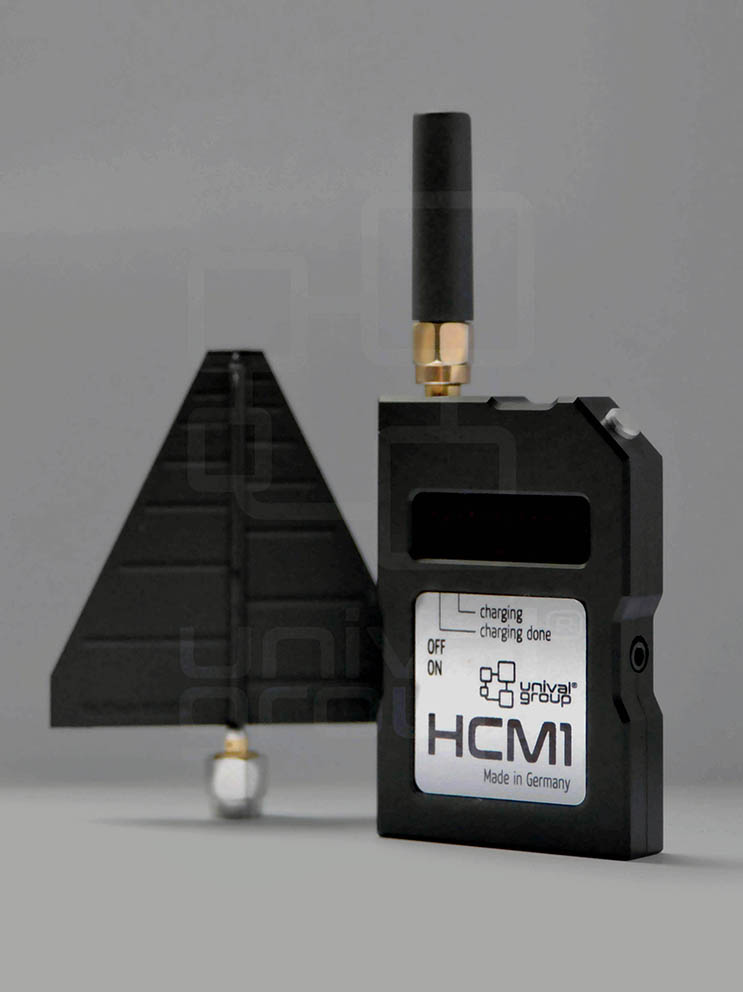

DETECTOR WITH OMNI-DIRECTIONAL ANTENNA
HCM1

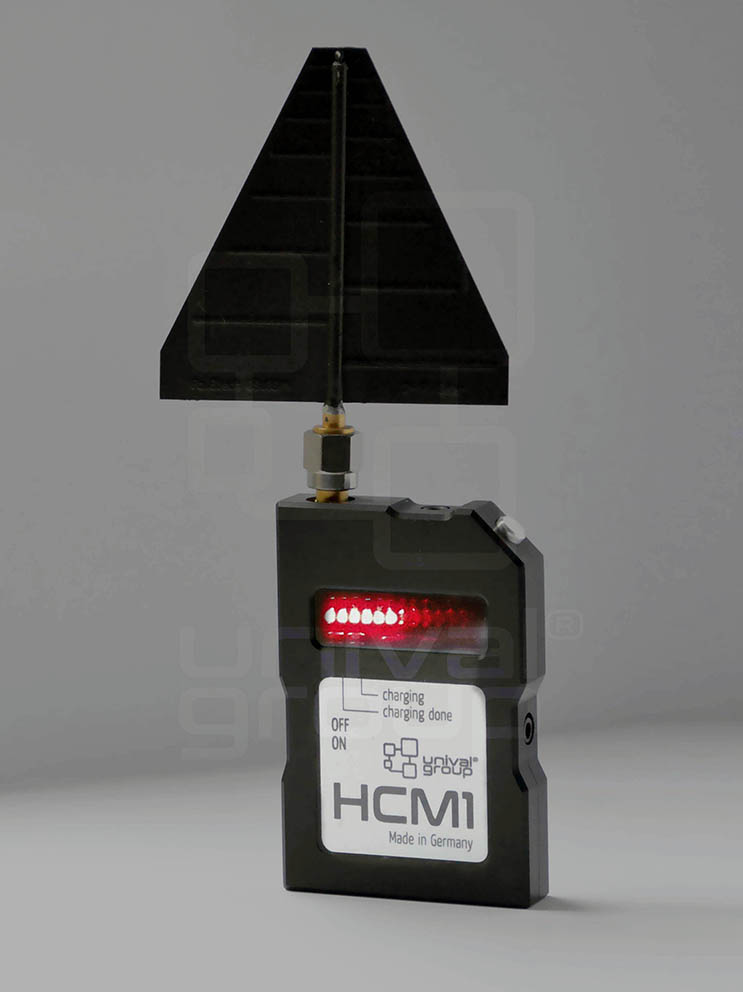

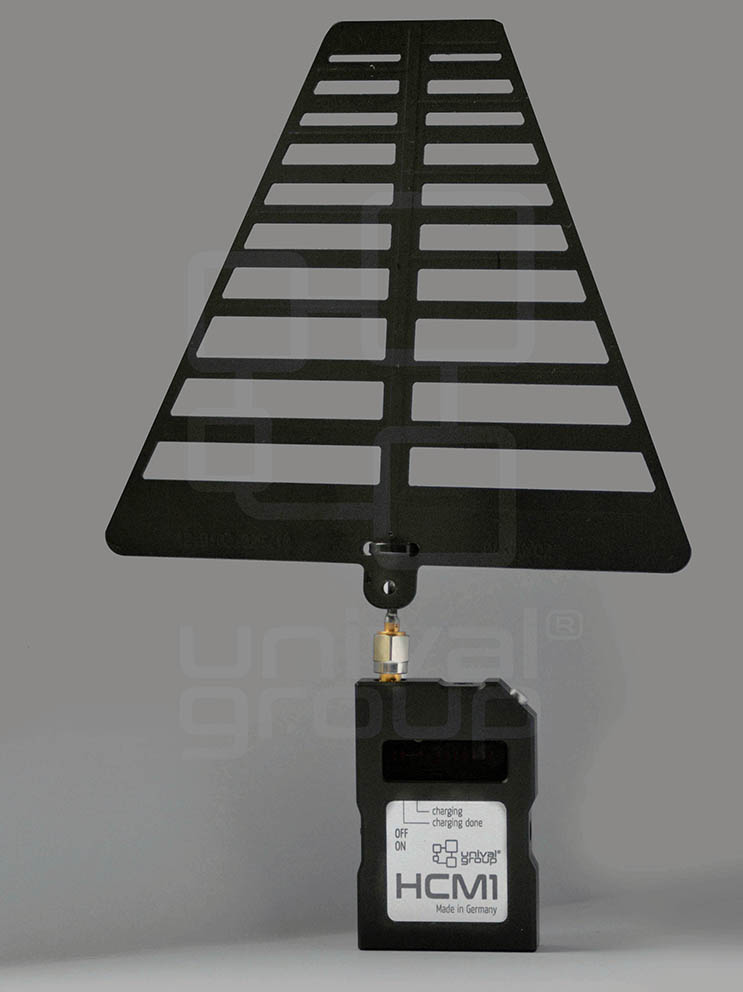

DETECTOR WITH LOGPER ANTENNA 2,000 MHz –12,000 MHz
HCM1

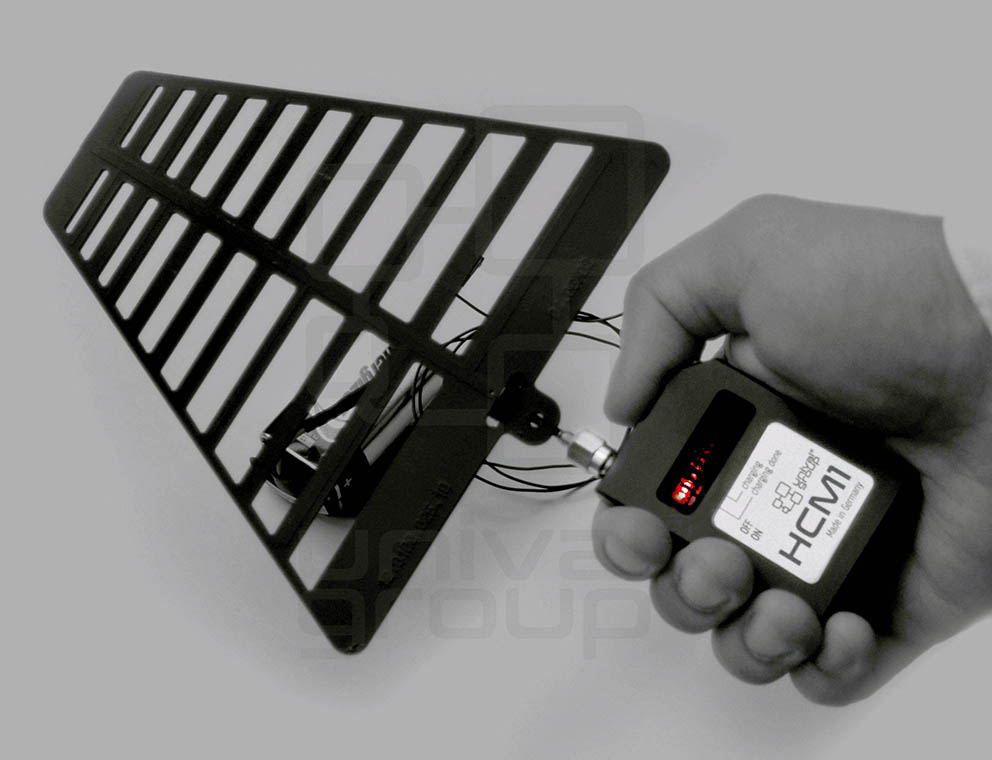

DETECTOR WITH LOGPER ANTENNA 800 MHz – 2,500 MHz
HCM1
DETECTOR DETECTING AN ANALOG TRANSMITTER
HCM1
DETECTOR USING DIRECTIONAL DETECTION
HCM1

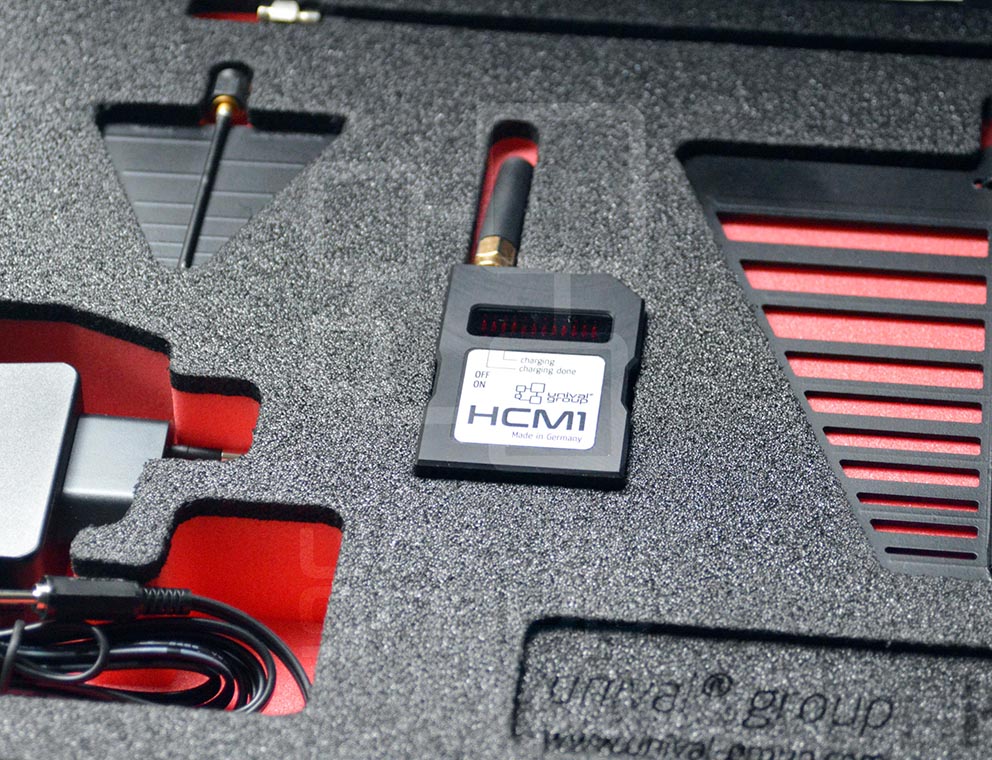

DETECTOR COMPLETE SET
Benefits & Applications
Key Functional Benefits
- Portable Design: Lightweight (40g with antenna) and compact (60 x 40 x 10 mm).
- Visual & Audible Alerts: LED display (12-point) and internal speaker/headset output.
- Real-Time Localization: Identifies position and strength of transmission devices.
- Discreet Operation: Can be used covertly in confined spaces (vehicles, elevators).
Client Benefits
- Comprehensive Detection: Covers all major transmission frequencies used by eavesdropping devices.
- Rapid Deployment: Detects and localizes transmitting devices within seconds.
- No False Alarms: Sensitivity adjustment eliminates false positives.
- Portable & Discrete: Ideal for undercover operations and rapid response.
- German Quality: 100% made in Germany with highest quality standards.
Use Cases
- VIP Security: Screening residences and vehicles for listening devices.
- Government Buildings: Detecting espionage equipment in sensitive areas.
- Military Operations: Counter-intelligence sweeps of facilities.
- Corporate Security: Protecting confidential meetings and facilities.
- Travel Security: Checking hotel rooms and conference spaces.
Integration & Compatibility
- Standalone Operation: Fully independent device requiring no external systems.
- Headset Compatibility: 2.5 mm headset jack for discreet audio monitoring.
Deployment Options
- Handheld: Portable for rapid deployment to any location.
- Undercover: Can be used discreetly in confined spaces.
Technical Specifications
- Feature: Specification
- Frequency Range: 10 MHz – 12,000 MHz
- Input Impedance: 50 Ohm
- Display: 12-point LED display
- Battery Type: Lithium-Polymer (3.7V)
- Operating Time: 3 hours per charge
- Charging Time: 1.5 hours
- Dimensions: 60 x 40 x 10 mm (without antenna)
- Weight 40 g (with omnidirectional antenna)
- Modulation Methods FM, NFM, WFM, AM, PCM, PAM, DECT, WLAN, GSM, Spread Spectrum, SSB
