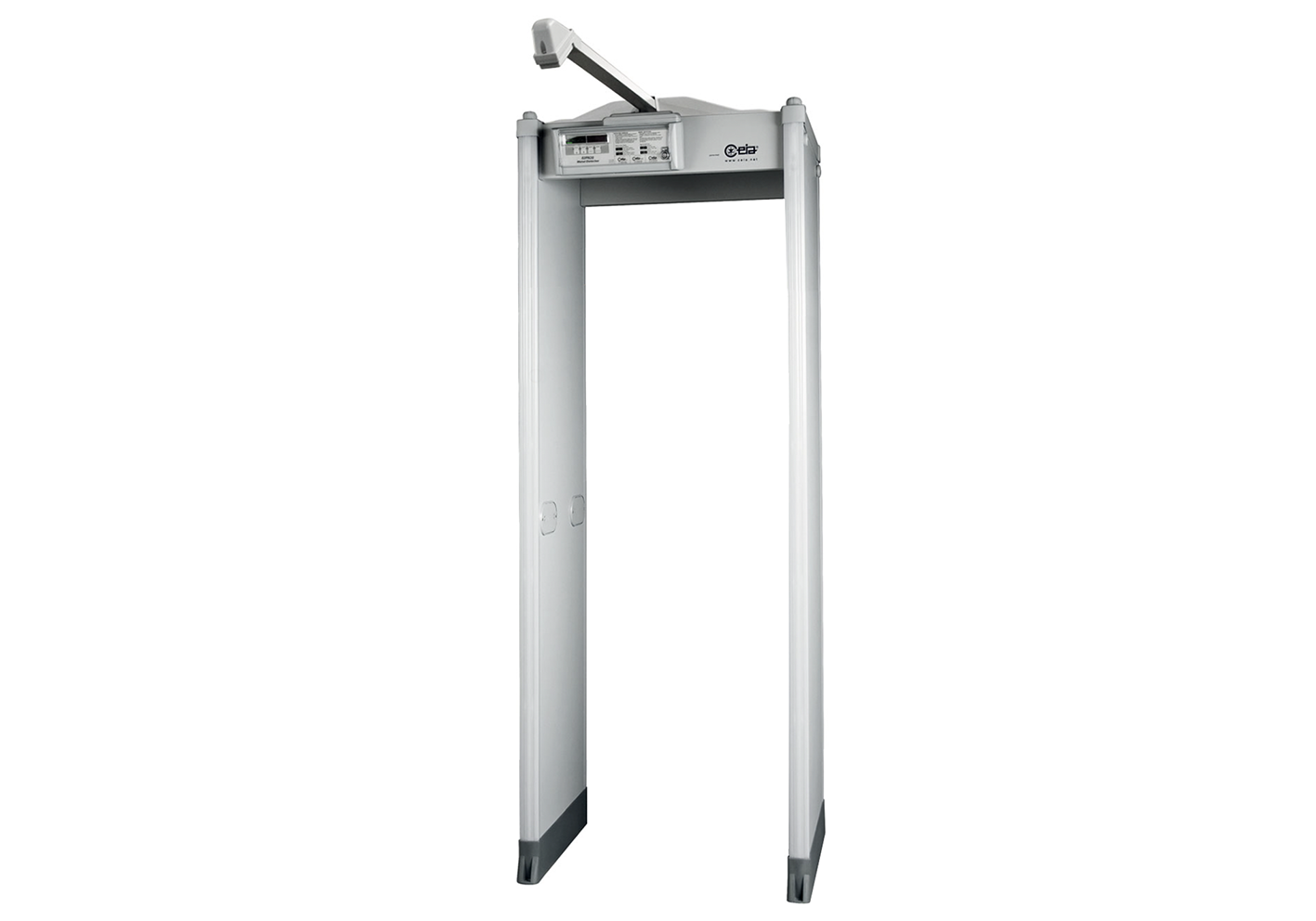

CEIA 02PN20 Elliptic
The CEIA 02PN20 Elliptic is an enhanced multi zone walk through metal detector designed for high security screening environments requiring advanced threat detection, precise localization, and high throughput operation. Built with a robust elliptic heavy duty structure, the system detects magnetic, non magnetic, and mixed alloy metal threats while reducing nuisance alarms from personal metal items.
Advanced vertical and lateral multi zone localization, fully digital architecture, and automatic calibration support reliable and efficient screening in demanding indoor and outdoor environments.
Download
Subscribe to download
Download
Download link sent to your email!
Key Features
CEIA 02PN20 Elliptic
Enhanced Multi Zone Screening

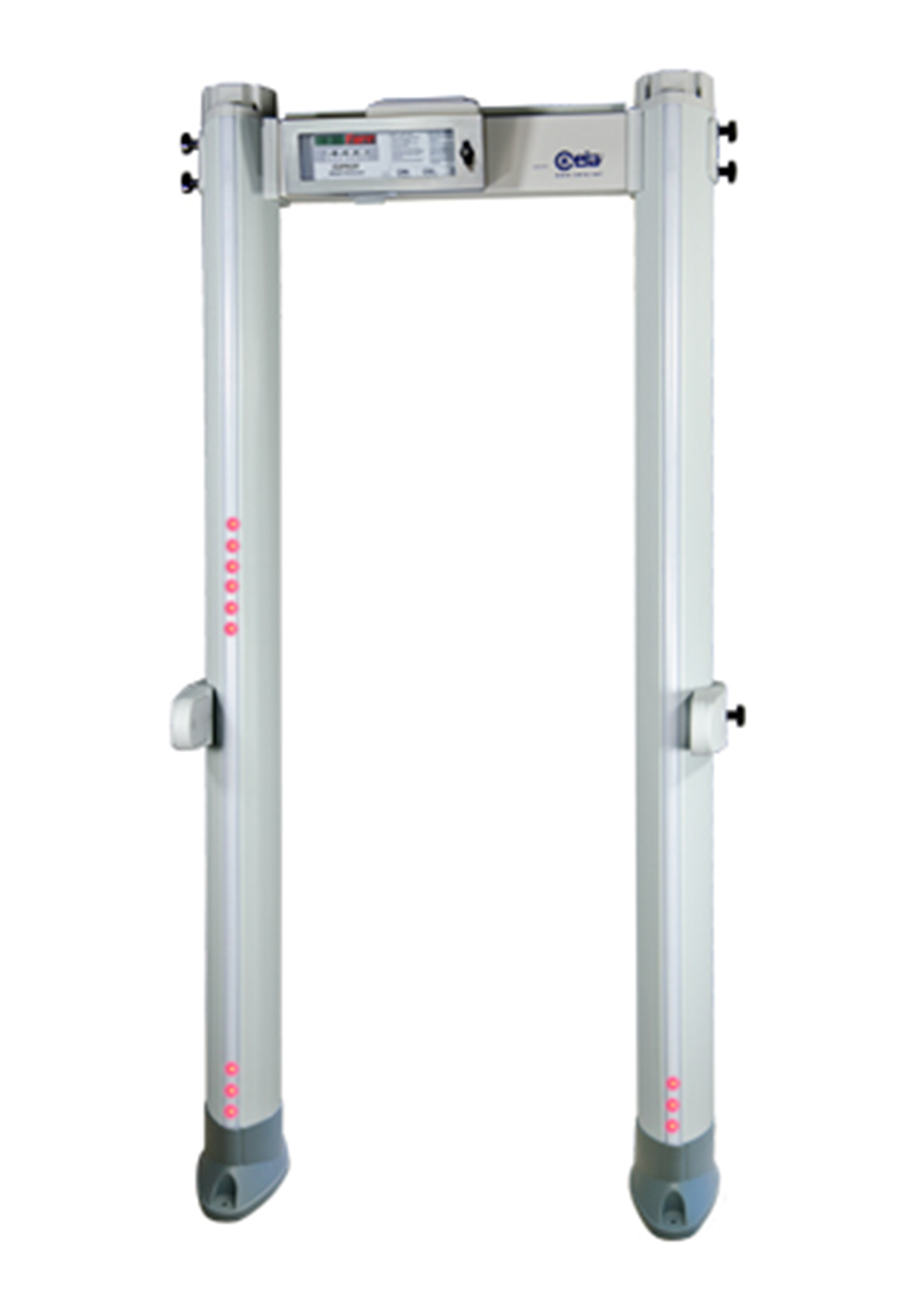

Multi Zone Localization

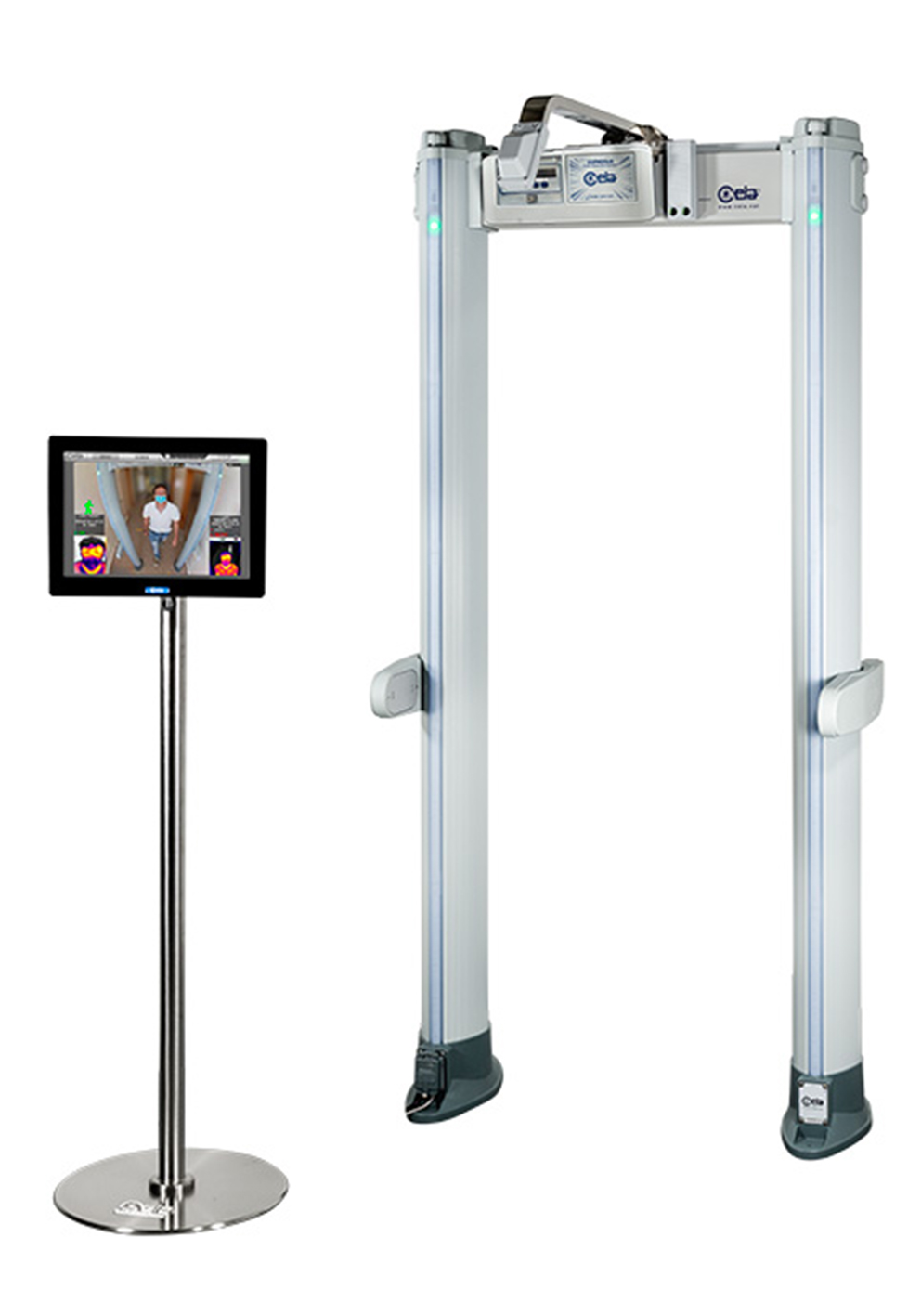

Integrated MDAR Camera System
Elliptic Heavy Duty Design
Integrated Connectivity
Benefits & Applications
Client Benefits
- High sensitivity detection of metallic threats in high security environments
- Precise multi zone localization for faster secondary inspection procedures
- Reduced nuisance alarms through advanced discrimination capabilities
- High throughput screening for airports, prisons, government facilities, and critical infrastructure
- Reliable long term operation with minimal maintenance requirements
- Flexible networking and remote management capabilities
- Robust elliptic structure suitable for intensive daily checkpoint operations
- Optional combined metal and radioactive substance screening within one portal system
Use Cases
- Airports and aviation security
- Government and diplomatic facilities
- Critical infrastructure protection
- Correctional facilities and prisons
- Border crossings and customs checkpoints
- Industrial and manufacturing facilities
- Event and venue security
- High security corporate environments
Integration & Compatibility
- Compatible with APSiM3Plus integrated web server and logger
- Supports MDNA management and synchronization platform
- Synchronization of employee profiles across multiple checkpoints
- Supports connection of up to 50 networked profiling detectors
- HTTPS TLS 1.2 secure browser based management
- Compatible with 1D and 2D barcode reader systems
Deployment Options
- Fixed indoor checkpoint installation
- Outdoor deployment version available with IP65 protection
- Multi lane synchronized installations without external cables
- Integration with X ray screening checkpoints
- Portable or permanent security screening configurations
Technical Specifications
- Detection Zones: 60 zones (20 vertical × 3 lateral)
- Threat Detection: Magnetic, non magnetic, and mixed alloy weapons
- Transit Speed: Up to 15 m/sec
- Reset Time: Down to 0.2 seconds

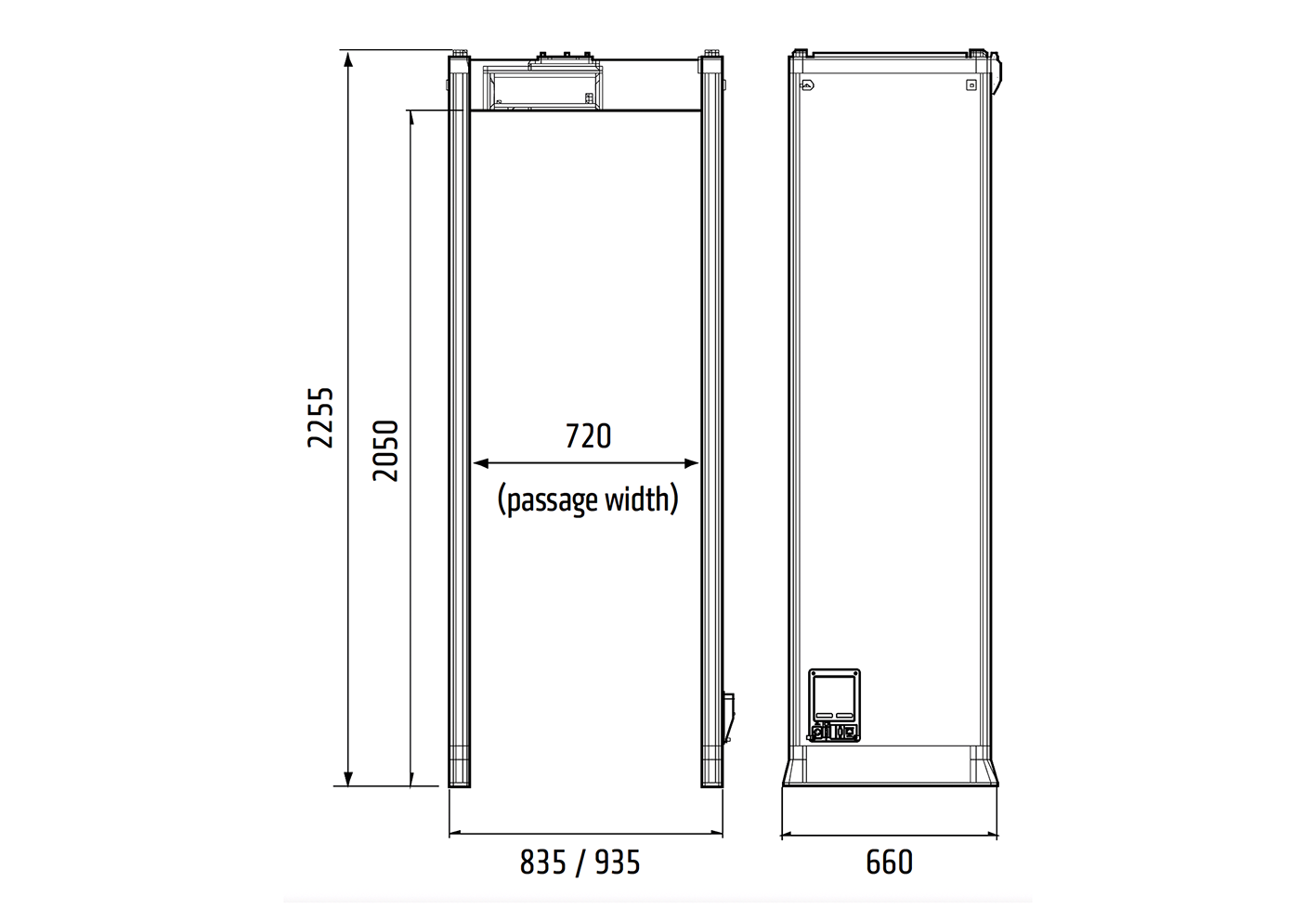

- Passage Width: 720 mm

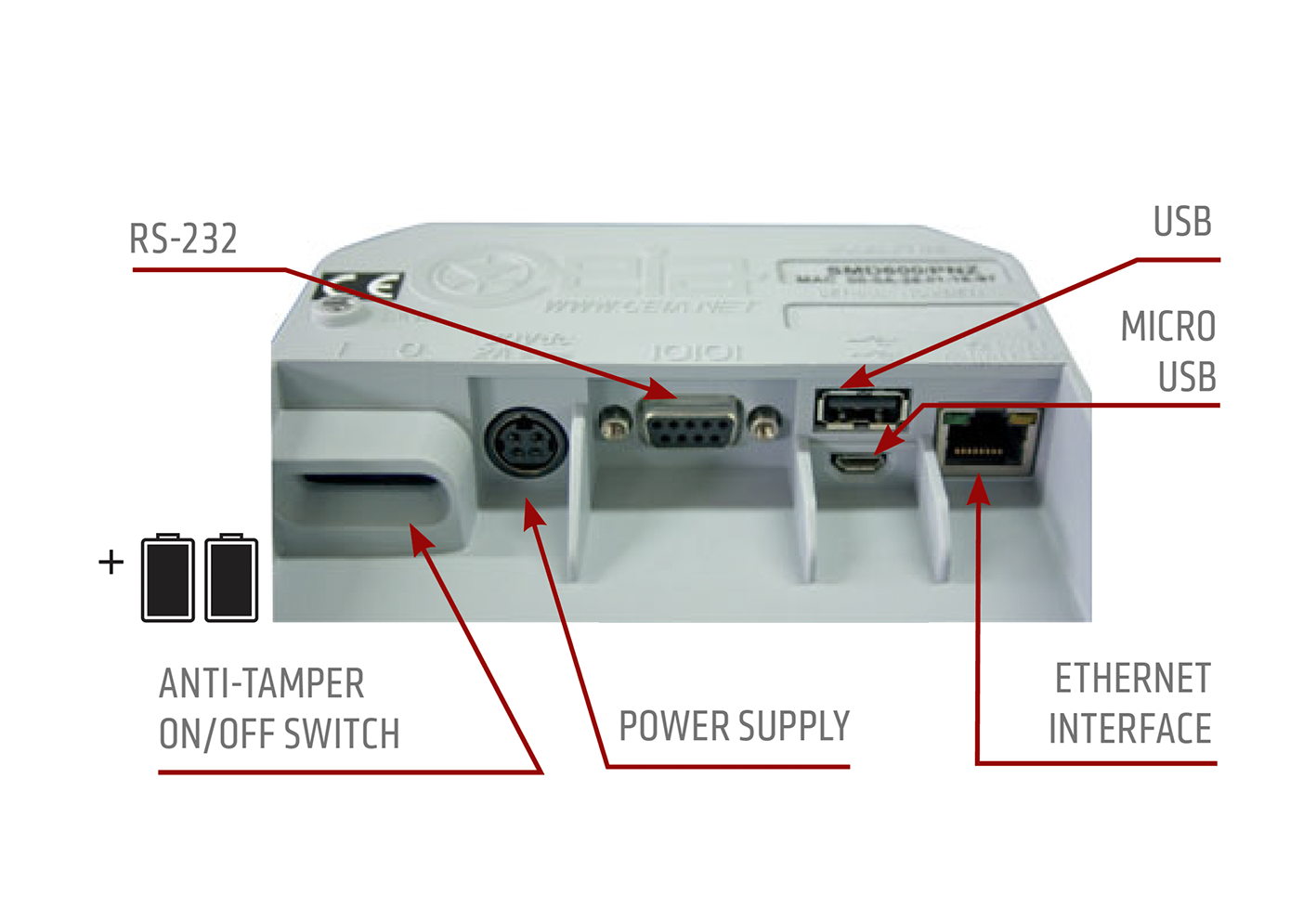

- Interfaces: RS 232, Bluetooth, Infrared
- Optional Interfaces: Wi Fi, Ethernet, USB
- Programming: Up to 50 built in security programs
- Power Supply: 100 to 240V AC, 47 to 63 Hz
- Operating Temperature: Minus 20°C to 70°C
- Protection: Outdoor IP65 version available
- Structure: Heavy duty elliptic compact panel design
- Optional Capability: Integrated radioactive material detection
CEIA Metal Detection Systems
The CEIA product range includes additional models such as SMD601 Plus, 02PN20, HIPE Plus, and 240CB, covering loss prevention, high security screening, and industrial metal detection applications.
