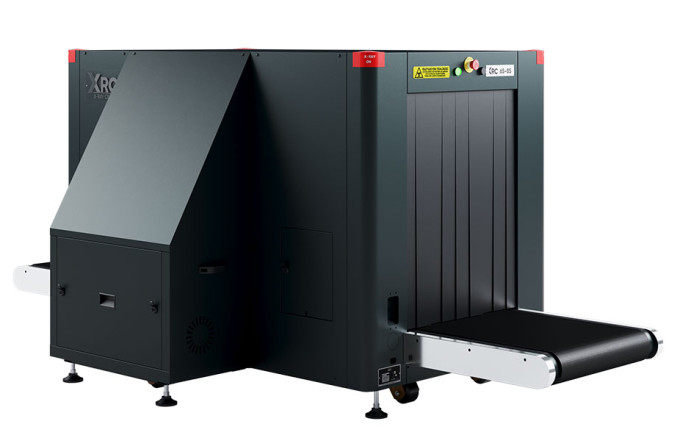

XRC 65-85
SMALL PARCEL AND BAGGAGE
On account of low conveyor unit, heavy loads can be easily and conveniently placed to this x-ray machine. XRC 65-85 facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate.
It provides unique image quality by showing the scanned organic, inorganic and mixed objects in different colors thanks to its multi-diode structure and quality in imaging of scanned objects. It is designed with the latest technology system to scan medium and large bags and packages.
It offers the ideal solution for locations where security screening is required like at high traffic checkpoints as city transportation (metro, ferry, train stations), customs border crossings, prisons, and courier depots, such as international logistics companies, goods acceptance points and etc.
Downloads
XRC 65-85 (english)
0.54MB
XRC 65-85 (german)
0.59MB
Download
XRC 65-85 (english)
Subscribe to download
Download
XRC 65-85 (english)
Download link sent to your email!
Download
XRC 65-85 (german)
Subscribe to download
Download
XRC 65-85 (german)
Download link sent to your email!
XRC 65-85
APPLICATION AREAS
FEATURES & SPECIFICATIONS
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN

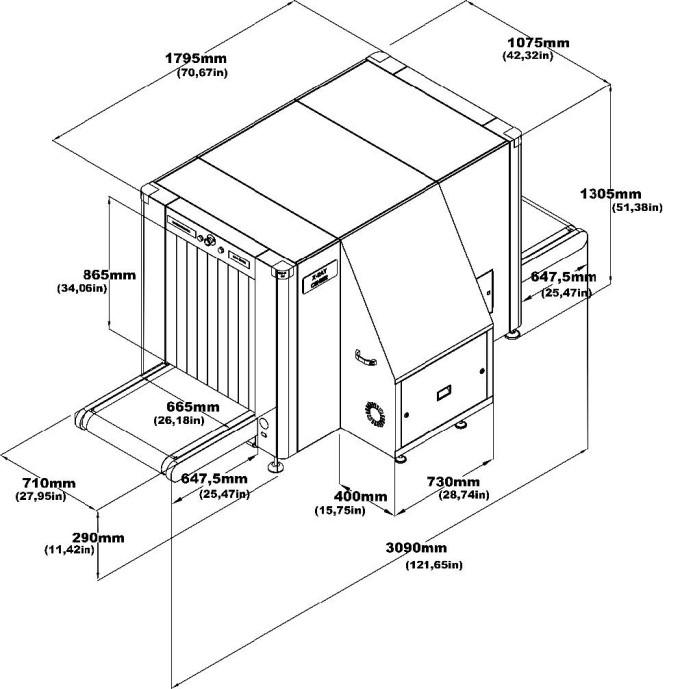

- TUNNEL SIZE: 665 mm x 865 mm
- DIMENSIONS: 3,090 mm x 1,305 mm x 1,475 mm
- APPROX. WEIGHT UNPACKED: ~760 kg
- CONVEYOR HEIGHT: 290 mm
- CONVEYOR LOAD CAPACITY: 200 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 37 mm guaranteed; 39 mm typical
- WIRE RESOLUTION: 38 AWG guaranteed; 40 AWG typical
- ANODE VOLTAGE: 170 kV, operating at 160 kV
- TUBE CURRENT: 1.0 mA
- BEAM DIRECTION: Vertically upward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
