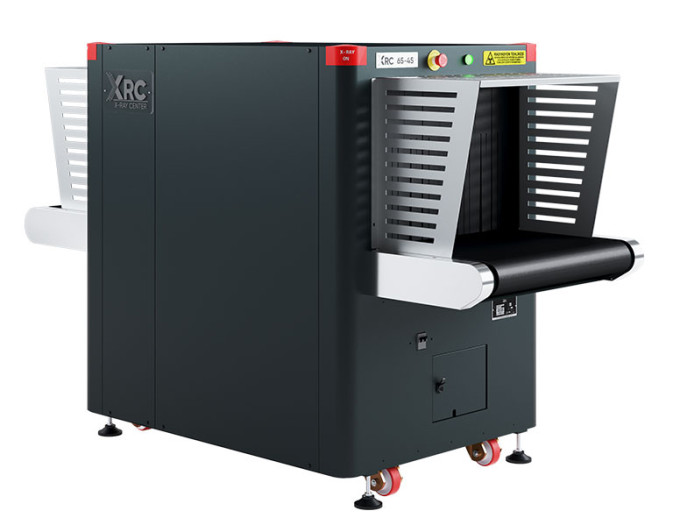

XRC 65-45

SMALL PARCEL AND BAGGAGE

The x-ray scanner designed with the latest technology system scans small handbags, packages parcels and cabin baggage in detail. XRC 65-45 facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate.



Thanks to its multi-diode structure and quality in imaging of scanned objects image is colored based on density and shows organic, inorganic and mixed materials in different tones and it is a preferred model for locations with limited operating space. Institutions ensure that packages are inspected in places where inspection is required, such as airports, customs border gates, police departments, offices, ministries, prisons, institutions, courts.

Downloads

XRC 65-45 (english)

0.50MB

XRC 65-45 (german)

0.50MB

XRC 65-45

APPLICATION AREAS

POLICE AND JUSTICE

AIRPORTS AND BORDER CROSSINGS

GOVERNMENT BUILDING

DISTRIBUTION CENTERS LOGISTICS HUBS

CUSTOMS BORDER CONTROL

CRITICAL INFRASTRUCTURE

FEATURES & SPECIFICATIONS

XRC 65-45
  • PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
  • DATE AND TIME DISPLAY
  • VIRTUAL THREAT IMAGE PROJECTION (TIP)
  • ORGANIC/INORGANIC THREAT ALARM OPERATOR
  • TRAINING PROGRAM (OTP)
  • UPS (FOR COMPUTER SUPPLY)
  • MULTI LANGUAGES
  • SELF DIAGNOSIS
  • GENERATOR TIMER AUTOMATIC STOP CONVEYOR
XRC 65-45
  • BARCODE READER SYSTEM
  • EXTERNAL CAMERA ARCHIVING
  • REMOTE VIEWING STATION
  • RECHECK STATION
  • NETWORK SUPERVISORY SYSTEM (NSS)
  • REMOTE ACCESS CONNECTION
  • SMART CARD LOGIN
XRC 65-45

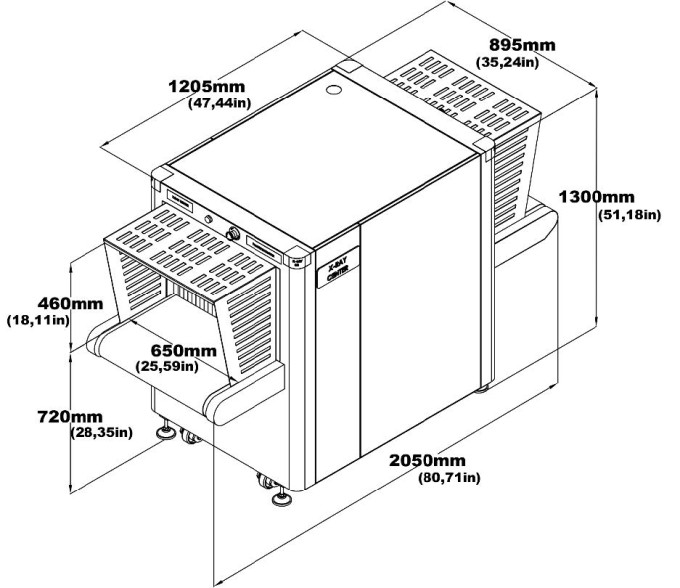

  • TUNNEL SIZE: 650 mm x 460 mm
  • DIMENSIONS: 2,050 mm x 1,300 mm x 895 mm
  • APPROX. WEIGHT UNPACKED: ~525 kg
  • CONVEYOR HEIGHT: 720 mm
  • CONVEYOR LOAD CAPACITY: 165 kg Evenly Distributed
  • SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
  • CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
  • STEEL PENETRATION: 37 mm guaranteed; 39 mm typical
  • WIRE RESOLUTION: 38 AWG guaranteed; 40 AWG typical
  • ANODE VOLTAGE: 170 kV, operating at 147 kV
  • TUBE CURRENT: 1.0 mA
  • BEAM DIRECTION: Vertically upward
  • ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
  • COOLING: Oil and forced air cooling
XRC 65-45
  • PROCESSOR: Intel® Core™ i5 (or superior)
  • MONITOR: 21.5” Flat (or superior)
  • MEMORY: 4 GB RAM (or superior)
  • VIDEO CARD: 2 GB (or superior)
  • HARD DRIVE: 1 TB (or superior)
  • USB PORT: 6 port (or superior)
  • OPERATING SYSTEM: Linux

MAIN FUNCTIONS OF

IMAGE POST-PROCESSING

High Penetration (HP)

Perfect View (Detail Enhancement) (PV)

Edge

Pseudo Color (PS)

Organic Materials (OM)

Inorganic Materials (IM)

Black & White View (B/W)

Inverted colours (IN)

PREVIOUS
NEXT

OPTIONAL ACCESSORIES

OPEN-CLOSED OPERATOR CONSOLE

ADJUSTABLE OPERATOR CONSOLE

I-STAND OPERATOR CONSOLE

21,5‘’- 27’’ FLAT MONITOR

INPUT / OUTPUT ROLLERS

INCLINED CONVEYOR

TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)

SEARCH TABLE

TEST KIT (STP/ASTM)
