XRC 50-30P
SMALL PARCEL AND BAGGAGE
XRC 50-30P x-ray device facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate and offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.
It is a preferred model for locations with limited operating space and it is an efficient and a powerful device for scanning small handbags, packages parcels and cabin baggage in detail. It provides the ideal solution for locations where security screening is required like courts, police departments, offices, shopping malls, prisons and hotels.
Downloads
XRC 50-30P (english)
0.44MB
XRC 50-30P (german)
0.44MB
Download
XRC 50-30P (english)
Subscribe to download
Download
XRC 50-30P (english)
Download link sent to your email!
Download
XRC 50-30P (german)
Subscribe to download
Download
XRC 50-30P (german)
Download link sent to your email!
XRC 50-30P
APPLICATION AREAS
FEATURES & SPECIFICATIONS
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN

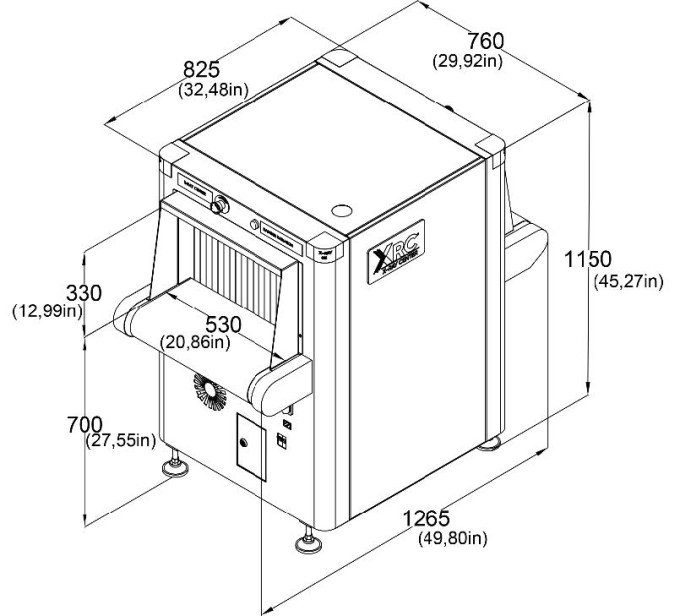

- TUNNEL SIZE: 530 mm x 330 mm
- DIMENSIONS: 1,265 mm x 1,150 mm x 760 mm
- APPROX. WEIGHT UNPACKED: ~355 kg
- CONVEYOR HEIGHT: 700 mm
- CONVEYOR LOAD CAPACITY: 165 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 37 mm guaranteed; 39 mm typical
- WIRE RESOLUTION: 38 AWG guaranteed; 40 AWG typical
- ANODE VOLTAGE: 170 kV, operating at 147 kV
- TUBE CURRENT: 0.7 mA
- BEAM DIRECTION: Vertically upward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
