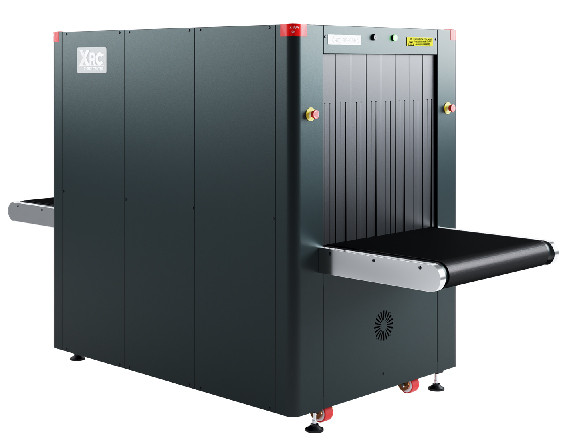

XRC 85-85HC
LARGE PARCEL AND FREIGHT
This x-ray baggage scanner facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. XRC 85-85HC offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects which is designed with the latest technology system to scan medium and large bags and packages.
Institutions ensure that packages are inspected in places where inspection is required, such as high traffic checkpoints, city transportation (metro, ferry, train stations), customs border crossings, prisons, and courier depots like international logistics companies, goods acceptance points and etc.
Downloads
XRC 85-85HC (english)
0.43MB
XRC 85-85HC (german)
0.44MB
Download
XRC 85-85HC (english)
Subscribe to download
Download
XRC 85-85HC (english)
Download link sent to your email!
Download
XRC 85-85HC (german)
Subscribe to download
Download
XRC 85-85HC (german)
Download link sent to your email!
XRC 85-85HC
APPLICATION AREAS
FEATURES & SPECIFICATIONS
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN
- TUNNEL SIZE: 850 mm x 850 mm

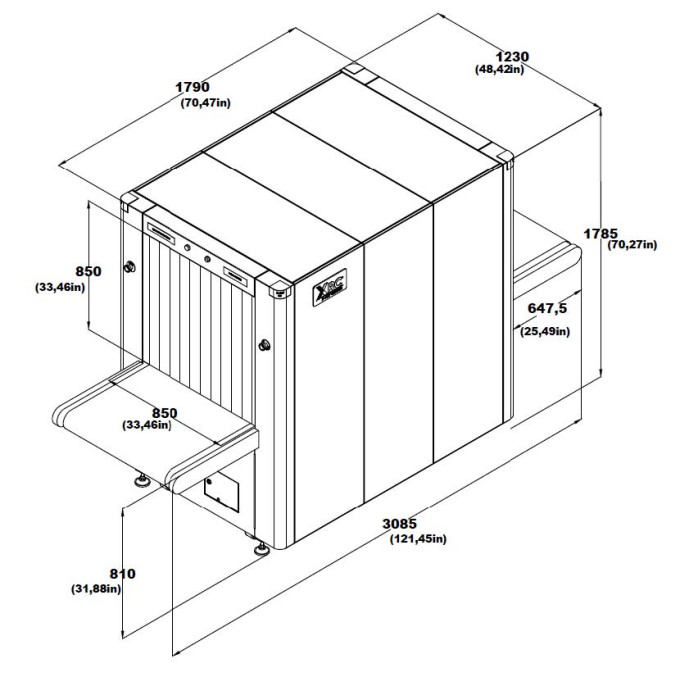

- DIMENSIONS: 3,085 mm x 1,785 mm x 1,230 mm
- APPROX. WEIGHT UNPACKED: ~1145 kg
- CONVEYOR HEIGHT: 810 mm
- CONVEYOR LOAD CAPACITY: 200 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 37 mm guaranteed; 39 mm typical
- WIRE RESOLUTION: 38 AWG guaranteed; 40 AWG typical
- ANODE VOLTAGE: 180 kV, operating at 165 kV
- TUBE CURRENT: 1.0 mA
- BEAM DIRECTION: Vertically downward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
