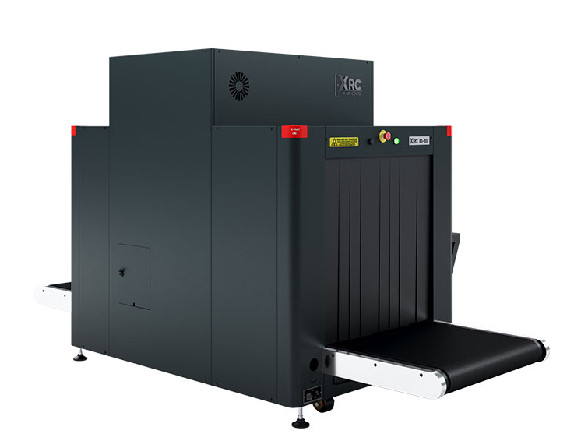

XRC 85-85
LARGE PARCEL AND FREIGHT
The XRC 85-85 x-ray machine facilitates the placement of heavy objects into the device with the help of low conveyor unit. It simplified the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It makes it extraordinarily easy to scan threats such as cutting tools, explosive narcotics and reduces the rate of error. It provides unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects. It is designed with the latest technology system to scan medium and large bags and packages.
This model x-ray device offers the ideal solution for locations where security screening is required like at high traffic checkpoints as city transportation (metro, ferry, train stations), customs border crossings, prisons, and courier depots, such as international logistics companies, goods acceptance points and etc.
Downloads
XRC 85-85 (english)
0.40MB
XRC 85-85 (german)
0.40MB
Download
XRC 85-85 (english)
Subscribe to download
Download
XRC 85-85 (english)
Download link sent to your email!
Download
XRC 85-85 (german)
Subscribe to download
Download
XRC 85-85 (german)
Download link sent to your email!
XRC 85-85
APPLICATION AREAS
FEATURES & SPECIFICATIONS
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN
- TUNNEL SIZE: 850 mm x 850 mm
- DIMENSIONS: 3,070 mm x 1,730 mm x 1,275 mm
- APPROX. WEIGHT UNPACKED: ~1,020 kg
- CONVEYOR HEIGHT: 335 mm
- CONVEYOR LOAD CAPACITY: 200 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 37 mm guaranteed; 39 mm typical
- WIRE RESOLUTION: 36 AWG guaranteed; 38 AWG typical
- ANODE VOLTAGE: 180 kV, operating at 160 kV
- TUBE CURRENT: 1.0 mA
- BEAM DIRECTION: Vertically downward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
