uniXSCAN UVMS
Relocatable Under Vehicle Monitoring System
The uniXSCAN Relocatable Under Vehicle Monitoring System (UVMS) is a mobile configuration of the UVMS PRO platform designed for temporary checkpoints and flexible security deployments. It provides the same automated high resolution undercarriage inspection capability without requiring permanent civil works.

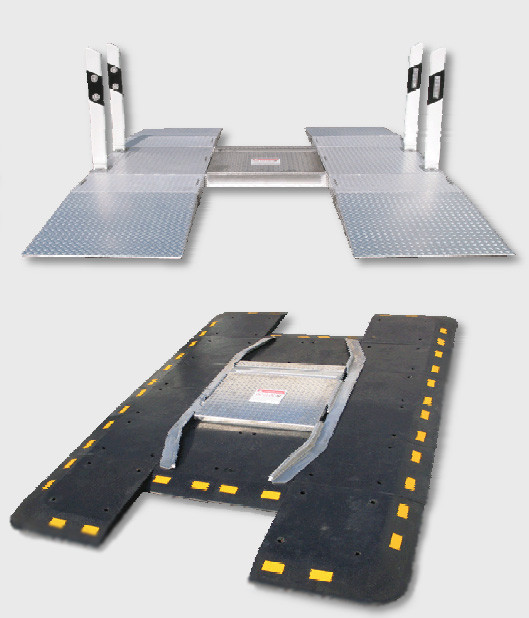

The relocatable system is available in two configurations:
- Rubber Pad Version – lightweight design for rapid deployment, fast assembly and disassembly, and easy transport. Suitable for customs and police mobile vehicle controls.
- Aluminum Ramp Version – robust ramp construction intended for high security and representative environments such as embassies, governmental buildings, and high security facilities.
Both configurations provide automated detection of weapons, explosives, drugs, contraband, and structural anomalies while maintaining efficient vehicle throughput. The system operates using induction loop triggering and integrates with surveillance systems, ANPR, and control room infrastructure when required.
Technical & Functional
Key Features
Relocatable UVMS
Mobile Rubber Pad Version
Mobile Aluminum Ramp Version

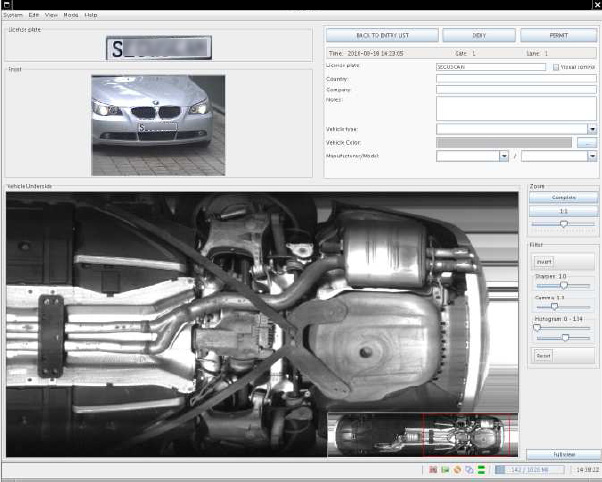

Operator Workstation Interface
Fast Assembly and Deployment

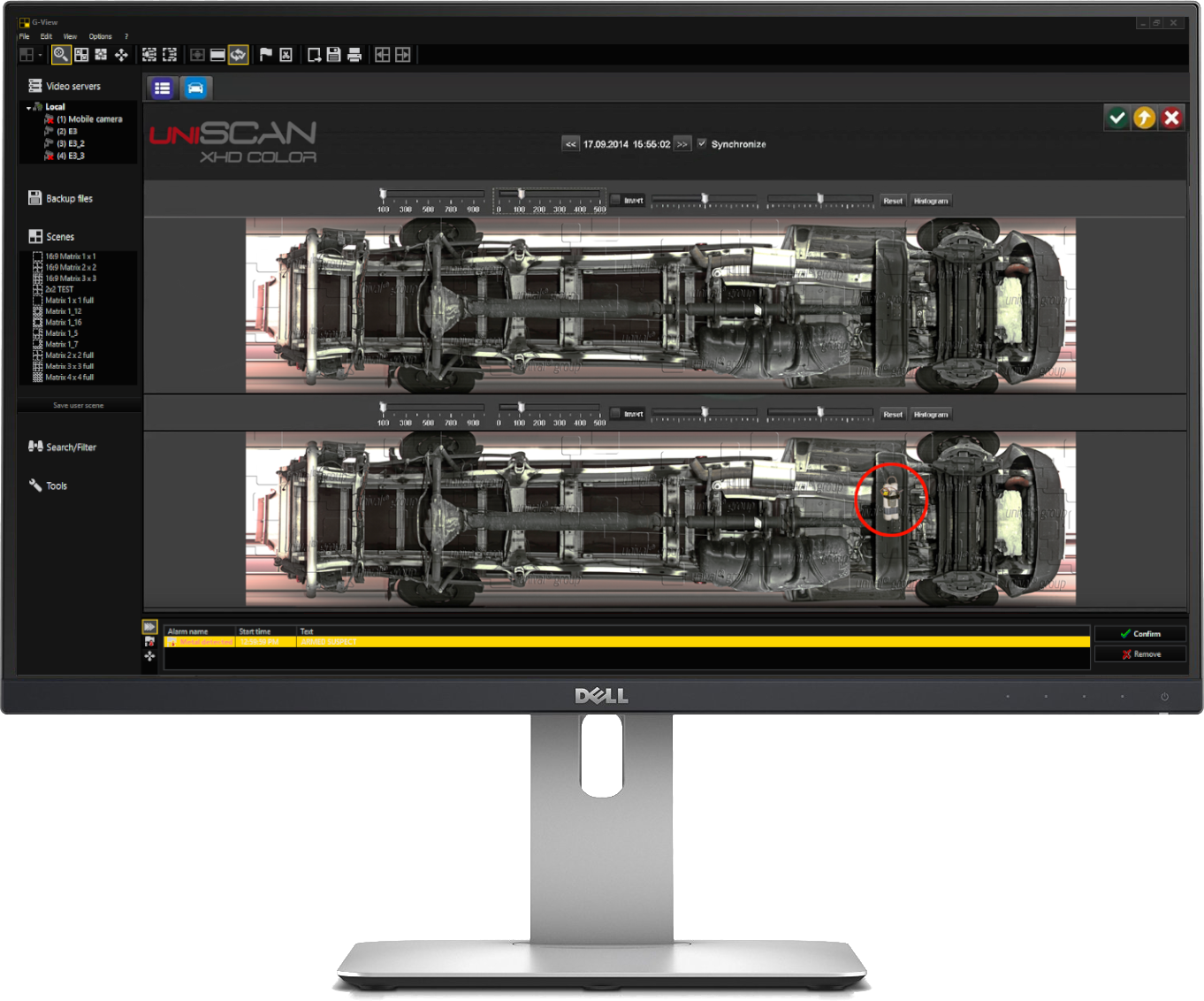

Automatic Underbody Comparison

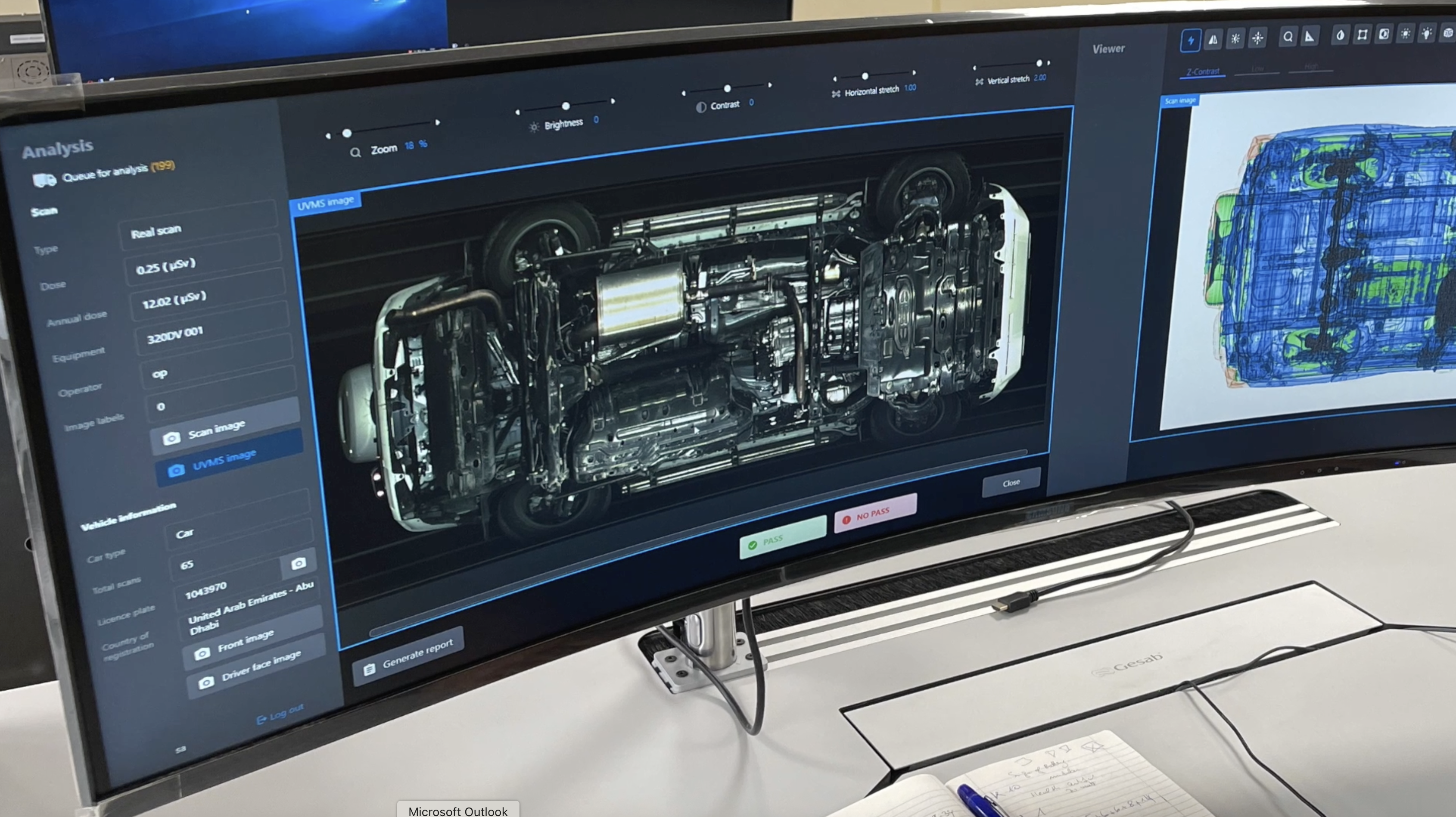

Advanced Inspection Interface
Benefits & Applications
Client Benefits
- Rapid setup for temporary checkpoints using rubber pads or aluminum ramps depending on the site,
- Supports mobile enforcement operations such as customs and police checks, with fast deployment and transport described for the rubber pad version
- Improved inspection effectiveness in temporary operations through automatic comparison, zoom, and high resolution color imaging
Use Cases
- Mobile vehicle controls by police,
- Border controls and checkpoint scenarios,
- Security checks at sports events or other large scale events,
- Temporary protection deployments for embassies, governmental buildings, and high security hotels,
- Targeted vehicle screening in large public parking areas such as shopping malls or commercial centers during heightened security situations
Integration & Compatibility
- System structure includes scanning unit, workstation, traffic lights, and a light barrier,
- Optional integrations include front end image capture and ANPR,
- Network operation via internal security network enables multi-unit deployments with shared database access across stations
Deployment Options

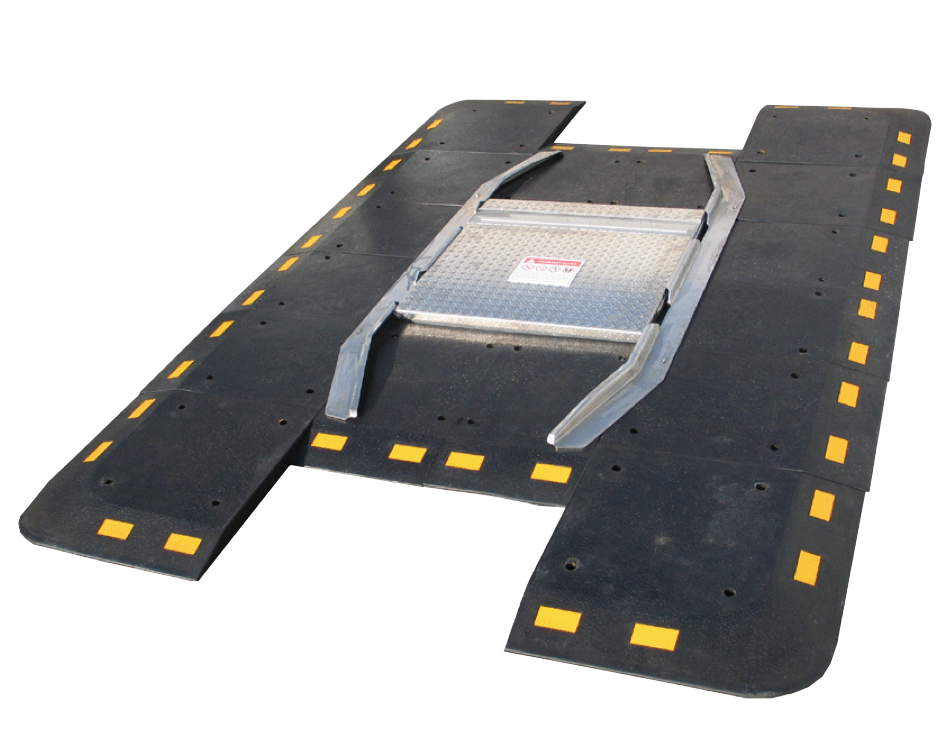

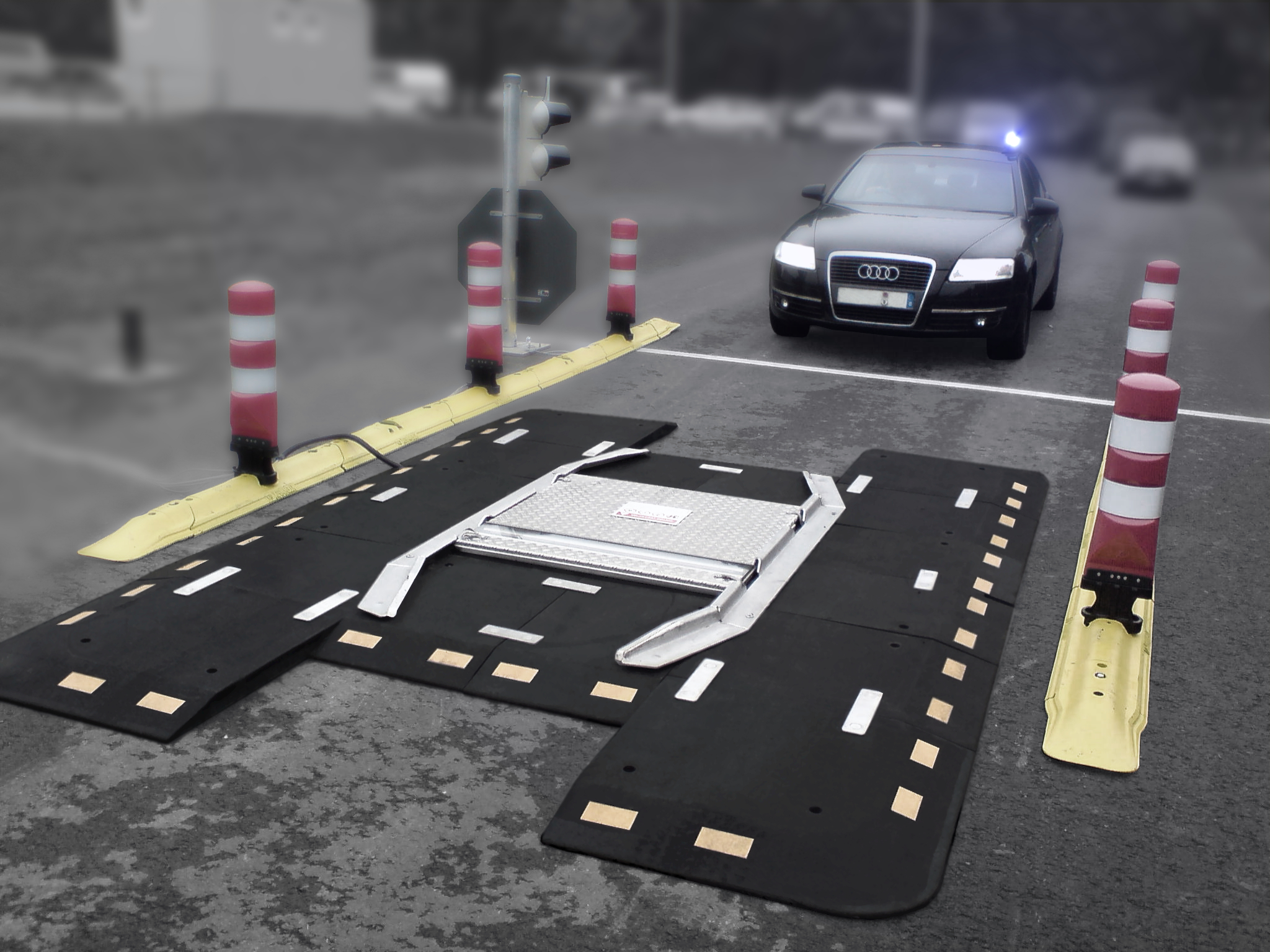

Relocatable rubber pad version
- Ideal for mobile checks (customs or federal police)
- Fast deployment, flexible applications, rubber pads for lighter weight, fast assembly and disassembly, uncomplicated transport.

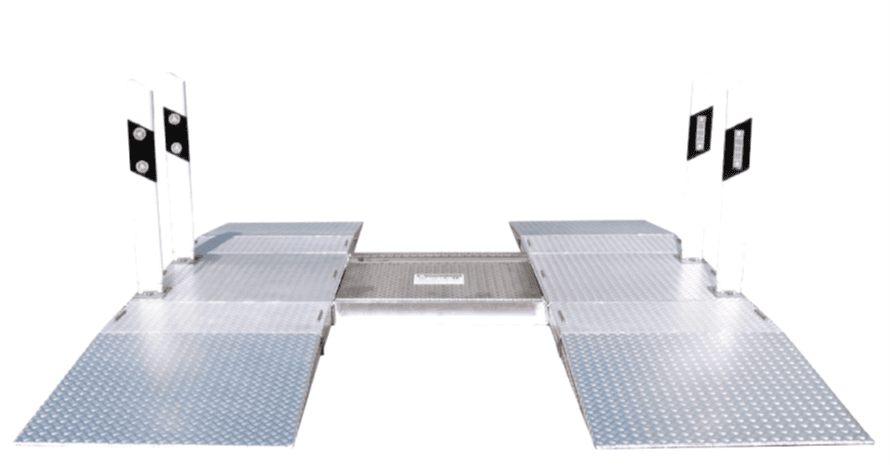

Relocatable aluminum ramp version
- Mobile application with robust aluminum ramps,
- Intended for high security applications in design environments such as embassies, governmental buildings, and 5 star hotels
Technical Specifications
- Scanning unit height: 11 cm (4.3 inches)
- Camera and optics: Line scan camera with mirror
- Lighting: Infrared LED lighting unit plus high power LED illumination greater than 100 W
- Resolution: Average car about 10 Mpx, maximum up to 100 Mpx
- Field of view: Full coverage including door sills and running boards
- Operating temperature: Minus 20 to plus 65 degrees Celsius
- Max scanning speed: 40 km per hour (higher optionally available depending on induction loop position)
- Mobile configurations: Rubber pad version, aluminum ramp version
