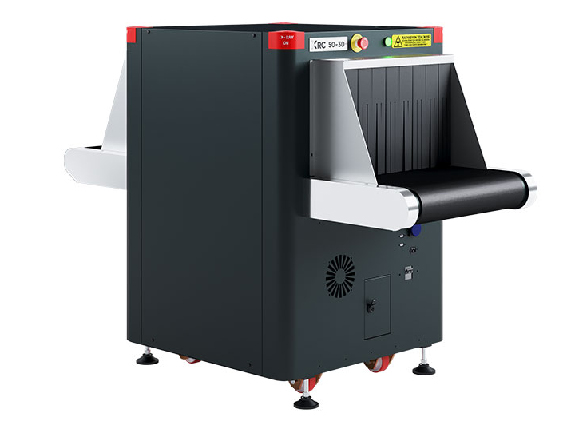

XRC 50-30 (170kV)
SMALL PARCEL AND BAGGAGE
The XRC 50-30 (170kV) is a compact x ray baggage inspection system designed for detailed screening of small handbags, parcels, packages, and cabin baggage. Equipped with a 170 kV generator operating at 147 kV and a multi diode imaging structure, it provides strong penetration capability and clear material discrimination.
The system color codes scanned objects based on density and differentiates organic, inorganic, and mixed materials to support identification of potentially threatening items such as cutting tools, explosives, and narcotics. Its compact footprint makes it suitable for facilities with limited operating space requiring reliable security screening.
Key Features
XRC 50-30 (170kV)
Compact 170 kV X-Ray Screening System
Multi-Energy Threat Visualization
High Penetration Small Baggage Scanner
Compact System Dimensions
Benefits & Applications
Client Benefits
- Enhanced Penetration Performance: 170 kV generator enables inspection of dense and complex baggage contents.
- Improved Threat Identification: Multi energy color imaging supports clearer differentiation of materials.
- Reduced Operator Error: Integrated alarms, image tools, and training programs support consistent screening decisions.
- Compact Installation: Designed for sites with limited floor space.
- Operational Flexibility: Suitable for continuous screening of small baggage and parcels.
- Network Integration Ready: Supports supervisory systems and remote access.
Use Cases
- Police and Justice Facilities: Supports secure inspection of small baggage and parcels in controlled law enforcement environments.
- Airports and Border Crossings: Enables reliable screening of cabin baggage and small parcels at passenger checkpoints.
- Government Buildings: Provides controlled entry screening for visitors and staff in administrative facilities.
- Distribution Centers and Logistics Hubs: Screens parcels within supply chain operations to detect prohibited items.
- Customs Inspection Points: Assists in examining baggage and shipments for concealed contraband.
- Critical Infrastructure Sites: Supports personnel and parcel screening in protected operational facilities.
Integration & Compatibility
- Network Supervisory System (NSS): Centralized system monitoring capability.
- Remote Viewing Station: Secondary inspection and oversight functionality.
- Remote Access Connection: Supports diagnostics and service access.
- Barcode Reader System: Enables workflow and parcel tracking integration.
- Smart Card Login: Operator access control.
- External Camera Archiving: Visual record integration capability.
- Optional TSA / ECAC Certified Configurations: Available upon request.
Deployment Options
- Installation Type: Floor mounted conveyor based x ray inspection system.
- Power Requirements: 110/220 V AC ±10%, 50/60 Hz, 5A maximum.
- Operating Environment: Indoor installation, operating temperature 0°C to 40°C.
- Cooling System: Oil and forced air cooling.
- Optional Accessories: Tray return system, inclined conveyor, external UPS, operator console configurations, radiation meter, protective cover.

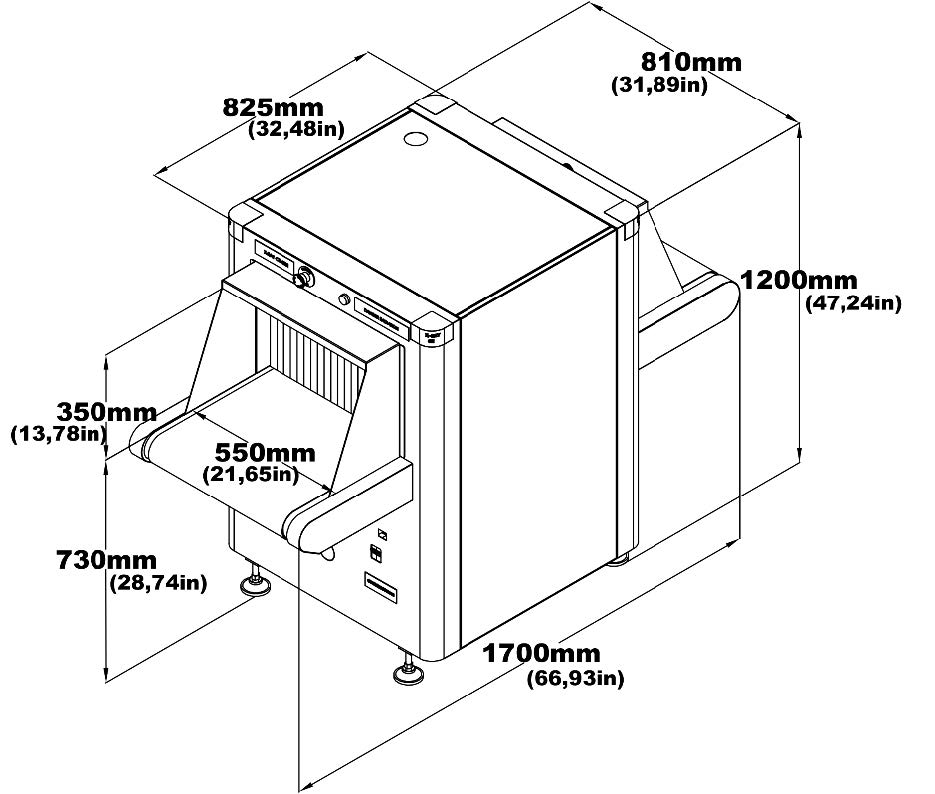

Technical Specifications
- Tunnel Size: 550 mm x 350 mm
- System Dimensions: 1,700 mm x 1,200 mm x 810 mm
- Approx. Weight: ~415 kg
- Conveyor Height: 730 mm
- Conveyor Load Capacity: 165 kg evenly distributed
- Generator Voltage: 170 kV (147 kV operating)
- Tube Current: 0.7 mA
- Steel Penetration: 37 mm guaranteed
- Wire Resolution: 38 AWG guaranteed
- Beam Direction: Vertically upward
- Article Separation: Low Z, Medium Z, High Z (0.5 Z accuracy)
- Conveyor Speed: 0.20 m/sec forward or reverse
- Compliance: CE, FCC, IEC
- Radiation Level: Max 0.1 mR/hour exterior panel exposure
The XRC 50-30 (170kV)
Product Family

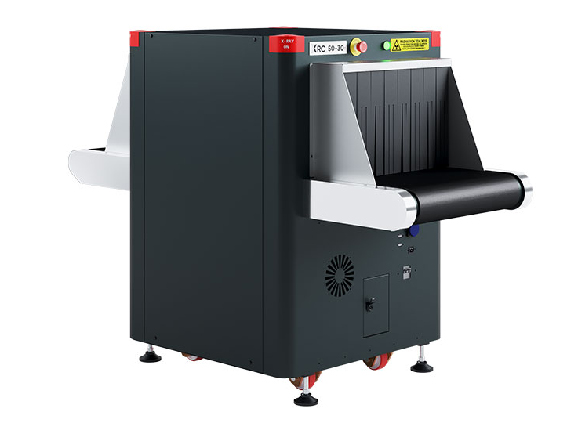

XRC 50-30 (100kV)
The XRC 50-30 (100kV) is a compact x ray baggage scanner designed for detailed inspection of small handbags, parcels, packages, and cabin baggage. Equipped with a 100 kV generator and multi diode imaging structure, it provides clear density based color imaging and material discrimination to support identification of potentially threatening objects such as cutting tools, explosives, and narcotics. Its space efficient design makes it suitable for courts, police facilities, government buildings, shopping malls, prisons, and hotels.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator
XRC 50-30 P
XRC 50-30P x-ray device facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate and offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator
XRC 50-30 SE
The XRC 50-30SE is one of the smallest tunnel sizes in the XRC baggage and parcel product range, featuring single-energy (SE) diode array technology. It's specifically designed for locations with limited operating space, providing excellent image quality for detecting inorganic threats while maintaining economical operation. The system is ideal for scanning small handbags, packages, parcels, and cabin baggage in detail.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator

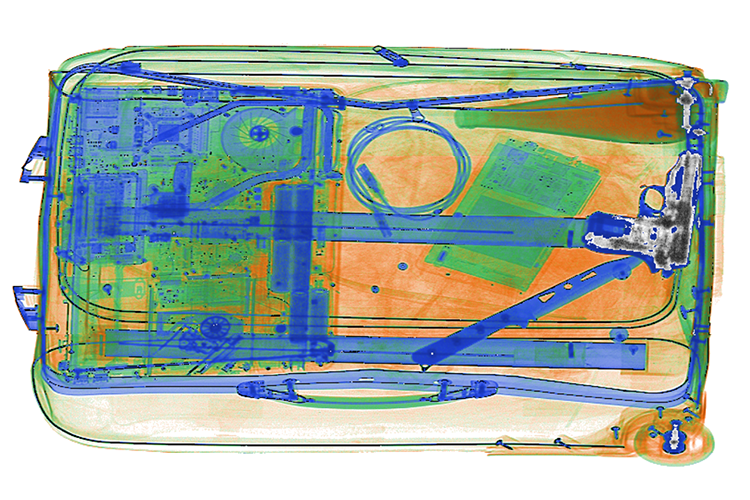

MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
