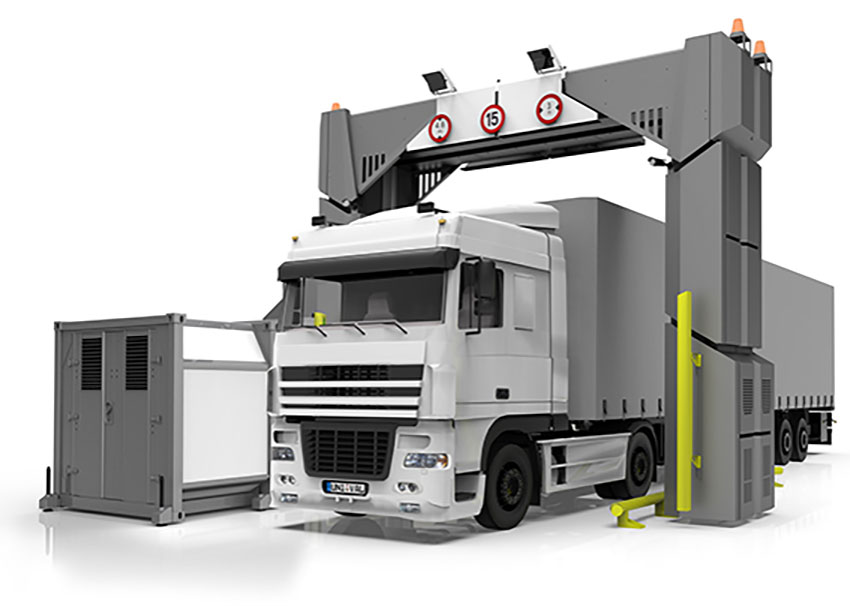

DTP 7500-320LV | TRUCK & CARGO SCANNER


The DTP 7500-320LV is a state-of-the-art 7.5 MeV / 320 kV lateral view X-ray scanner for the complete inspection of trucks, containers, cargo & occupied passenger vehicle, designed with innovative “drive-through” technology.

The DTP 7500-320LV has a separate cabin scan with a 320 kV X-ray generator, which makes scanning the cabin health safe for the truck driver while prohibiting the smuggling of threats and contrabands in the driver’s cabin itself.


FEATURES & BENEFITS


unival group | SMALL FOOTPRINT

SMALL FOOTPRINT
The deployment of the DTP 7500/320LV requires a relatively small ground surface. The Operator’s workplace can be installed up to 100 meters away from the inspection portal.


unival group | SEPERATE CABIN SCAN

SEPARATE CABIN SCAN
The DTP 7500/320LV provides high X-ray images of the cabin with lower dosage, thus reducing the radiation exposure. The cabin scan is done with full material discrimination.


7+1 COLOR MATERIAL CODING

7+1 COLOR MATERIAL CODING
The DTP 7500/320LV provides either classic (3+1) or advanced (7+1) material discrimination, for market leading threat detection.


unival group | HIGH RELIABILITY

HIGH RELIABILITY
The DTP 7500/320LV is designed for long-time outside operation and withstands even harshest environmental conditions.


unival group | SAFE FOR TRUCK DRIVER

SAFE FOR TRUCK DRIVER
With an X-ray radiation does rate of less than 0.25µSv per screen the DTP 7500/320LV is completely safe for the truck driver.


unival group | COMPLIANT TO ANSI

COMPLIANT TO ANSI 43.17-2009
The DTP 7500/320LV is compliant to the American ANSI 43.17-2009 standard for general people screening.


unival group | HIGH IMAGE QUALITY

HIGH IMAGE QUALITY
The DTP 7500/320LV provides clear and high-quality images of both the cargo compartment and the driver cabin, which help the operator to locate any contraband and threat object easily.


unival group | HIGHEST STEEL PENETRATION

HIGHEST STEEL PENETRATION
The DTP 7500/320LV provides a high steel penetration of up to 350 mm (cargo bay) and 60 mm for the driver cabin, which helps to see through dense amounts of steel.


unival group | HIGH SCREENING RATE

HIGH SCREENING RATE
The DTP 7500/320LV can screen vehicles with a speed up to 15 km/h and can screen 120 and more vehicles per hour (not including analysis time).


unival group | PROFESSIONAL GEUTEBRÜCK VIDEO SECURITY

PROFESSIONAL GEUTEBRÜCK VIDEO SECURITY
unival provides professional video security upgrade together with Geutebrück, which enhances the complete system with professional alarm management and video cameras.


unival group | ADVANCED ALARM MANAGEMENT WITH G-SIM

ADVANCED ALARM MANAGEMENT
WITH G-SIM (OPTIONAL)
G-SIM by GEUTEBRÜCK handles all relevant alarm processes and gives full control of all systems from the operator cabin.


unival group | REMOTE SYSTEM MONITORING & CENTRALIZATION

REMOTE SYSTEM MONITORING & CENTRALIZATION
unival offers completely remote operator and system monitoring, providing full health status and recording of all operational
