XWJ2-V | VEHICLE MOUNTED JAMMING SYSTEM
NEW XWJ2-V
RACK-MOUNTED JAMMER

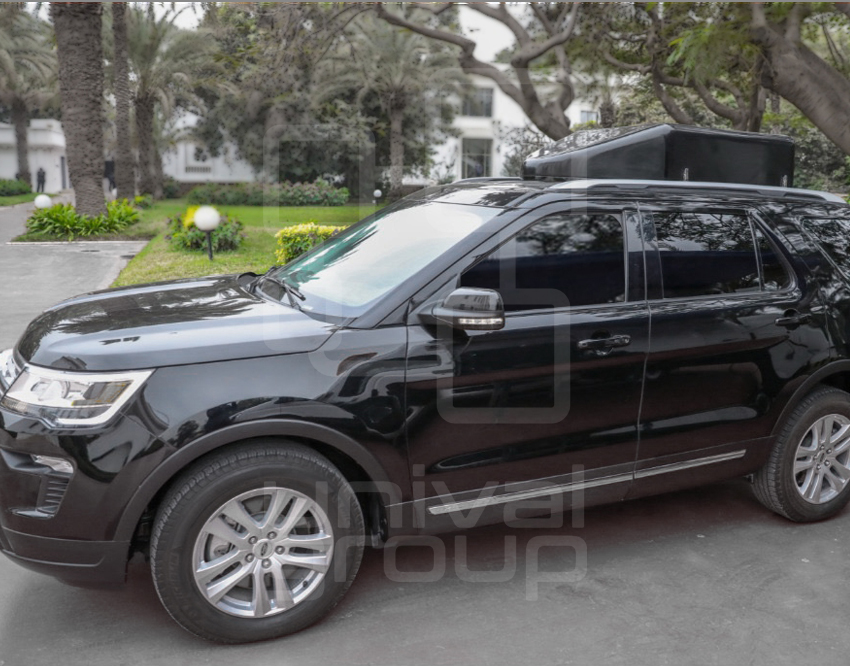

XWJ2-V (vehicle mounted for convoy protection)
MODULAR DESIGN WITH
RACK INSERTS FOR VEHICLE INTEGRATION
The voltage regulator provides constant 28 V to the XWJ2-V without any over- or under current peaks.
We currently deliver 3 versions, XWJ2-V (vehicle mounted for convoy protection), XWJ2-S (stationary system for a wide range of applications from cUAS to perimeter) and XWJ2-P (special prison version).
Gone are the days of barrage and useless wideband jamming with lots of noise and interference in the frequency bands. With the XWJ2 series a highly precise and much more directed use of jamming is possible in order to provide precise protection of our clients against C-IEDs, drones and unwanted communication.
FEATURES & BENEFITS​
SMART DIGITAL JAMMING SYSTEM
Fully engineered and manufactured in Germany. Freely and individually programmable for multiple start/ stop frequencies, jamming modes, output power, modulation & other parameters for maximum jamming signal performance and efficiency.
HIGH POWER JAMMING
The XWJ2 is designed for maximum efficiency and can suppress frequency bands with a maximum performance of up to 2,000 Watt.
PRE-PROGRAMMED JAMMING PROFILES
The XWJ2 can be pre-programmed with up to 50 different jamming profiles to react to different jamming scenarios.
INTUITIVE PROGRAMMING SOFTWARE
The XWJ2 JAMMING SOFTWARE provides a clear GUI with automatic setup algorithms. User-friendly through automatic jamming performance optimization.
SPECIAL POWER SUPPLY SYSTEM
A special power supply system has been developed for the XWJ2-V, with powerful rechargeable batteries and a reliable battery management system including voltage regulation vs. unstable (second) alternator solutions.
REAL-TIME STATUS MONITORING
The XWJ2-V provides real-time temperature and status monitoring, in order to protect the systems.
FULL FREQUENCY JAMMING
The XWJ2-V is a wideband jamming system for full frequency jamming, starting from 20 MHz up to 6,000 MHz, with band-selective amplifiers for the different threat frequencies.,
VERSATILE JAMMING MODES
The XWJ2-V uses various individually programmable jamming modes to counter frequencies, such as Sweep, Barrage, Spot, Hopping, Band-selective, Channel raster and others.
SPECIAL JAMMING ANTENNAS
The XWJ2-V comes with a special set of powerful directional and/ or omni-directional antennas, which are NATO standard compliant.
MODULAR SYSTEM
The XWJ2-V consists of different jamming modules and can be therefore easily exchanged, scaled and adapted according to mission parameters and for maintenance reasons. Upgradeable & future proof.
CERTIFIED VEHICLE SHIELDING
The whole base vehicle is shielded with certified EMR/EMF special foil, in order to provide maximum radiation safety to vehicle driver and operators.
5G READY
The XWJ2-V is 5G ready and can be upgraded to counter 5G frequency transmissions.
